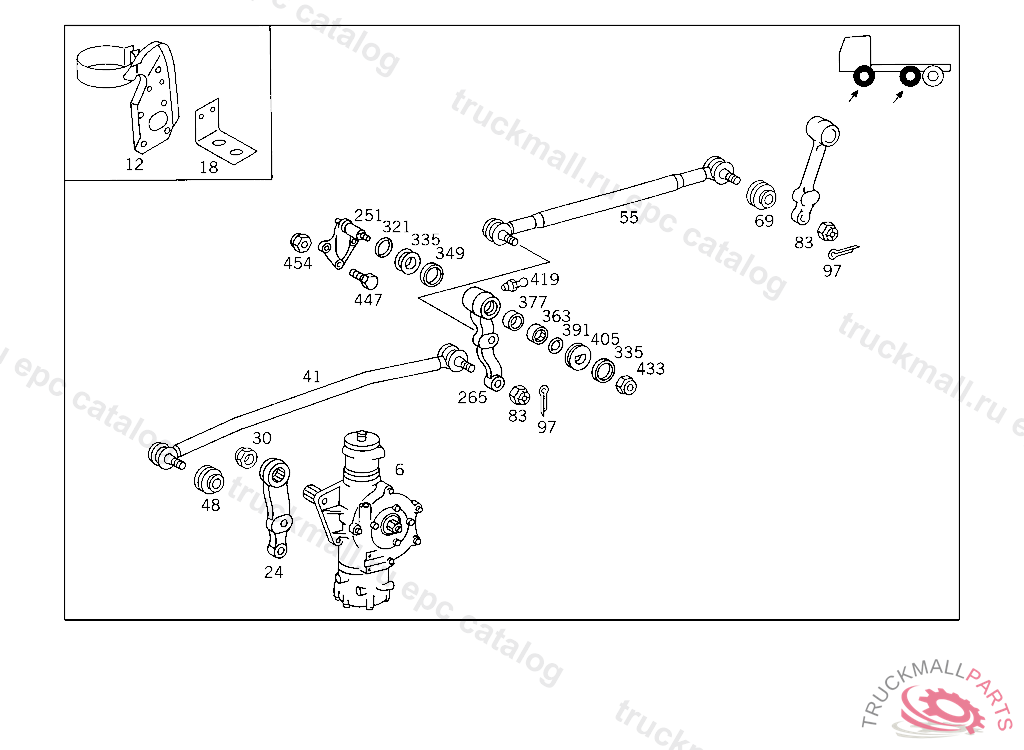

Поз.
Артикул
Описание
6
STEERING BOX ASSEMBLY FOR BREAK-DOWN,SEE UNIT STANDARD VERSIONMODEL: 765.300, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
12
BRACKET OIL TANK
18
BRACKET OIL TANK
24
PITMAN ARM
30
NUT PITMAN ARM TO STEERING BOX ASSEMBLY,5 386585
41
DRAG LINK FROM PITMAN ARM TO STEERING SUPPORT I EHRENREICH
41
DRAG LINK FROM PITMAN ARM TO STEERING SUPPORT I LEMFOERDER
48
BOOT DRAG LINK
55
DRAG LINK FROM STEERING SUPPORT I TO STEERING SUPPORT II, COMPONENT PARTS NOT AVAILABLE
69
BOOT DRAG LINK
83
NUT DRAG LINK TO LEVER
97
COTTER PIN DRAG LINK TO LEVER
251
STEERING SUPPORTI
265
STEERING INTERMEDIATE ARMI
321
SEAL RING INSIDE TO 622 463 01 10
335
SEAL RING INSIDE AND OUTSIDE TO 622 463 01 10
349
THRUST WASHER , Replaced By: A6574630162
363
NEEDLE BEARING INSIDE AND OUTSIDE
377
SPACER TUBE INSIDE
377
SPACER TUBE STEERING INTERMEDIATE ARM BEARING TO 622 461 00 40
391
SEAL RING OUTSIDE TO 622 463 01 10
391
SEAL RING , Replaced By: A0169973648
405
THRUST WASHER , Replaced By: A6574630062
419
GREASE NIPPLE , Replaced By: N071412008102
419
GREASE NIPPLE
433
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
433
NUT , Replaced By: N910113018004
447
SCREW , Replaced By: N308676016006
447
SCREW STEERING BOX ASSEMBLY TO STEERING SUPPORT
454
NUT CONSOLE TO SUPPORT
454
NUT , Replaced By: N910113016001
