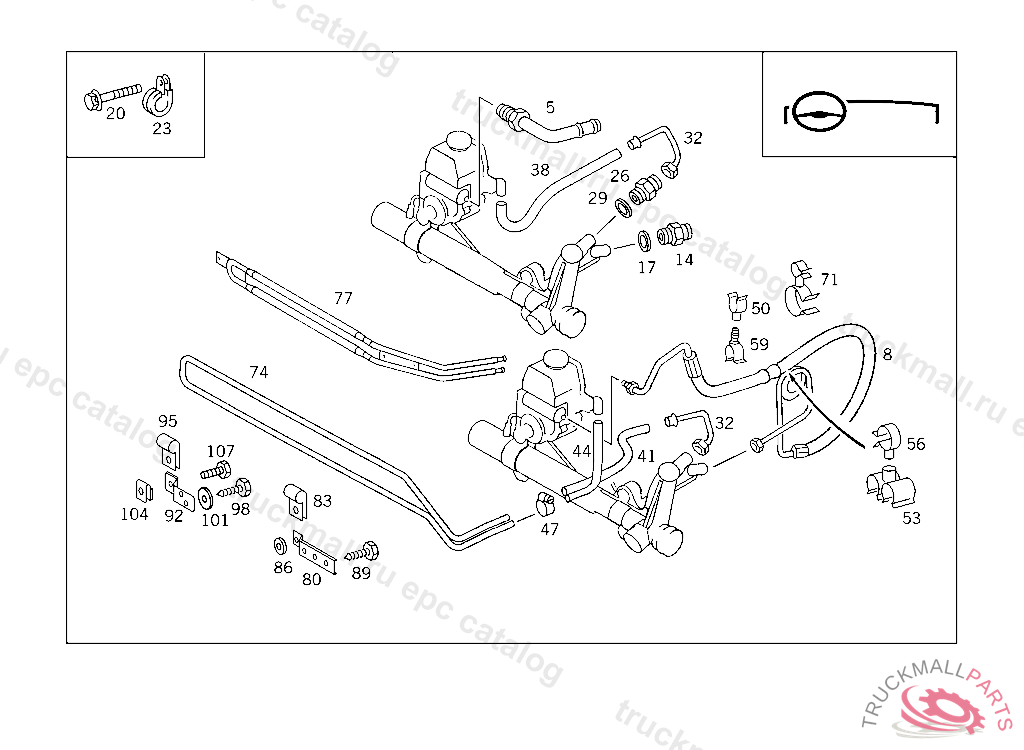

Поз.
Артикул
Описание
5
8
8
HOSE FROM HYDRAULIC PUMP TO STEERING GEAR
14
FITTING HOSE TO STEERING
17
SEALING RING. SEAL RING ENGINE BREATHING
20
SCREW STARTING CABLE TO ENGINE
20
SCREW , Replaced By: N000000001116
23
CLAMP PIPE ON FAN SHROUD
26
FITTING. SCREW CONNECTION RETURN LINE TO STEERING
29
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
32
LINE FROM HYDRAULIC PUMP TO STEERING GEAR
32
32
38
HOSE RADIATOR, ORDER BY THE METER
41
HOSE RADIATOR, ORDER BY THE METER
44
HOSE RADIATOR, ORDER BY THE METER
47
HOSE CLAMP FUEL LINE TO SENDER UNIT
50
CLAMP , Replaced By: A0005465143
53
CLAMP RETURN LINE TO CLUTCH HYDRAULIC LINE
56
HOSE BRACKET. LOOM TIE
56
CLAMP LINE MOUNTING
59
CLAMP , Replaced By: A6171870190
59
CLAMP , Replaced By: A0005465143
71
CLAMP
74
74
77
92
BRACKET
92
BRACKET COOLING PIPE TO RADIATOR
95
CLAMP14/15
98
SHEET METAL SCREW VALVE TO WINDOW SILL
101
WASHER COMPRESSED AIR LINE TO BRACKET
101
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
104
LOCK COVERING,LEFT,ON RADIATOR
104
NUT RETAINER
107
SCREW PUMP TO BRACKET
