Главная
›
Mercedes
›
VAN
›
SPRINTER 210 D,212 D
›
902.411
›

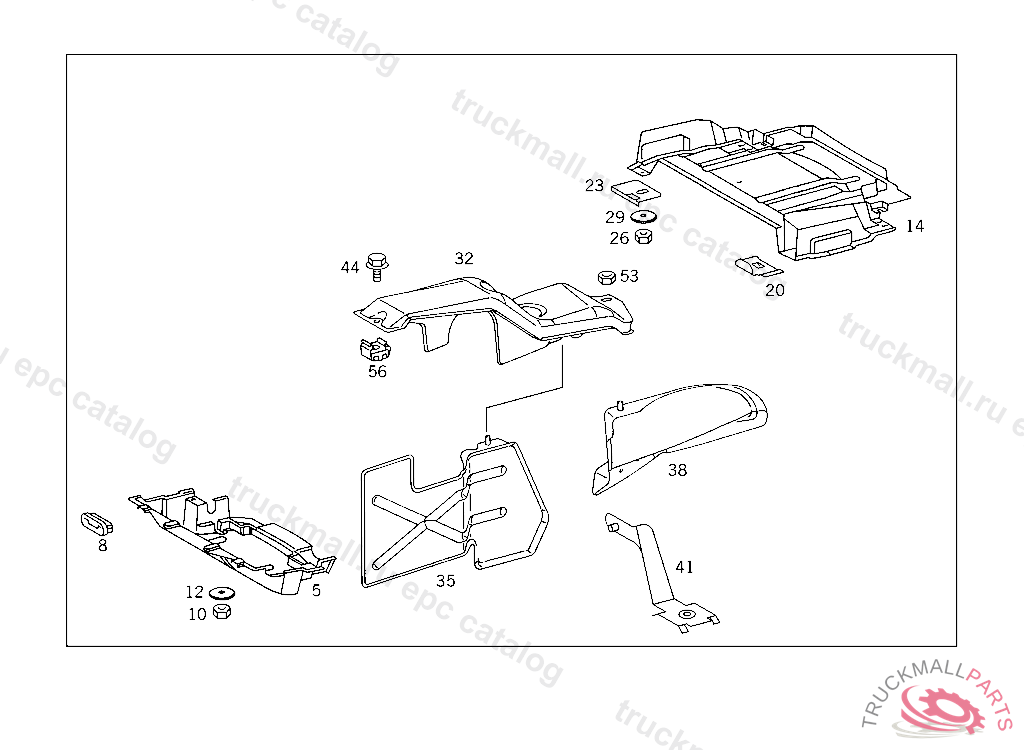

52 SHEET METAL / AIR INTAKE
›
290 ENGINE COMPARTMENT PANELLING
Mercedes A9045240525 - GERAEUSCHKAPSEL
SPRINTER 210 D,212 D 902.411
52 SHEET METAL / AIR INTAKE - 290 ENGINE COMPARTMENT PANELLING
Поз.
Артикул
Описание
5
A9015240825
ANTINOISE CAPSULE
5
A9015240325
ANTINOISE CAPSULE , Replaced By: A9015240825
5
A9015240225
8
A9015240081
RUBBER BUFFER. RUBBER BUMPER ANTINOISE CAPSULE TO FRAME
10
N304032006004
NUT SPRING-LOADED PUSH ROD
12
A3859901140
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
14
A9045240525
ANTINOISE CAPSULE
14
A9015240725
14
A9015240625
14
A9015240525
14
A9015240425
20
A9015200841
BRACKET AT FRAME, LEFT
23
A9015200941
BRACKET
26
N000934006007
NUT BALL PIVOT TO LEVER
26
N304032006004
NUT SPRING-LOADED PUSH ROD
29
A3859901140
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
32
A9015241928
32
A9015241828
32
A9015241428
35
A9015200022
38
A9015200122
COVERING REAR
41
A9015201241
41
A9015200741
BRACKET BOTTOM COVERING
44
N910105006002
HEXAGON HEAD BOLT
53
N910112006003
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
56
N913014006004
NUT SHIFTING SHAFT
999
A9015201041
