Mercedes A9018800571 - Бампер задний средняя часть

214, 208 CDI, 211 CDI, 213 CDI, 216 CDI 902.672 TO IDENT-NR. R337626

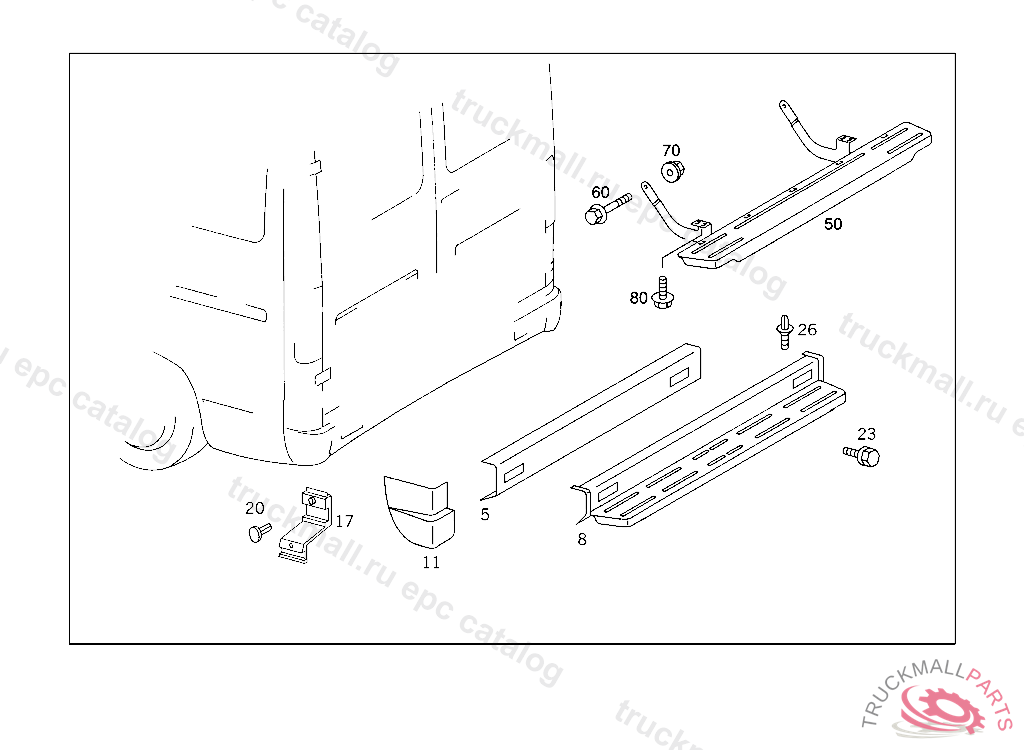

88 ATTACHMENT PARTS - 200 REAR BUMPER

Поз.
Артикул
Описание
5
A9018800971
REAR BUMPER FACE BAR BUMPER,CENTRAL, TO BE PAINTED PRIOR TO INSTALLATION
5
A9018800571
REAR BUMPER FACE BAR. REAR BUMPER
8
A9018850202
REAR BUMPER FACE BAR WITH STEP, CENTRE REAR
11
A9018800771
REAR BUMPER FACE BAR. REAR BUMPER LEFT, TO BE PAINTED PRIOR TO INSTALLATION
11
A9018800871
REAR BUMPER FACE BAR. REAR BUMPER RIGHT, TO BE PAINTED PRIOR TO INSTALLATION
11
A9018800471
REAR BUMPER FACE BAR. REAR BUMPER RIGHT
11
A9018800371
REAR BUMPER FACE BAR LEFT
17
A9018800314
BRACKET LEFT
17
A9018800414
BRACKET RIGHT
20
A9019910053
GUIDE
23
A0009902104
SCREW
26
A0009905592
RIVET FASTENING FOR LINING
50
A9015200031
RUNNING BOARD WHEELBASE:
60
N910105012001
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
70
N913023012002
NUT BRACKET TO SIDE MEMBER M12X1.5
80
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
999
A0009902691
CAGE CLIP WITH NUT M 8. NUT RETAINER COVERING TO COVER PLATE
