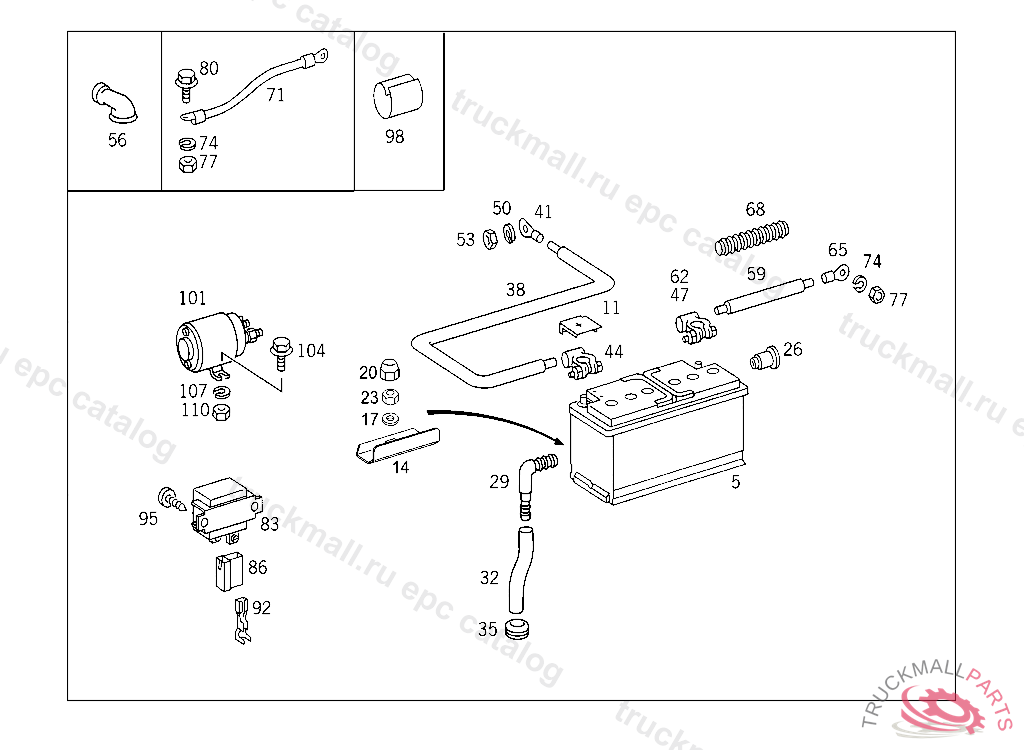

Поз.
Артикул
Описание
5
BATTERY12 V / 66 AH VARTA
5
BATTERY PARTS KIT
5
BATTERY100 AH
5
BATTERY12 V / 66 AH VARTA, Replaced By: A0009823708
5
BATTERY , Replaced By: A0045413101
5
BATTERY , Replaced By: A0045414601
11
BOOT , Replaced By: A0015460835
14
RAIL BATTERY
17
WASHER COMPRESSED AIR LINE TO BRACKET
17
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
20
CAP NUT , Replaced By: N001587006002
20
CAP NUT SWITCH TO CAB FRONT PANEL
23
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
23
NUT , Replaced By: N910112006001
23
NUT , Replaced By: N913023006001
26
STOP PLUG. PLUG ON BATTERY,LATERALLY
29
ELBOW FITTING. DISTRIBUTOR
32
HOSE , ORDER BY THE METER
32
HOSE BREATHER LINE 65X45 MM, ORDER BY THE METER
35
GROMMET
35
GROMMET CLOCK
35
GROMMET FOR PASSAGE OF LINE, UP TO IDENT NO. 5 033766,ALSO INSTALLED ON 5 039977
38
ELECTRIC CABLE FROM BATTERY POS.POLE TO STARTING MOTOR
41
CABLE SHOE FROM BATTERY POS.POLE TO STARTING MOTOR
44
CLAMPING PIECE POS. POLE
47
CLAMPING PIECE BATTERY
47
CLAMPING PIECE BATTERY
50
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
50
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
53
NUT SPRING-LOADED PUSH ROD
53
NUT
56
GROMMET STARTING CABLE TO STARTING MOTOR
59
ELECTRIC CABLE (GROUND CABLE)
62
SOLDERING TERMINAL NEG.POLE
65
CABLE SHOE NEG. CABLE
65
CABLE SHOE BATTERY CABLE
68
INSULATING HOSE HOSE LINE PROTECTION 10 MM, ORDER BY THE METER
68
INSULATING HOSE HOSE LINE PROTECTION 13 MM, ORDER BY THE METER
71
GROUND STRAP FROM ENGINE TO FRAME
71
NEG. CABLE , Replaced By: A1245400031
71
NEG. CABLE , Replaced By: A9015400741
74
SPRING WASHER , Replaced By: N000137008212
74
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
77
NUT
80
COMBINATION BOLT
83
RELAY (BATTERY CUT-OFF RELAY)
86
PIN BUSHING HOUSING BIPOLAR
92
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
92
PIN BUSHING WITH DETENT,LESS CATCH FOR HOUSING 0.5-1.0 MM2
92
PIN BUSHING , Replaced By: A0075458226
95
SHEET METAL SCREW OIL LINE MOUNTING
98
CLAMP ELECTRIC CABLE MOUNTING
101
CONTACTOR RELAY
104
SCREW RELAY
107
LOCK WASHER BRACKET TO STEERING COLUMN END
110
NUT , Replaced By: N304032005005
110
NUT IN CASE OF SUBSEQUENT INSTALLATION
