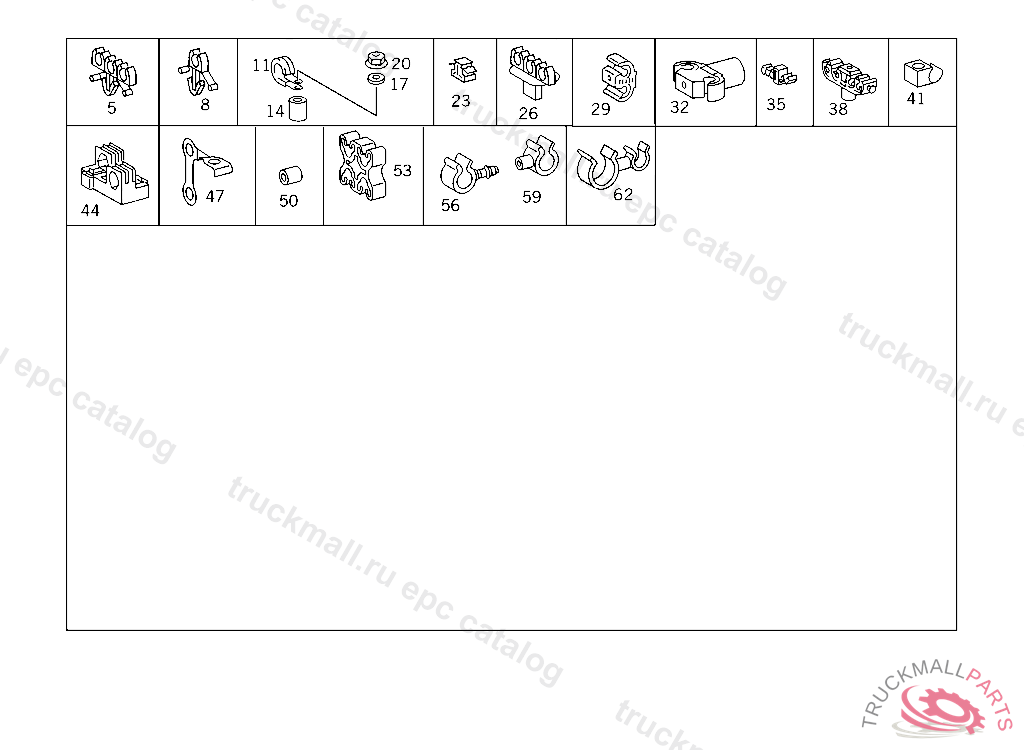

Поз.
Артикул
Описание
5
BRACKET BRAKE LINE TO FRAME
8
BRACKET BRAKE LINES
11
CLAMP LINE MOUNTING
11
CLAMP , Replaced By: N916016015202
14
BUSHING LINE MOUNTING
17
WASHER FROM SLAVE CYLINDER TO HOSE,895778
20
NUT COVERING TO CAB FIRE WALL
20
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
23
BRACKET AT SIDE MEMBER
26
CLAMP , Replaced By: A0019952465
26
CLAMP BRAKE LINE TO FIRE WALL, TO BE ADAPTED DURING ASSEMBLY
29
BRACKET , Replaced By: A6674280840
32
BRACKET BRAKE LINE TO FIRE WALL
35
CLIP BRAKE LINE MOUNTING
38
BRACKET , P 718187 R 000001
41
CLIP BRAKE LINE TO CAB SIDE MEMBER
44
BRACKET , P 718187 R 000001
47
BRACKET BRAKE HOSE,FRONT
50
SPACER BUSHING , INAPPLICABLE TO ALL-WHEEL-DRIVE VEHICLE, MAKE OBERAIGNER
53
BRACKET. LOCK
56
CLAMP
59
CLAMP , Replaced By: A0005465143
59
CLAMP COMPRSSED AIR LINE TO SUBSTRUCTURE
62
CLAMP
