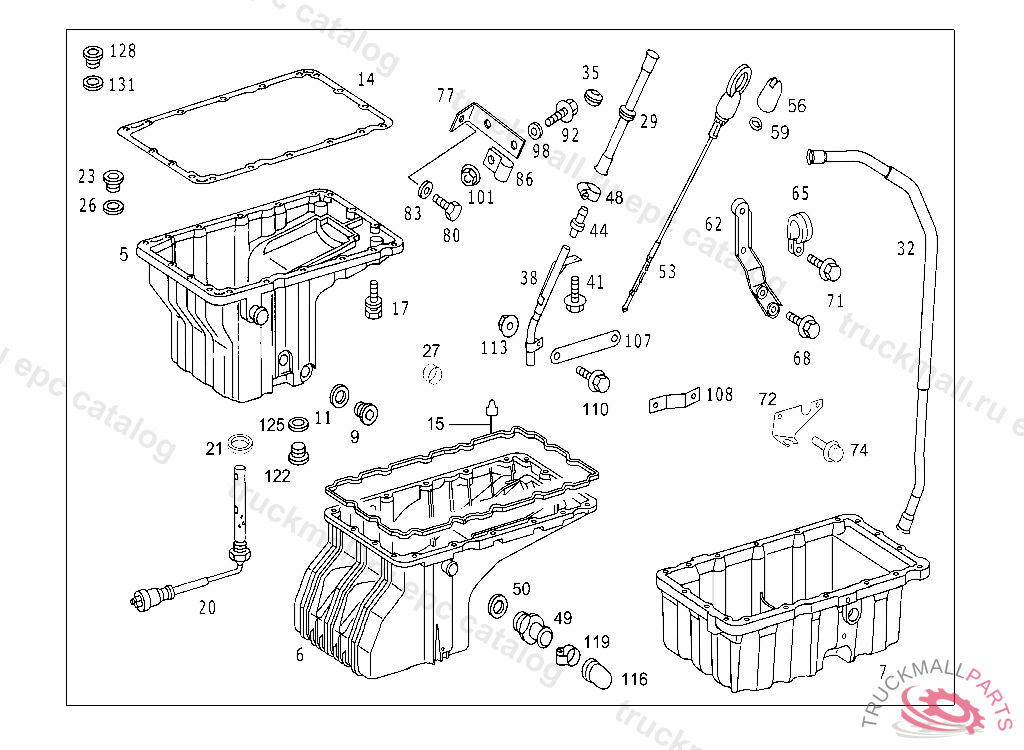

Поз.
Артикул
Описание
5
OIL PAN ALUMINUM
9
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
11
SEALING RING. SCREW TO PLUG LONGITUDINAL OIL DUCT,FAN SIDE
14
GASKET OIL PAN TO CYLINDER CRANKCASE TO A 904 010 08 13 / 31 13
14
GASKET OIL PAN TO CYLINDER CRANKCASE
17
COMBINATION BOLT OIL PAN TO CYLINDER CRANKCASE M 8X40
20
SENDER UNIT OIL LEVEL SENDER UNIT
21
SEALING RINGTO A957 490 05 14
29
GUIDE TUBE OUTSIDE OIL MEASURING DEVICE
29
GUIDE TUBE OIL DIPSTICK,OUTSIDE
35
GROMMET
38
GUIDE TUBE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 308376, Replaced By: A9060102466
38
GUIDE TUBE INSIDE ON CRANKCASE
38
GUIDE TUBE OIL DIPSTICK,INSIDE
41
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
44
FITTING GUIDE TUBE TO CYLINDER CRANKCASE
48
CABLE TIE. CLAMP GUIDE TUBE TO CYLINDER CRANKCASE
48
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
53
OIL DIPSTICK , NEW VERSION IS SHORTER,NO PROBLEMS WITH OIL CAPACITY
53
OIL DIPSTICK
53
OIL DIPSTICK , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 417215, Replaced By: A9040108272
53
OIL DIPSTICK , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 245927, Replaced By: A9040105772
56
CAP
59
SEAL RING
59
SEAL RING
77
BRACKET BRACKET
80
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
83
WASHER RADIATOR TO RUBBER MOUNTING
86
CLAMP CLAMP
92
SCREW SCREW 1/4-20,3AM 685442 50 038885
98
WASHER BRACKET TO CROSS MEMBER, INAPPLICABLE TO BM 685.458-002
101
NUT NUT
107
BRACKET BRACKET FOR DIPSTICK GUIDE TUBE,*0310375
110
SCREW STOP TO BATTERY CASE
113
NUT ENGINE MOUNTING M8
116
LOCKING CAP , Replaced By: A3845067033
119
CLAMP25-40X13 MM
119
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
122
SCREW PLUG, FILLING CHARGE AIR PRESSURE M20X1.5
125
SEALING RINGTO A957 490 05 14
