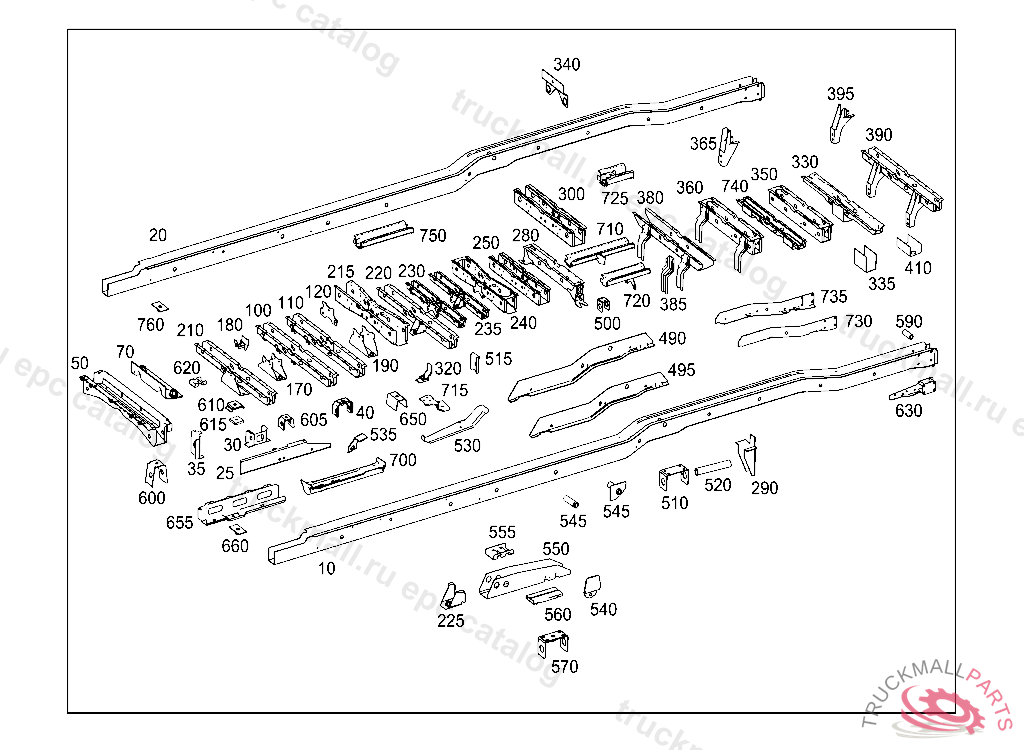

Поз.
Артикул
Описание
10
SIDE MEMBER LEFT AND RIGHT
25
TRUSS RIGHT, INNER LEFT
25
TRUSS FRONT, LEFT AND RIGHT OUTSIDE
40
STAY C-PILLAR
50
CROSS MEMBER"4"
100
CROSS MEMBER"5", Replaced By: A9063102537, +002A9063101009
100
CROSS MEMBER"5.6", TO BE ADAPTED DURING ASSEMBLY
100
CROSS MEMBER"5"
180
BRACKET EXHAUST SYSTEM
210
CROSS MEMBER , Replaced By: A9063101137, +002A9063121640
210
CROSS MEMBER"6"
210
CROSS MEMBER"5.9", TO BE ADAPTED DURING ASSEMBLY
215
CROSS MEMBER C-PILLAR "17.1"
215
CROSS MEMBER C-PILLAR "17.1", Replaced By: A9063100037, +001A9063121561
230
CROSS MEMBER
230
CROSS MEMBER
290
BRACKET SPARE WHEEL
330
CROSS MEMBER"6"
520
BUSHING LINKAGE, HEADLAMP RANGE ADJUSTMENT
535
BRACKET LEFT BRAKE HOSE
535
BRACKET RIGHT BRAKE HOSE
545
BUSH WITHOUT CHAMFER
550
TRUSS FRAME
555
REINFORCEMENT
560
STOP REAR SPRING
600
CONSOLE SEAT MOUNTING, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 20130610, Replaced By: A9003100158
605
CONSOLE SEAT MOUNTING "BREITE AUSFUEHRUNG"
620
CONSOLE
630
REINFORCEMENT TRAILER COUPLING
630
REINFORCEMENT LEFT TRAILER HITCH
630
REINFORCEMENT RIGHT TRAILER HITCH
655
SIDE MEMBER TANK ATTACHMENT
660
BRACKET TANK
700
SIDE MEMBER HAND BRAKE
700
SIDE MEMBER HAND BRAKE
715
SUPPORT HAND BRAKE
740
FRAME REINFORCEMENT REAR
750
SIDE MEMBER SEAT MOUNTING
