Mercedes A0019877625 - Защита кромок

324, 309CDI, 311CDI, 315CDI, 318CDI 906.631

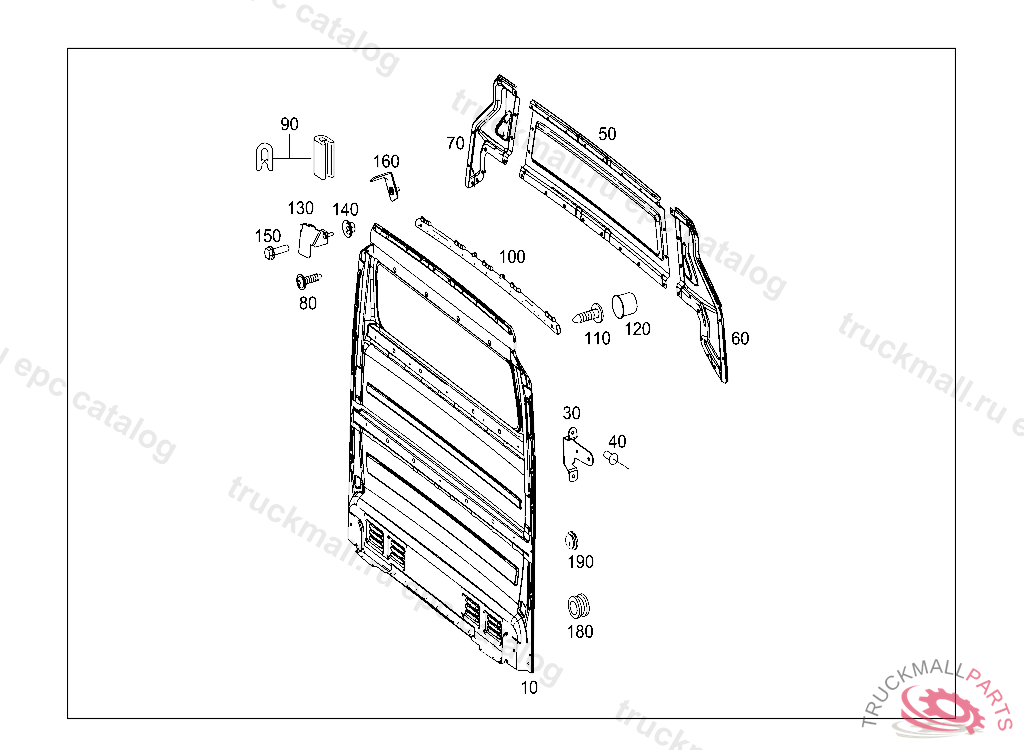

71 PARTITION WALL/LOAD PROTECTION GRILL - 020 CONTINUOUS PARTITION IL. 1

Поз.
Артикул
Описание
10
A9067103001
PARTITION PANEL
10
A9067102901
PARTITION PANEL
10
A9067103201
PARTITION PANEL
10
A9067100101
PARTITION PANEL
10
A9067102701
PARTITION PANEL
10
A9067102801
PARTITION PANEL
10
A9067100901
PARTITION PANEL
10
A9067100801
PARTITION PANEL
10
A9067103101
PARTITION PANEL
10
A9067100001
PARTITION PANEL
30
A9067110314
BRACKET RIGHT
30
A9067110414
BRACKET LEFT
40
A0039901497
BLIND RIVET. RIVET , Replaced By: A0039903897
50
A9067101501
PARTITION PANEL TOP
50
A9067100301
PARTITION PANEL TOP
60
A9067100224
COVER LEFT
60
A9067100624
COVER LEFT
60
A9067100424
COVER LEFT
60
A9067100724
COVER LEFT
60
A9067100024
COVER LEFT
60
A9067100924
COVER LEFT
70
A9067100824
COVER RIGHT
70
A9067101024
COVER RIGHT
70
A9067100524
COVER RIGHT
70
A9067100324
COVER RIGHT
70
A9067100124
COVER RIGHT
80
A0009904111
BOLT FASTENING FOR LINING 5X15,5
90
A0019877625
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
100
A9067100145
REINFORCEMENT
100
A9067100245
REINFORCEMENT
110
A0009904111
BOLT FASTENING FOR LINING 5X15,5
120
N913018010200
PROTECTIVE CAP. PROTECTION CAP PARTITION PANEL TO GRIP RAIL
130
A9067100132
CONNECTION PART RIGHT
130
A9067100032
CONNECTION PART LEFT
140
N910104010001
NUT-AND-WASHER ASSEMBLY REINFORCEMENT TO SIDE MEMBER M10, A 97499920070630809 E 06000020080901809
150
N000000000428
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
180
A3199970281
GROMMET
190
A1169870044
EXPANSION PLUG WHEELHOUSES, REAR FENDERS
190
A0039975786
PLUG CROSS MEMBER IN THE REAR, LEFT 15 MM
