Главная
›
Mercedes
›
ENGINE
›
OM 906 LA
›
906.974
›
01 ENGINE HOUSING
›

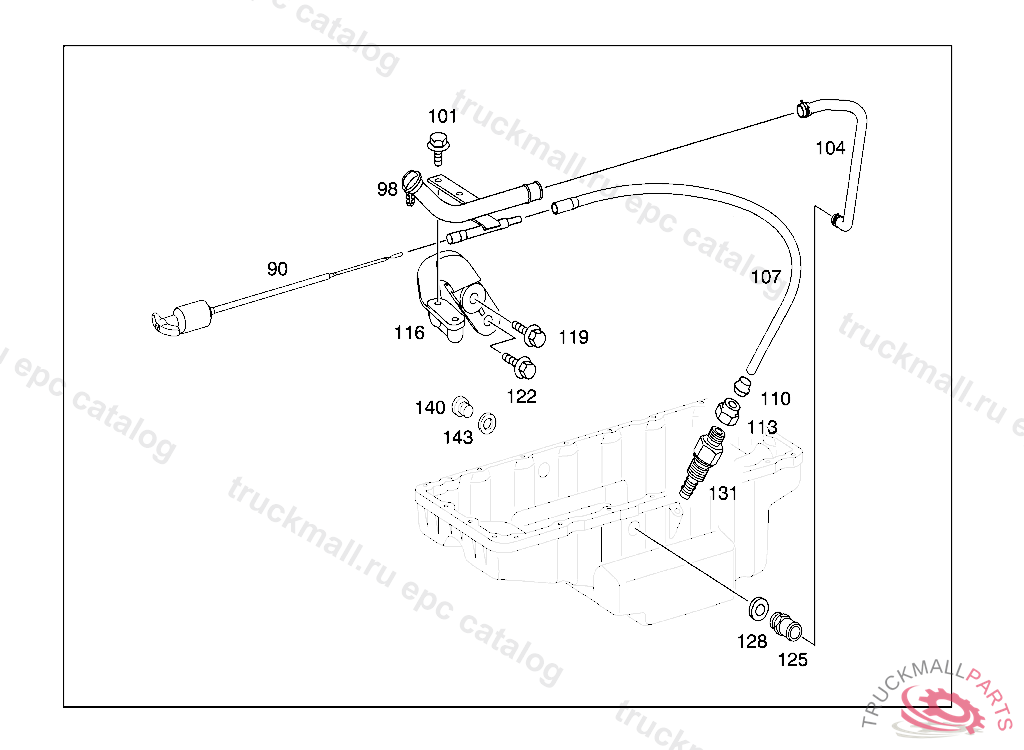

060 OIL PAN & OIL LEVEL DISPLAY IL. 3
Mercedes A9260180082 - LU FORMSCHLAUCH
OM 906 LA 906.974
01 ENGINE HOUSING - 060 OIL PAN & OIL LEVEL DISPLAY IL. 3
Поз.
Артикул
Описание
90
A9260100272
OIL DIPSTICK
98
A9260100164
OIL FILLER NECK
101
N910105008039
SCREW , Replaced By: N910143008002
104
A9260180082
HOSE CONNECTION OIL FILLER NECK
107
A0119970982
HOSE FEED & RETURN 13X1.5 MM, ORDER BY THE METER
110
A4039900167
SEAL CONE
113
N915017010201
UNION NUT FUEL HOSE
116
A9060181540
BRACKET CYLINDER HEAD TO TIMING CASE, Replaced By: A9060183540
119
N910105010007
SCREW BRACKET TO SIDE MEMBER M10X35
122
N910105010009
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
125
A4852030008
CONNECTOR OIL FILLER NECK
128
N000000001074
SEALING RING ,760252
131
A4239970172
FITTING OIL SCAVENGING
