Поз.
Артикул
Описание

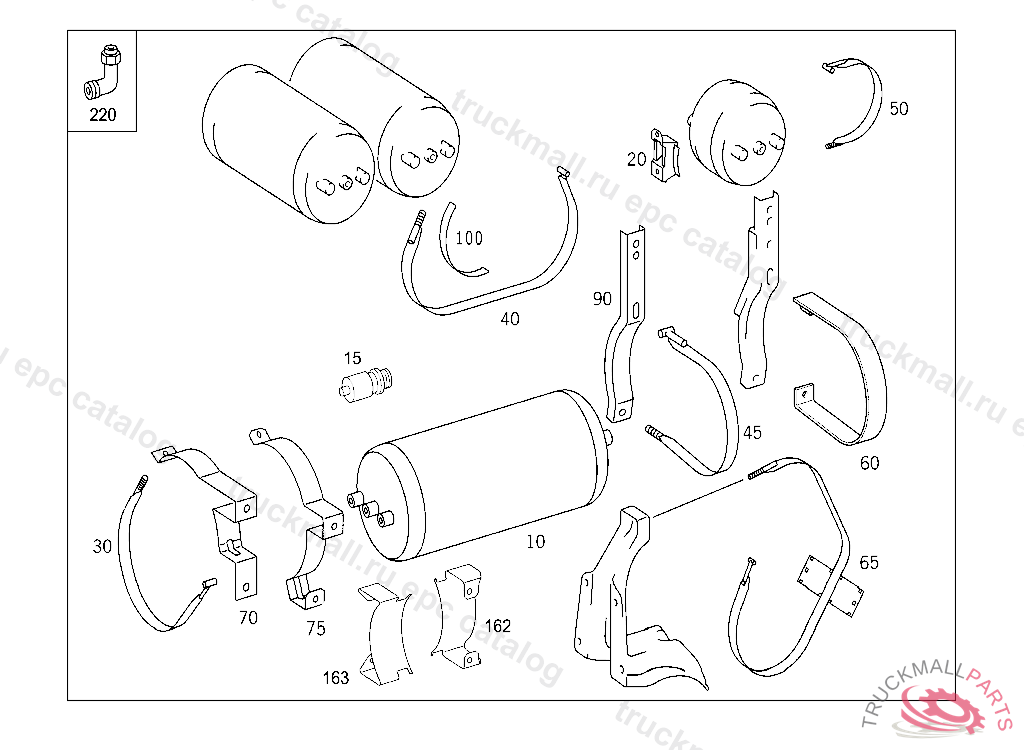

10
RESERVOIR (AIR RESERVOIR),ALUMINUM VERSION 30L
10
RESERVOIR BRAKE 30 L, TO VOSS 232, FOR VEHICLES WITH VOSS 230 CONNECTOR: ADD. MOUNT FITTING "A 004 997 82 72" WITH O-RING "A 000 987 04 46" AND THRUST RING "A 000 997 02 03" TO AIR RESERVOIR
15
SAFETY VALVE. VALVE PRESSURE RELIEF, REPAIR IMPOSSIBLE
20
BASE AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
30
STRAP AIR RESERVOIR TO BRACKET
30
STRAP AIR RESERVOIR 390MM
30
STRAP AIR RESERVOIR 390MM
30
STRAP AIR RESERVOIR TO BRACKET
40
STRAP PARTICLE FILTER
40
STRAP AIR RESERVOIR TO BRACKET, Replaced By: A6174700340
40
STRAP AIR RESERVOIR, TO BE ADAPTED DURING ASSEMBLY
45
STRAP AIR RESERVOIR
45
STRAP AIR RESERVOIR TO BRACKET
45
STRAP AIR RESERVOIR TO BRACKET
50
STRAP AIR RESERVOIR
60
STRAP AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
65
STRAP AIR RESERVOIR
65
STRAP , Replaced By: A9414301240
70
BRACKET AIR RESERVOIR TO LEFT SIDE MEMBER, INSIDE 20 L, NOT USED
70
BRACKET AIR RESERVOIR TO SUPPORT
75
BRACKET AIR RESERVOIR TO FRAME
90
BRACKET AIR RESERVOIR TO FRAME
90
BRACKET AIR RESERVOIR TO SUPPORT
90
BRACKET EXHAUST PIPE SUSPENSION
90
BRACKET EXHAUST MUFFLER TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
90
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
90
BRACKET AIR RESERVOIR
90
BRACKET , Replaced By: A9454320440
90
BRACKET , Replaced By: A9454320440
100
ADHESIVE TAPE60 MM, ORDER BY THE METER
162
BRACKET AIR RESERVOIR TO FRAME
163
BRACKET AIR RESERVOIR
163
BRACKET AIR RESERVOIR
163
BRACKET AIR RESERVOIR
220
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
220
FITTING FROM PUMP TO CYLINDER
