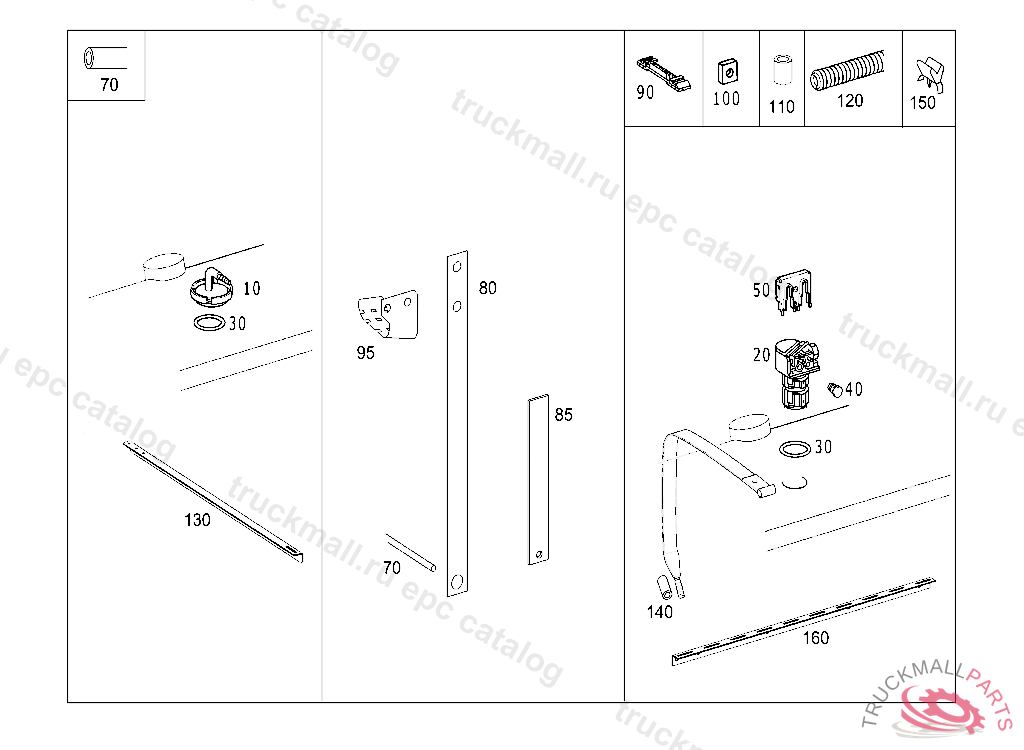

Поз.
Артикул
Описание
10
COVER BREATHING
20
VALVE , Replaced By: A0004705193
20
VALVE (VENT VALVE)
30
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
30
SEAL RING
40
PLUG BREATHER VALVE
50
LOCK FUEL GAUGE SENDER UNIT CONNECTION
50
LOCK FUEL GAUGE SENDER UNIT CONNECTION
70
LINE FUEL EXPANSION PIPE,TANK I AND TANK II 22X18,4MM
70
PLASTIC PIPE FUEL LINE 3X5MM, ORDER BY THE METER
70
PLASTIC PIPE10X13MM, ORDER BY THE METER
70
PLASTIC PIPE RISING PIPE 4X6 MM
70
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
80
BRACKET FUEL COMPENSATING LINE
85
BRACKET FUEL COMPENSATING LINE 5MM
90
BRACKET FUEL LINE
95
BRACKET LINE MOUNTING
100
SHIM MOUNTING PARTS 7MM
110
SPACER LINE MOUNTING
110
SPACER TUBE MOUNTING PARTS, Replaced By: A6458910653
110
SPACER TUBE TRAILER COUPLING TO REAR CROSS MEMBER
110
SPACER TUBE , Replaced By: A6013250453
110
SPACER TUBE CLAMP TO BRACKET
120
INSULATING HOSE24.5MM, ORDER BY THE METER
130
PROTECTIVE PLATE FUEL LINES 950MM
140
HOSE STRAP TO SUPPORT 60MM
150
BRACKET TO MOUNT FUEL LINES
160
PROTECTIVE RAIL TO MOUNT FUEL LINES
999
BRACKET LINE MOUNTING
