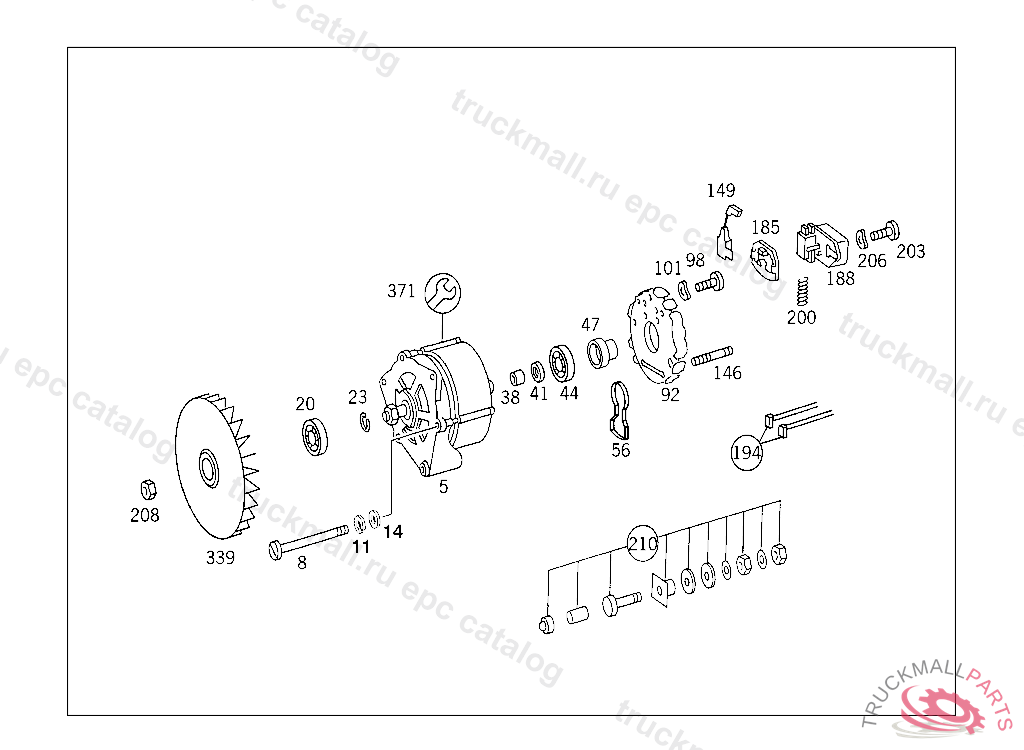

Поз.
Артикул
Описание
5
ALTERNATOR28V/140A
5
ALTERNATOR , Replaced By: A0111545002
8
SCREW , Replaced By: A0019900321
8
SCREW
8
SCREW
11
LOCK WASHER
14
WASHER COMPRESSED AIR LINE TO BRACKET
14
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
20
BALL BEARING
23
SNAP RING
38
SPACER RING
41
SEAL RING
44
CYLINDR. ROLLER BEARING
56
GASKET
92
RECTIFIERTO 009 154 08 02,008 154 78 02
98
SCREW T-FITTING TO BRACKET M4X25
101
SPRING WASHER ALTERNATOR CONNECTION D+
146
STUD
149
CONDENSER
185
GASKET
188
REGULATOR AND CUT-OUT , Replaced By: A0021549606
188
REGULATOR AND CUT-OUT
194
CARBON BRUSH SETTO 007 154 28 02,009 154 08 02
194
CARBON BRUSH SETTO 008 154 78 02
200
SPRING
203
SCREW , Replaced By: N007985004130
203
SCREW ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
206
SPRING WASHER ALTERNATOR CONNECTION D+
339
FANTO 011 154 50 02
339
FAN
371
REPAIR KIT ROTOR TO 009 154 08 02,008 154 78 02
