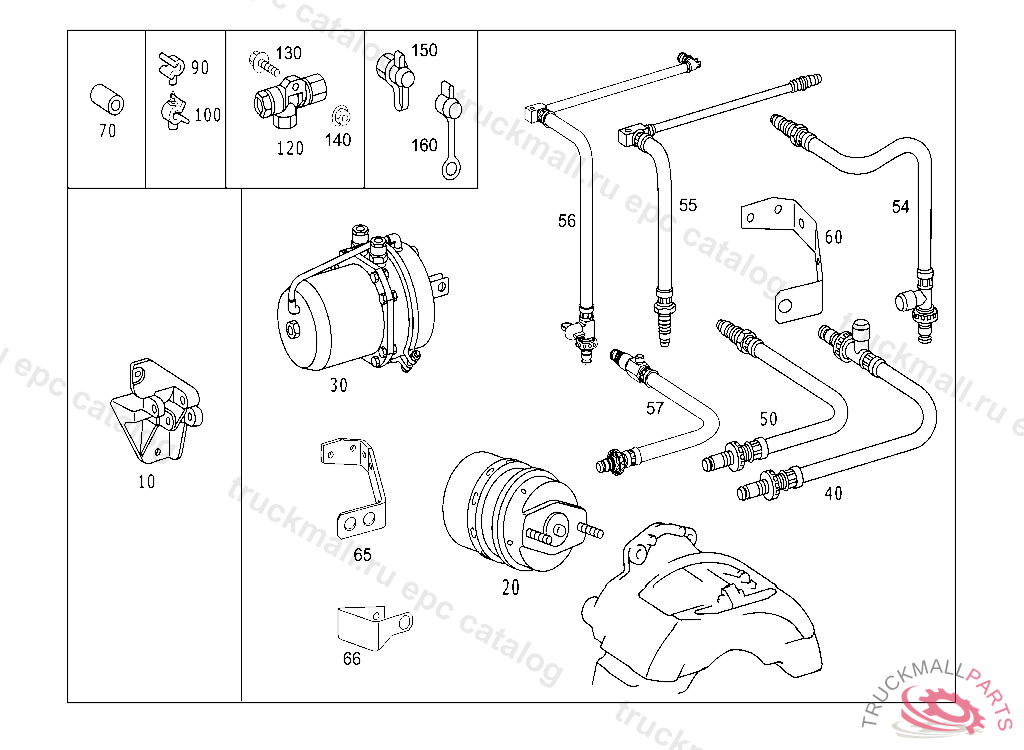

Поз.
Артикул
Описание
10
BRACKET SHOCK ABSORBER,TOP LEFT, NO.7390I I I I II
20
WHEEL BRAKE CYLINDER , Replaced By: A0204204618
20
WHEEL BRAKE CYLINDER , Replaced By: A0204204518
20
WHEEL BRAKE CYLINDER FRONT AXLE,RIGHT
20
WHEEL BRAKE CYLINDER FIRST LEFT LEADING AXLE
20
WHEEL BRAKE CYLINDER (COMBINATION CYLINDER),LEFT WABCO
20
WHEEL BRAKE CYLINDER FIRST RIGHT LEADING AXLE
20
WHEEL BRAKE CYLINDER FRONT AXLE,LEFT
20
WHEEL BRAKE CYLINDER (COMBINATION CYLINDER),RIGHT WABCO
30
WHEEL BRAKE CYLINDER (COMBINATION CYLINDER),RIGHT WABCO, FOR COMPONENT PARTS SEE SPARE PARTS LIST
30
WHEEL BRAKE CYLINDER (COMBINATION CYLINDER),LEFT WABCO, FOR COMPONENT PARTS SEE SPARE PARTS LIST
40
BRAKE HOSE FRONT AXLE
50
BRAKE HOSE FRONT AXLE 22.01.12, VOSS 232
50
BRAKE HOSE
50
BRAKE HOSE605MM
54
BRAKE HOSE
54
BRAKE HOSE591MM
55
BRAKE HOSE FRONT AXLE SERVICE BRAKE,RIGHT 536/488MM
55
BRAKE HOSE LEFT COMBINATION CYLINDER,CONNECTION: "12"
55
BRAKE HOSE RIGHT COMBINATION CYLINDER,CONNECTION: "12"
55
BRAKE HOSE FRONT AXLE SERVICE BRAKE,LEFT 536/558MM
56
BRAKE HOSE RIGHT COMBINATION CYLINDER,CONNECTION: "11"
56
BRAKE HOSE LEFT COMBINATION CYLINDER,CONNECTION: "11"
56
BRAKE HOSE FRONT AXLE
57
BRAKE HOSE TRAILING AXLE
60
BRACKET RIGHT FRONT BRAKE HOSE
60
BRACKET , Replaced By: A9304311040, +002N000125019009
60
BRACKET LEFT FRONT BRAKE HOSE, Replaced By: A9304310940, +002N000125019009
60
BRACKET LEFT FRONT BRAKE HOSE
65
BRACKET RIGHT
65
BRACKET LEFT
66
BRACKET LEFT BRAKE HOSE
66
BRACKET RIGHT BRAKE HOSE
70
BUSHING RIGHT FRONT 43.3X40X17MM, TO BE ADAPTED DURING ASSEMBLY
70
SPACER TUBE MOUNTING PARTS, Replaced By: A4182420050
70
SPACER TUBE , Replaced By: A4423110750
70
BUSHING MOUNTING PARTS 50/17X49 MM, TO BE ADAPTED DURING ASSEMBLY
90
CLAMP BRAKE HOSE
100
CLAMP BRAKE HOSE
120
SHUTTLE VALVE. VALVE (SHUTTLE VALVE)
130
SCREW SHUTTLE VALVE ON INSIDE OF FRAME
140
NUT HORN TO BRACKET M8
150
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
160
PLUG
