Поз.
Артикул
Описание
10

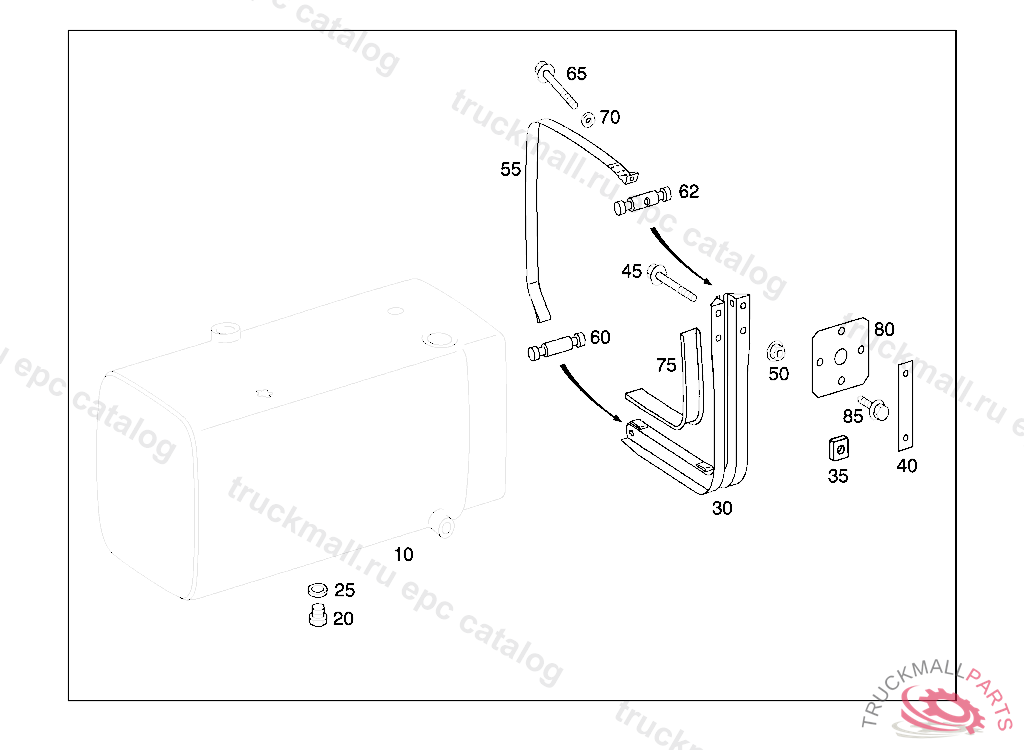

FUEL TANK TO BE MOUNTED ON THE RIGHT 500 L + 200 L
10
FUEL TANK TO BE MOUNTED ON THE RIGHT 455L + 160L
10
FUEL TANK TO BE MOUNTED ON THE RIGHT 500L + 200L
10
FUEL TANK TO BE MOUNTED ON THE RIGHT 500 L + 200 L
20
SCREW PLUG FUEL TANK
25
SEAL RING CLUTCH BOOSTER
30
SUPPORT FUEL TANK TO FRAME
30
SUPPORT FUEL TANK TO FRAME
35
SHIM MOUNTING PARTS 7MM
40
SHIM BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER 5 MM
45
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 55
45
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M14 X 1.5 X 65
45
HEXAGON HEAD BOLT. SCREW SPACER TUBE BETWEEN STABILIZER SHACKLES M14X1,5X80,D 228766
45
HEXAGON HEAD BOLT. SCREW GUSSET PLATE TO FRAME M14 X 1.5 X 70
45
HEXAGON HEAD BOLT. SCREW SUPPORT TO SIDE MEMBER M 14X1.5X50
45
HEXAGON HEAD BOLT. SCREW SPACER TUBE TO BRACKET M 14X1.5X100
45
HEXAGON HEAD BOLT. SCREW SUPPORT TO FRAME M 14X1.5X90
50
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
55
STRAP FUEL TANK TO CONSOLE
60
PIN STRAP TO SUPPORT 16X80 MM
62
PIN STRAP TO SUPPORT 25X80 MM
65
HEXAGON HEAD BOLT. SCREW RUBBER BUFFER TO SUPPORT M 12X90
70
WASHER
75
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
80
PLATE MOUNTING PARTS 5 MM
85
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
