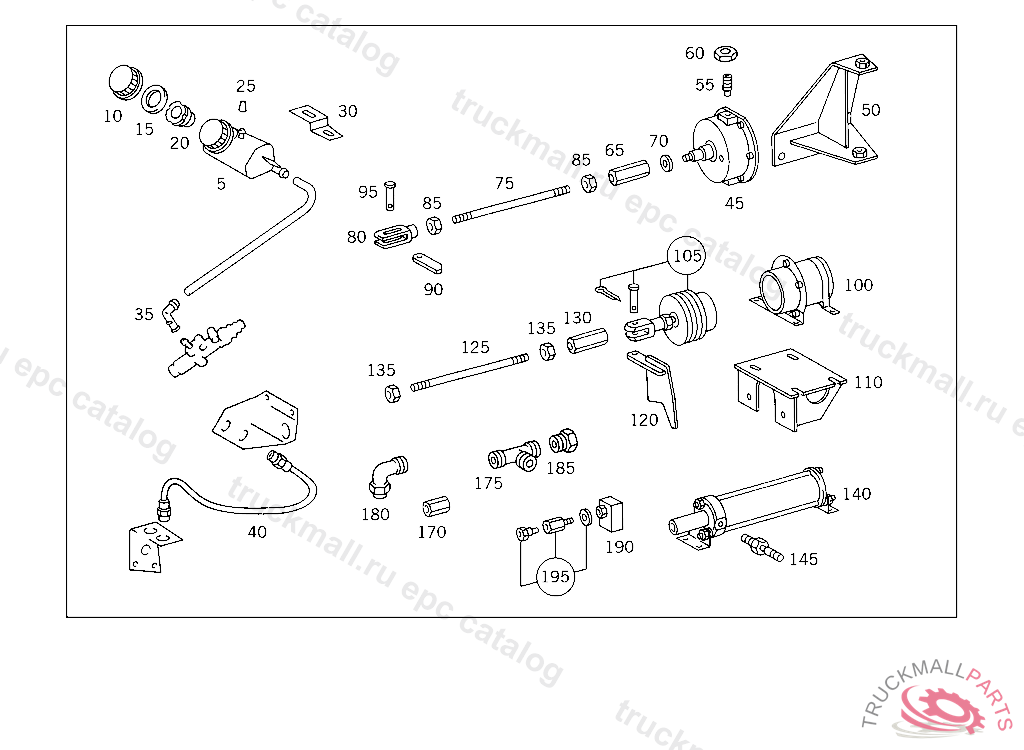

Поз.
Артикул
Описание
5
RESERVOIR RESERVOIR
10
LOCKING CAP
15
SEAL RING
20
STRAINER
25
CAP RESERVOIR DE-AERATION
30
BRACKET RESERVOIR
35
INTERMEDIATE PIECE FROM CLUTCH MASTER CYLINDER TO RESERVOIR
40
BRAKE HOSE FROM BRACKET UNDER CAB FLOOR TO OIL TANK BRACKET
40
HOSE , Replaced By: A3982950035
40
HOSE FROM BRACKET UNDER CAB FLOOR TO OIL TANK BRACKET
45
PART NAME MISSING CLUTCH BOOSTER
50
PART NAME MISSING BRACKET
55
PART NAME MISSING CONNECTOR
60
NUT CLUTCH BOOSTER
65
PART NAME MISSING (TURNBUCKLE NUT) M8X60
70
WASHER RADIATOR TO RUBBER MOUNTING
70
WASHER , Replaced By: N000125010532
75
PULL ROD CLUTCH ACTUATION M10X200/40, TO BE ADAPTED DURING ASSEMBLY
80
PART NAME MISSING YOKE
85
NUT BRACKET TO SUPPORT AND TO END PIECE
90
PART NAME MISSING LEVER
95
PIN PISTON ROD TO LEVER, 415 5 014668 416 5 000515 417 4 972023
100
PART NAME MISSING CLUTCH BOOSTER
105
PART NAME MISSING PARTS KIT
110
PART NAME MISSING BRACKET
110
PART NAME MISSING BRACKET
120
PART NAME MISSING LEVER
120
PART NAME MISSING LEVER
120
PART NAME MISSING LEVER
125
PART NAME MISSING PULL ROD M16X2X240
130
PART NAME MISSING (TURNBUCKLE NUT)
135
PART NAME MISSING NUT M16X2
140
PART NAME MISSING CLUTCH BOOSTER
145
PART NAME MISSING CONNECTOR
170
INTERMEDIATE PIECE CLUTCH HOSE,K 172342
175
T-FITTING , Replaced By: A0029909070
175
T-FITTING HOSE WIDTH, 9 MM,TO M 22
180
ELBOW FITTING 3/2-WAY VALVE,CONNECTION: "20",5 765577
185
UNION SCREW
190
PART NAME MISSING DISTRIBUTOR
195
PART NAME MISSING PARTS KIT
195
PART NAME MISSING PARTS KIT
195
PART NAME MISSING PARTS KIT
999
BRACKET MOUNTING PARTS
999
BRACKET MOUNTING PARTS
999
BRACKET MOUNTING PARTS
999
BRACKET MOUNTING PARTS
