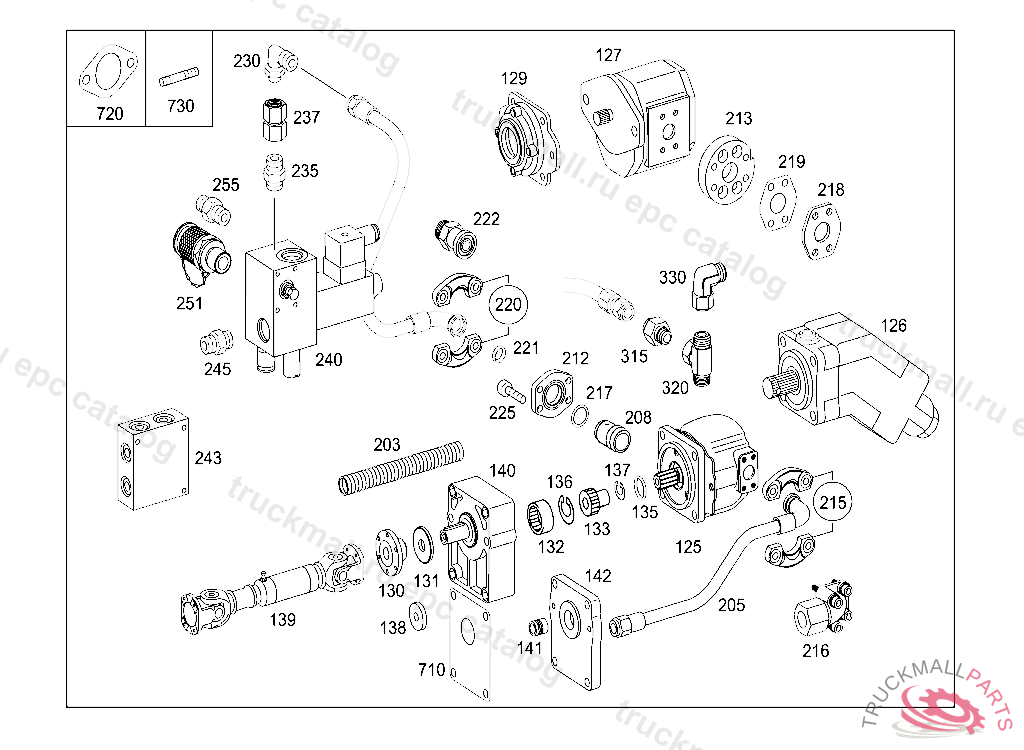

Поз.
Артикул
Описание
125
PUMP OIL PUMP
125
PUMP OIL PUMP
125
HYDRAULIC PUMP OIL PUMP
125
PUMP OIL PUMP
125
PUMP OIL PUMP
126
HYDRAULIC PUMP OIL PUMP
127
GEAR PUMP OIL PUMP
127
PUMP OIL PUMP
127
GEAR PUMP DOUBLE-SPEED PUMP
127
HYDRAULIC PUMP ADJUSTABLE
127
GEAR PUMP OIL PUMP
129
BEARING OIL PUMP
130
FLANGE OIL PUMP TO DRIVE SHAFT, THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A5412360645
130
FLANGE OIL PUMP TO DRIVE SHAFT
130
FLANGE OIL PUMP TO DRIVE SHAFT
130
FLANGE OIL PUMP TO DRIVE SHAFT
130
FLANGE OIL PUMP TO DRIVE SHAFT
130
FLANGE OIL PUMP TO DRIVE SHAFT
130
FLANGE OIL PUMP TO DRIVE SHAFT
130
FLANGE OIL PUMP TO DRIVE SHAFT
131
THRUST WASHER OIL PUMP TO DRIVE SHAFT
131
WASHER OIL PUMP TO DRIVE SHAFT, Replaced By: A3093250162
132
COUPLING OIL PUMP TO TRANSMISSION CASE
133
FOLLOWER OIL PUMP TO TRANSMISSION CASE
135
SEAL RING OIL PUMP TO TRANSMISSION CASE
135
SEAL RING OIL PUMP TO TRANSMISSION CASE
136
LOCK RING
136
LOCK RING 14X1 DIN 472. RETAINING RING
136
LOCK RING. RETAINING RING OIL PUMP TO TRANSMISSION CASE
137
LOCK RING19 MM
138
WASHER PROTECTIVE PLATE TO BRACKET,5 502998
138
SPACER WASHER OIL PUMP TO DRIVE SHAFT, Replaced By: A1089900340
139
DRIVE SHAFT OIL PUMP DRIVE SHAFT
139
DRIVE SHAFT OIL PUMP DRIVE SHAFT
139
DRIVE SHAFT OIL PUMP DRIVE SHAFT
139
DRIVE SHAFT
139
DRIVE SHAFT OIL PUMP DRIVE SHAFT
139
DRIVE SHAFT
140
BEARING .
140
BEARING
140
BEARING
141
COUPLING SLEEVE
141
CLUTCH
142
GUIDE SLEEVE
203
HOSE50/40, ORDER BY THE METER
205
HOSE FROM OIL TANK TO OIL PUMP
208
CONNECTOR SUCTION CONNECTION,K 338223
212
FLANGE ON PUMP,SUCTION END
212
FLANGE ON PUMP,SUCTION END
213
FLANGE ON PUMP,SUCTION END
215
FLANGE ON PUMP,SUCTION END
215
FLANGE ON PUMP,SUCTION END
215
FLANGE ON PUMP,SUCTION END
216
FLANGE ON PUMP,SUCTION END
217
SEAL RING ON PUMP,SUCTION END
217
SEAL RING ON PUMP,SUCTION END
217
O-RING ON PUMP,SUCTION END, Replaced By: A0279977748
217
SEAL RING ON PUMP,SUCTION END
218
FLANGE ON PUMP,SUCTION END
218
FLANGE ON PUMP,SUCTION END
219
GASKET ON PUMP,SUCTION END
220
FLANGE ON PUMP,PRESSURE END
220
FLANGE ON PUMP,PRESSURE END
220
FLANGE ON PUMP,PRESSURE END
221
SEAL RING OIL PUMP TO TRANSMISSION CASE
221
SEAL RING ON PUMP,PRESSURE END
222
FITTING ON PUMP,PRESSURE END
225
CAP BOLT. SCREW CYLINDER TO TRANSMISSION CASE M 12X40
225
SCREW. CAP BOLT FLANGE TO PUMP, Replaced By: N000912012204
230
ELBOW FITTING FLOW CONTROL VALVE, Replaced By: A0039909171
230
ELBOW FITTING FLOW CONTROL VALVE
235
SCREW-IN FITTING CONNECTOR
235
FITTING RETURN LINE TO FAN MOTOR
235
THREADED CONNECTION. FITTING FLOW CONTROL VALVE, Replaced By: N003901020003
237
FITTING FLOW CONTROL VALVE
237
FITTING LINE CONNECTIONS
240
CURRENT REGULATOR160 BAR
240
GOVERNOR TOP 290 BAR
240
CURRENT REGULATOR BOTTOM 320 BAR
243
VALVE BLOCK
243
VALVE BLOCK
243
VALVE BLOCK
245
FITTING DELIVERY LINE TO FAN MOTOR
245
FITTING FLOW CONTROL VALVE
245
FITTING 4/2-WAY VALVE
245
THREADED CONNECTION VALVE BLOCK
245
THREADED CONNECTION LINE CONNECTION
245
FITTING FLOW CONTROL VALVE, Replaced By: A0049900468
251
FITTING TEST CONNECTION
251
COUPLING HALF TEST CONNECTION
255
FITTING DELIVERY LINE TO FAN MOTOR
255
FITTING RETURN LINE TO FAN MOTOR
315
REDUCER VALVE CONNECTION
315
REDUCER LINE CONNECTIONS
320
T-FITTING , Replaced By: A0059970470
320
T-FITTING FAN MOTOR
320
SCREW-IN FITTING VALVE CONNECTION
320
ELBOW FITTING LINE CONNECTIONS
320
EQUAL TEE VALVE CONNECTION
320
FITTING LINE CONNECTION
330
ELBOW FITTING VALVE CONNECTION
330
ELBOW FITTING VALVE CONNECTION, Replaced By: A0049903071
710
PROFILE SEAL
720
PROFILE SEAL
730
STUD BOLT MOUNTING PARTS M12X30
999
BUZZER WARNING BUZZER
999
SCREW FITTING LINE CONNECTION 3/4"
