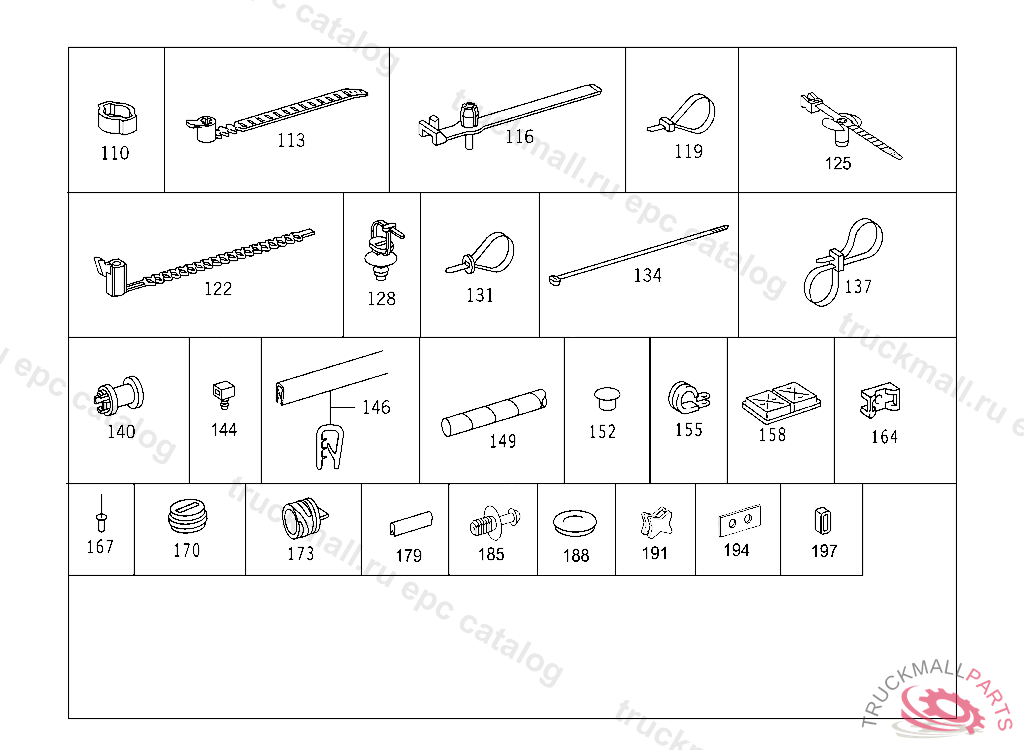

Поз.
Артикул
Описание
110
LOOM TIE
113
LOOM TIE132 X 9.7 MM
116
LOOM TIE
116
LOOM TIE , Replaced By: A1149970590
119
LOOM TIE LINE MOUNTING 280 MM
119
CABLE TIE310X5MM
119
CABLE TIE LINE MOUNTING 375X8.4MM
122
LOOM TIE187 MM
125
CABLE STRAP202X4.8MM
128
CABLE STRAP202X4.8MM
128
CABLE STRAP LINE MOUNTING 260X3.3MM
128
CABLE TIE. LOOM TIE150 X 3.6 MM
131
LOOM TIE , Replaced By: A0069971190
131
CABLE TIE. LOOM TIE378 X 7.6 MM
131
CABLE TIE. LOOM TIE1140 X 8.9 MM
134
CABLE TIE HIGH-GRADE STEEL 201X4.6MM
134
CABLE TIE , Replaced By: A0019978390
137
CABLE TIE. LOOM TIE305X4.6MM
140
WASHER38 MM
140
WASHER28MM
140
WASHER48 MM
140
WASHER18 MM
144
TREENAIL
146
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
149
INSULATING HOSE BLACK 9X0.7 MM, ORDER BY THE METER
149
INSULATING HOSE5 X 0.6 MM, ORDER BY THE METER
152
PLUG
155
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
155
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
158
PLATE CABLE HARNESS MOUNTING
164
BRACKET , NOT USED
167
RIVET
167
RIVET
167
RIVET BLACK
167
RIVET
170
PLUG (NEUTRAL SAFETY SWITCH)
170
PLUG TO PLUG P.T.O. CONNECTION
173
BOOT TO PLUG DUMPER PLATFORM CONTROL CONNECTION
179
EDGE GUARD SECTION , ORDER BY THE METER
185
RIVET
188
GROMMET TO PLUG THE HOLES 56 MM
191
SPACER WASHER LINE MOUNTING
194
WASHER. DAMPER WASHER ENGINE WIRING HARNESS AT ALTERNATOR BRACKET
197
SPACER RING BATTERY CABLE
