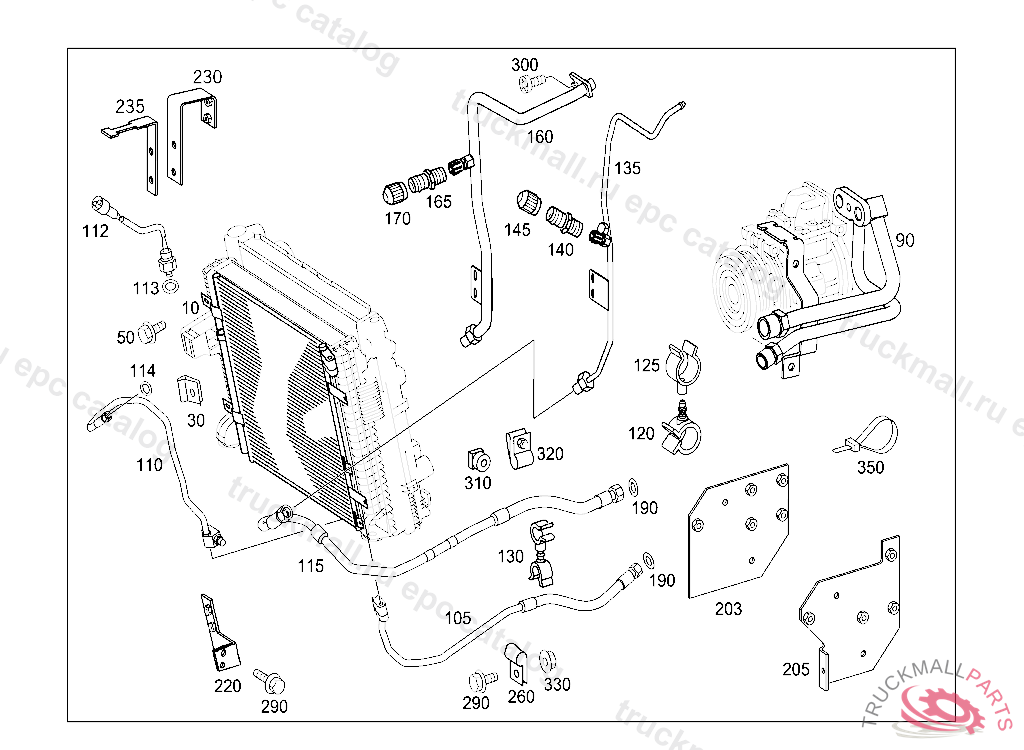

Поз.
Артикул
Описание
10
30
CLIP CONDENSER TO CHARGE AIR INTERCOOLER
50
SCREW , Replaced By: N914146006102
50
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
90
PIPE LINE FROM CONDENSER TO COMPRESSOR
105
105
110
110
112
113
114
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
114
SEALING RING SUCTION LINE 7.5X2.0
115
115
PIPE LINE COMPRESSOR CONNECTION POINT TO CAB CONNECTION POINT
120
CLAMP HOSE TO HOSE
125
BRACKET HOSE TO OIL DIPSTICK GUIDE TUBE,K 130676
130
CLAMP , Replaced By: A0009954565, +001A6734660440
135
135
PIPE LINE CAB CONNECTION POINT TO EXPANSION VALVE
140
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0018306384
145
CAP
160
PIPE LINE CAB CONNECTION POINT TO EXPANSION VALVE
165
VALVE
170
CAP , NOT USED
190
SEAL RING HOSE TO EXPANSION VALVE 7.5 MM
190
O-RING HOSE TO EXPANSION VALVE 17X2
203
205
220
230
BRACKET LINE MOUNTING
235
260
CLAMP FEED LINE TO THERMOSTAT
260
CLAMP , Replaced By: N916016015202
260
CLAMP DELIVERY AND SUCTION LINES TO STEERING
260
CLAMP LINE MOUNTING
260
CLAMP LINE MOUNTING
260
CLAMP LINE MOUNTING
290
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
290
BOLT. SCREW HINGE TO BODY M8 X 25
290
SCREW , Replaced By: N914146006102
290
SCREW ATTACHMENT GRAB HANDLE
290
HEXALOBULAR BOLT STIFFENER TO TUNNEL M6X40, A 00696020110907
290
SCREW CONDENSER TO CHARGE AIR INTERCOOLER M6 X 12
290
SCREW PLATE TO BRACKET
290
HEXAGON HEAD BOLT
290
SCREW PUMP TO BRACKET
290
290
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
290
HEXALOBULAR BOLT ROCKER PANEL TO BRACKET M8X25,V 220488
290
SCREW BRACKET AND CLAMP M6X20
300
SCREW CLAMP MOUNTING M 6X16
310
LOCK COVERING,LEFT,ON RADIATOR
310
SQUARE NUT PROTECTIVE GRILLE ON RADIATOR,BOTTOM
320
NUT RETAINER
330
NUT BRACKET TO FIRE WALL
330
HEXAGON NUT. NUT LINE TO SIDE MEMBER
330
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
350
CABLE TIE IONIC EXCHANGER 380X7.8MM
350
CABLE TIE310X5MM
350
LOOM TIE LINE MOUNTING
