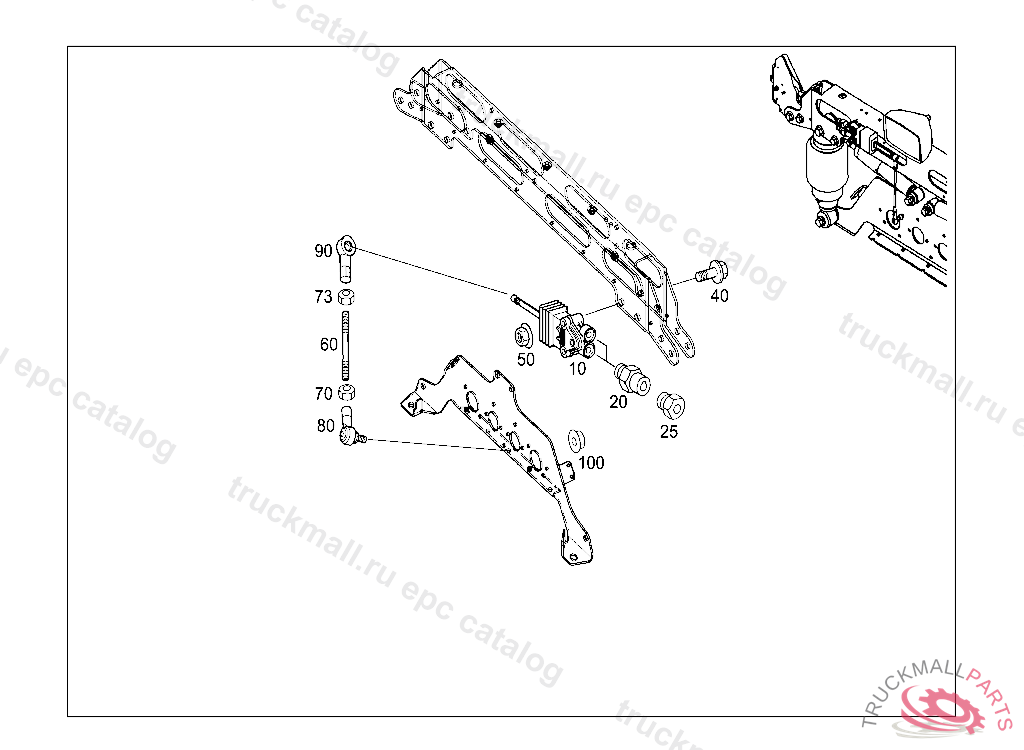

2536S, 2540S - 958.451 - 31 FRAME
Поз.
Артикул
Описание
10
VALVE AIR SUSPENSION,CAB SUSPENSION,FRONT
20
FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION M 10X1/ M 10X1
25
UNION SCREW PNEUMATIC CONNECTION,SUPPLY UNIT M 10, VOSS 232, SDF
40
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
50
NUT HORN TO BRACKET M8
60
PULL ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER 400 MM, TO BE ADAPTED DURING ASSEMBLY
70
NUT L.H. THREAD
73
NUT SPRING-LOADED PUSH ROD
80
JOINT L.H. THREAD
90
JOINT R.H. THREAD
100
NUT BRACKET TO FIRE WALL
999
