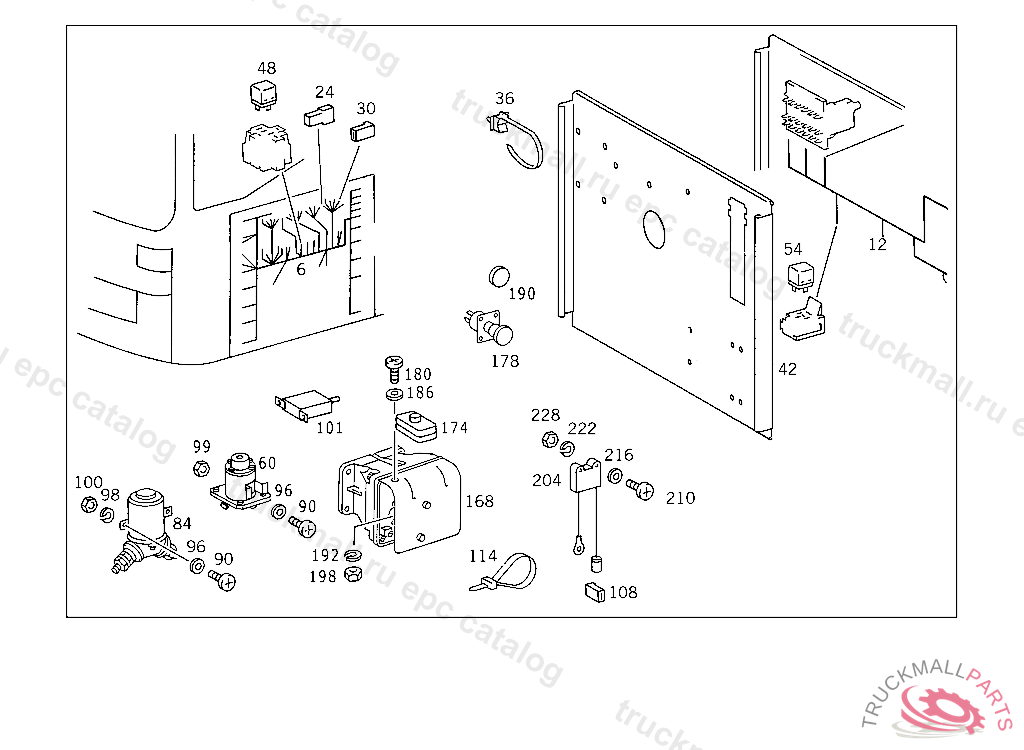

Поз.
Артикул
Описание
6
CABLE HARNESS ELECTRICAL COMPARTMENT
6
CABLE HARNESS ELECTRICAL COMPARTMENT
6
CABLE HARNESS ELECTRICAL COMPARTMENT,053908
6
ELECTRIC CABLE ELECTRICAL COMPARTMENT
6
CABLE HARNESS ELECTRICAL COMPARTMENT
6
CABLE HARNESS ELECTRICAL COMPARTMENT
6
CABLE HARNESS ELECTRICAL COMPARTMENT
6
CABLE HARNESS ELECTRICAL COMPARTMENT
12
CABLE HARNESS FROM SECONDARY INSTRUMENT PANEL PLUGCONNECTION TO BATTERY MASTER SWITCH
12
ELECTRIC CABLE FROM SECONDARY INSTRUMENT PANEL PLUGCONNECTION TO BATTERY MASTER SWITCH
12
CABLE HARNESS FROM SECONDARY INSTRUMENT PANEL PLUGCONNECTION TO BATTERY MASTER SWITCH
12
CABLE HARNESS FROM PLUG CONNECTION TO RELAY
12
CABLE HARNESS FROM SECONDARY INSTRUMENT PANEL PLUGCONNECTION TO BATTERY MASTER SWITCH
12
CABLE HARNESS FROM SECONDARY INSTRUMENT PANEL PLUGCONNECTION TO BATTERY MASTER SWITCH
12
CABLE HARNESS FROM SECONDARY INSTRUMENT PANEL PLUGCONNECTION TO BATTERY MASTER SWITCH
12
CABLE HARNESS FROM PLUG CONNECTION TO RELAY
12
CABLE HARNESS FROM SECONDARY INSTRUMENT PANEL PLUGCONNECTION TO BATTERY MASTER SWITCH,077571
12
CABLE HARNESS FROM SECONDARY INSTRUMENT PANEL PLUGCONNECTION TO BATTERY MASTER SWITCH,081737
12
CABLE HARNESS FROM PLUG CONNECTION TO RELAY,073758
24
PIN BUSHING HOUSING UNIPOLAR
30
PIN BUSHING HOUSING , UP TO IDENT NO. 655197 EXCEPT FOR 500001-599999
36
BRACKET MAIN CABLE HARNESS TO WINDOW LEVEL GIRDER,368972
42
PLATE SECONDARY SWITCHBOARD
42
PLATE SECONDARY SWITCHBOARD
42
COVER PLATE SECONDARY SWITCHBOARD
48
RELAYA32/K6
48
RELAY , Replaced By: A0035459605
48
RELAYA33, Replaced By: A0009822123
48
RELAY , Replaced By: A0035459605
54
RELAY AT APPARATUS PLATE 50 A
60
CONTACTOR BATTERY COMPARTMENT,054583
84
CONTACTOR
90
SCREW CONTROL UNIT TO CAB
90
SCREW HOOK TO BRACKET
96
WASHER BOOT TO CAB FLOOR
96
WASHER , Replaced By: N000433005304
98
LOCK WASHER BRACKET TO STEERING COLUMN END
99
NUT IN CASE OF SUBSEQUENT INSTALLATION
99
NUT , Replaced By: N304032005005
100
NUT TACHOGRAPH TO BRACKET
101
FUSE FUSE BOX
108
PIN BUSHING HOUSING UNIPOLAR
114
LOOM TIE LINE MOUNTING 280 MM
168
RELAY (SAFETY MASTER SWITCH),081737
174
FUSE BOX BIPOLAR,K 100807 MIT AUSNANME VON K 093739
178
SWITCHING ELEMENT (SAFETY MASTER SWITCH)
178
SWITCH P.T.O. UNLOCKING
178
PRESSURE BUTTON (SAFETY MASTER SWITCH)
178
SWITCH (SAFETY MASTER SWITCH), MINOR REPAIRS, Replaced By: A0005452468
178
SWITCH (SAFETY MASTER SWITCH), Replaced By: A0005459006
180
SCREW HOOK TO BRACKET
186
WASHER , Replaced By: N000433005304
186
WASHER BOOT TO CAB FLOOR
190
BLIND CAP OPERATING UNIT
192
LOCK WASHER BRACKET TO STEERING COLUMN END
198
NUT TACHOGRAPH TO BRACKET
204
CURRENT LIMITER TACHOGRAPH,5 584018
204
CURRENT LIMITER , Replaced By: A0015455434
204
CURRENT LIMITER , Replaced By: A0025450334
210
SCREW ADDITIONAL WORK ON FRAME MOUNTED CABLE HARNESS
216
WASHER , Replaced By: N000125004319
216
WASHER BRACKET TO SUPPORT
222
LOCK WASHER T-FITTING TO BRACKET
228
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
CABLE HARNESS
999
CABLE HARNESS
999
CABLE HARNESS
999
CABLE HARNESS
999
CABLE HARNESS
999
CABLE HARNESS , Replaced By: A3575431728
999
PLATE
999
CABLE HARNESS FROM CABLE CONNECTOR TO ENGINE CONNECTION ASR
999
CAP TO PLUG THE FREE HOLES IN INSTRUMENT PANEL
999
SWITCH
999
SWITCH EMERGENCY "OFF"
