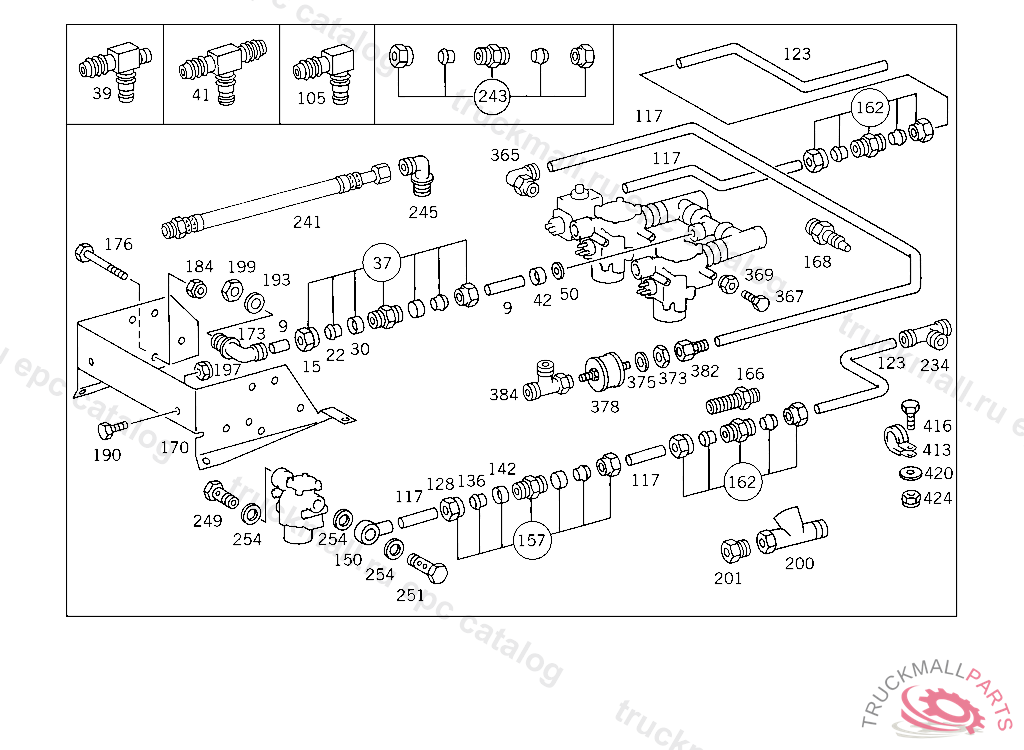

Поз.
Артикул
Описание
9
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
9
HOSE , Replaced By: A0009872927
15
UNION NUT LINE CONNECTION
22
SEAL CONE LINE CONNECTION
30
SLEEVE
37
FITTING (PARTS KIT),LINE RUPTURE
39
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22, 12 MM, VOSS 230
41
ELBOW FITTING HOSE WIDTH, 10 MM,TO M 22
42
THRUST RING COMPRESSED AIR LINE TO T-FITTING AND TO ELBOW FITTING,051257
50
SEAL RING TO 18-MM-DIA. COMPRESSED AIR LINES
105
ELBOW FITTING , Replaced By: A0049905371
105
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
117
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
117
PLASTIC PIPE RISING PIPE 4X6 MM
123
LINE EXHAUST BRAKE, LENGTH AVAILABLE: 3000 MM
128
UNION NUT
136
GLAND , Replaced By: A0019901667
142
SLEEVE LEAK LINE
150
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
157
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
162
FITTING , Replaced By: A0029906071
162
TS DOUBLE FITTING SOLENOID VALVE
166
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
168
FITTING LINE CONNECTION TO FIRE WALL,5 726664
170
BRACKET REAR AXLE REGULATING SOLENOID VALVE
173
ELBOW FITTING ,4 412125
176
SCREW REAR AXLE REGULATING SOLENOID VALVE
184
NUT , Replaced By: N913004008001
190
SCREW BRACKET TO CROSS MEMBER
193
WASHER , Replaced By: N000125015019
193
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
197
NUT , Replaced By: N913004008001
199
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
200
FITTING FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "20"
200
FITTING FRONT-AXLE/REAR-AXLE REGULATING SOLENOID VALVE,CONNECTIONS: "20,21,22"
201
SCREW. UNION SCREW LINE CONNECTION
234
T-FITTING
241
BRAKE HOSE AT CYLINDER, TO BE ADAPTED DURING ASSEMBLY
243
TS DOUBLE FITTING SOLENOID VALVE
245
FITTING FROM PUMP TO CYLINDER
245
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
249
HOLLOW SCREW HEATING CONNECTION
251
HOLLOW SCREW LINE CONNECTION
254
SEAL RING LINE CONNECTION
365
FITTING FROM PUMP TO CYLINDER
365
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
367
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
369
NUT , Replaced By: N913004008001
373
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
375
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
375
WASHER , Replaced By: N000125015019
378
RESERVOIR 3/2-WAY VALVE BREATHING
382
FITTING FITTING TO BRACKET
384
T-FITTING 3/2-WAY VALVE,CONNECTION: "33", UP TO IDENT NO. 5 385481 FROM IDENT NO. SEE STANDARD VERSION
413
CLAMP CABLE HARNESS MOUNTING
413
CLAMP , Replaced By: N916016010211
413
CLAMP , Replaced By: N000000001045
416
SCREW CAB FLOOR COVERING M 6X25
420
WASHER COMPRESSED AIR LINE TO BRACKET
420
WASHER , Replaced By: N009021006208
424
NUT , Replaced By: N913004006001
424
NUT PUMP TO BRACKET
999
ELBOW FITTING FROM PUMP TO CYLINDER, Replaced By: N000000006197
999
SCREW CONNECTION
999
HOSE , Replaced By: A3074290035, +001A0019909871, +001A0029906071
999
SCREW , Replaced By: N304017006016
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
999
WASHER , Replaced By: N009021006208
999
SCREW PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
CLAMP HOSE TO FLANGE AND TO VALVE
