Поз.
Артикул
Описание

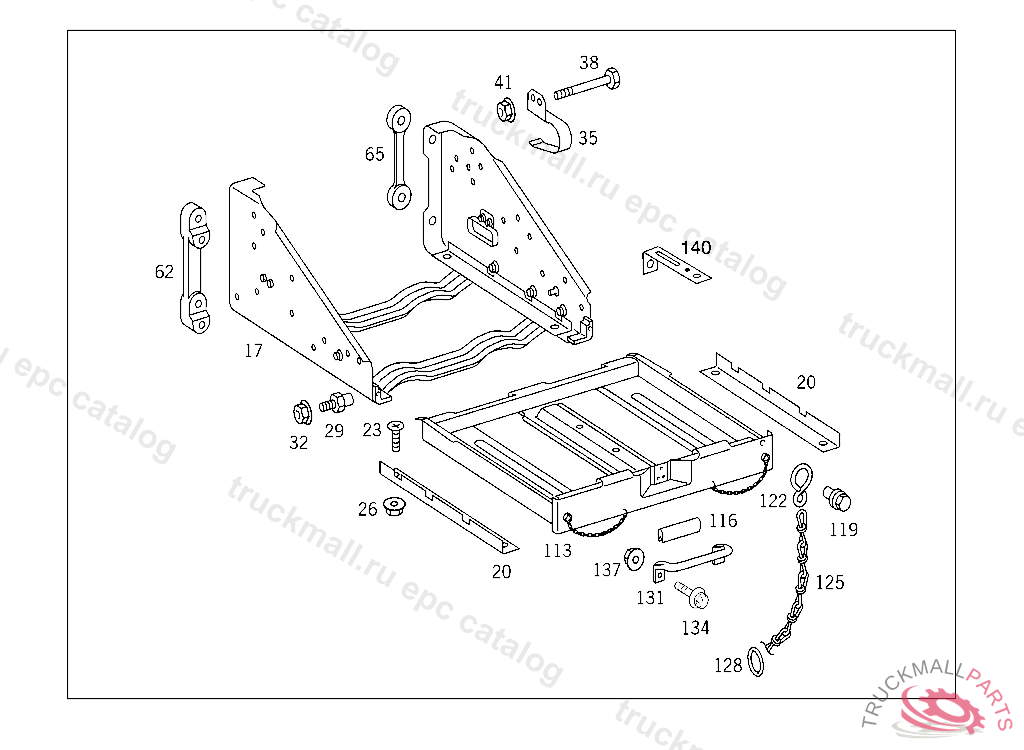

17
BATTERY SUPPORT BATTERY/APPARATUS
20
RAIL BATTERY/APPARATUS
23
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT M10X25
26
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
29
PIN BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
32
NUT HORN TO BRACKET M8
35
SPRING RIGHT
35
SPRING LEFT
38
SCREW PIPE CLAMP
41
NUT HORN TO BRACKET M8
62
SHIM BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER, NO.7390I I I I II
65
SHIM BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER 24MM
113
MOUNTING FRAME BATTERY/APPARATUS
116
EDGE GUARD SECTION AT SHOCK ABSORBER BRACKET, ORDER BY THE METER
119
SCREW BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
122
EYE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT, NOT USED
125
CHAIN BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
128
RING BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
131
HANDLE AT BATTERY FRAME
134
SCREW BRACKET TO SIDE MEMBER M8X20
137
NUT HORN TO BRACKET M8
140
BRACKET LINE MOUNTING
