Mercedes N304017008021 - АВТОЗАПЧАСТЬ

4 S-150 GP+WSK 400 + N 150/10 717.341

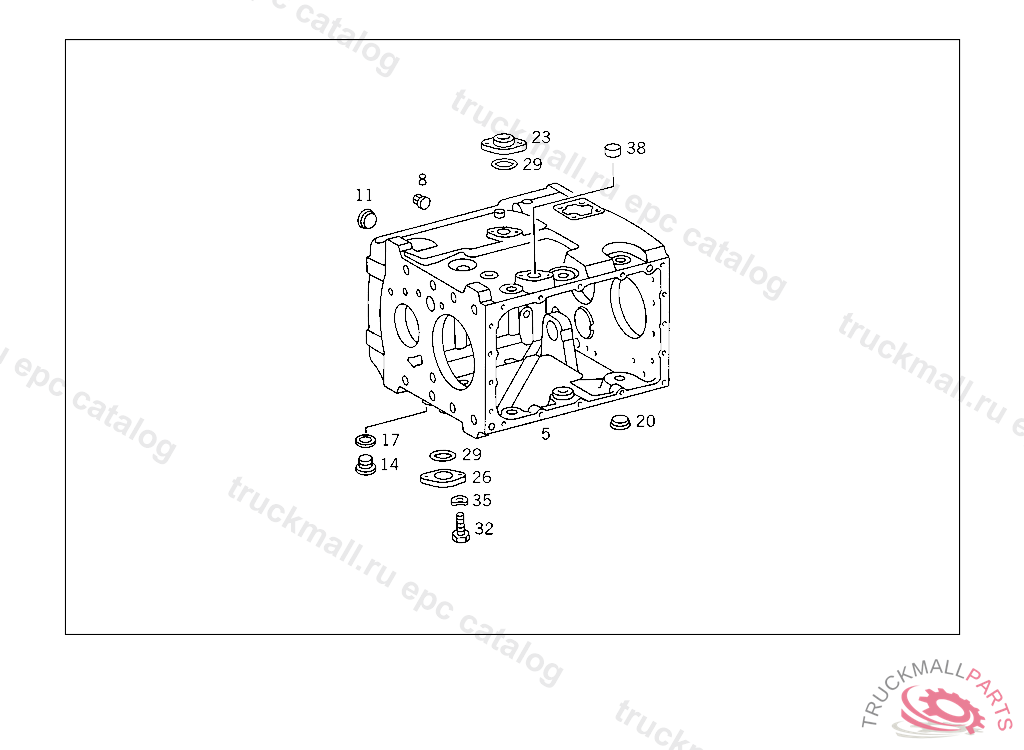

26 TRANSMISSION - 100 TRANSMISSION CASE AND COVER IL. 1

Поз.
Артикул
Описание
5
A0002616801
TRANSMISSION CASE
8
A0009979930
SCREW PLUG OIL FILLING, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
11
A0019971735
PLUG BELL HOUSING
11
A3529970032
SCREW PLUG BELL HOUSING
11
A0009977535
PLUG , Replaced By: A3529970032
14
N000908016008
SCREW PLUG
17
N007603016300
SEAL RING CONNECTION: 1,4 719029
20
N000906018000
SCREW PLUG TOP AND BOTTOM
23
A0002610737
FLANGE HEAT EXCHANGER
26
A0002610837
FLANGE TRANSMISSION CASE,BOTTOM
29
A0119973448
SEAL RING OIL LINES TO TRANSMISSION
32
N304017008021
SCREW PIPE CLAMP
32
N000933008154
SCREW , Replaced By: N304017008021
35
N000137008204
SPRING WASHER , Replaced By: N000137008212
35
N000137008212
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
38
N000443017000
EXPANSION PLUG BELL HOUSING
38
N000443032000
EXPANSION PLUG P.T.O.
