Поз.
Артикул
Описание
5

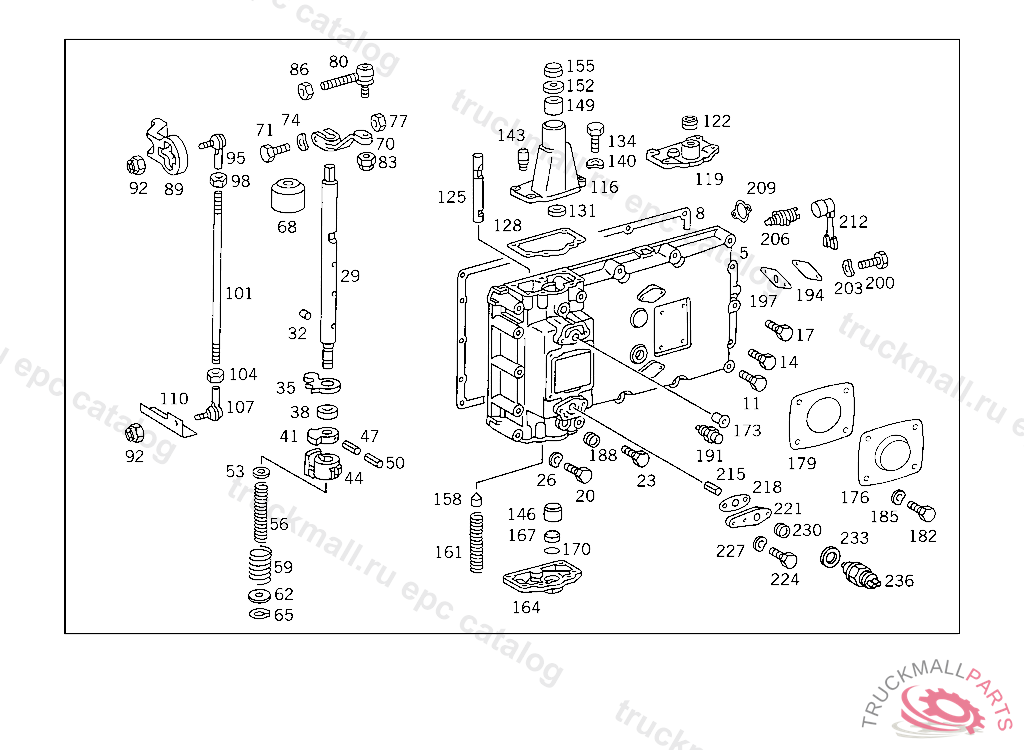

TRANSMISSION CASE COVER GEARSHIFT MECHANISM
8
GASKET LATERAL, WITH AK 6-90 UP TO TRANSMISSION 068147,WITH AK 6-80 UP TO TRANSMISSION 279573
8
GASKET , Replaced By: A3432650679
8
GASKET , Replaced By: A0002650280
11
SCREW MOUNTING AND RAIL TO LEAF SPRING
14
SCREW STRAP TO BRACKET
17
SCREW , Replaced By: N304017010055
17
SCREW , Replaced By: N304017010050
20
SCREW , Replaced By: N304014010004
20
HEXAGON HEAD BOLT CLAMP TO EXHAUST PIPE
23
SCREW CLUTCH TO FLYWHEEL
26
SPRING WASHER STEERING COLUMN BRACKET TO CAB
29
SHAFT (SHIFTING SHAFT),070291,S 6-80304634,AK 6-80
32
ROLLER SHIFTING SHAFT
35
FOLLOWER TOP
38
SPACER RING SHIFTING SHAFT,BOTTOM
41
FOLLOWER SHIFTING SHAFT
44
SHIFTING SEGMENT SHIFTING SHAFT
44
SHIFTING SEGMENT , Replaced By: A0002680446
44
SHIFTING SEGMENT , Replaced By: A0002680246
44
SHIFTING SEGMENT , Replaced By: A0002680246
47
CLAMPING SLEEVE FOLLOWER TO SHIFTING SHAFT
50
CLAMPING SLEEVE FOLLOWER TO SHIFTING SHAFT
59
SPRING SHIFTING SHAFT
62
SPACER WASHER SHIFTING SHAFT
62
SPACER WASHER , Replaced By: A0002681552
65
LOCK SHIFTING SHAFT
65
LOCK RING
68
COVER SHIFT LEVER TO TRANSMISSION
70
SHIFT LEVER
70
SHIFT LEVER , Replaced By: A0002682730
70
SHIFT LEVER , Replaced By: A0002684130
71
SCREW SHIFTING ROD TO JOINT
74
SPRING WASHER STEERING COLUMN BRACKET TO CAB
77
NUT
77
NUT , Replaced By: N304032010002
80
JOINT SHIFTING SHAFT,TOP
83
HEXAGON NUT
83
NUT , Replaced By: A0002680472
83
NUT , Replaced By: N913004010010
83
NUT , Replaced By: N910113010002
86
NUT , Replaced By: N308673014001
86
NUT BRACKET TO SIDE MEMBER,K 035196
89
CONNECTOR SHIFTING TUBE TO SHIFT LEVER
89
CONNECTOR , Replaced By: A0002680428
92
NUT , Replaced By: N910113010000
92
NUT STRAP TO BRACKET
95
BALL JOINT UPPER PULL ROD
95
JOINT , Replaced By: A0002686189
95
JOINT TOP
95
JOINT , Replaced By: A0002684789
98
NUT PULL ROD
101
PULL ROD , TO BE ADAPTED DURING ASSEMBLY
101
SHIFTING ROD , Replaced By: N900331012273
104
NUT STRAP TO SUPPORT,5 149419
107
JOINT BOTTOM
107
JOINT , Replaced By: A0002686289
107
JOINT , Replaced By: A0002684689
110
BRACKET BRACING,003528,5 S 90 GPA001871,5 K 90 GPA
110
BRACKET BRACING,131010
116
HOUSING SHIFTING DOME
116
HOUSING ,074784, Replaced By: A0002683701, +001A0119972246, +004N000933008082
125
SHAFT SHIFT CASE
128
GASKET SHIFT CASE,TOP AND BOTTOM
128
GASKET , Replaced By: A0002685180
131
SEAL RING SHIFTING DOME TO 000 268 12 01
131
SEAL RING SHIFTING DOME,TOP
134
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
134
SCREW REINFORCEMENT TO CROSS MEMBER,5 101104
134
SCREW SUPPORT TO FENDER
134
SCREW , Replaced By: N000933008337
134
SCREW , Replaced By: N304017008018
134
SCREW , Replaced By: A0099900101
140
SPRING WASHER , Replaced By: N000137008212
140
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
143
VALVE BREATHER, UP TO CHASSIS 4 277882 FROM CHASSIS 4 277883 SEE MICROFICHE,MODEL 750.402
143
BREATHER , Replaced By: A3432640089
146
NEEDLE BEARING , THE OLD PART MUST NO LONGER BE INSTALLED THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0002682150
146
NEEDLE BEARING REAR DRIVE SHAFT
149
BUSHING SHIFTING DOME,TOP
152
SEAL RING SHIFTING SHAFT
155
BOOT SHIFTING SHAFT
158
PIN SHIFT CASE,BOTTOM
158
PIN , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0002683974
161
SPRING SHIFT CASE
164
COVER SHIFT CASE,BOTTOM
164
COVER SHIFT CASE,BOTTOM
167
COVER SHIFT CASE,BOTTOM
170
SPACER WASHER SHIFT CASE
173
EXPANSION PLUG HOUSING,BOTTOM
173
COVER , Replaced By: A0009971120
188
PLUG , Replaced By: A0009973435
188
PLUG , Replaced By: A0009977535
188
PLUG , Replaced By: A3529970032
188
COVER , Replaced By: A0009977535
188
SCREW PLUG BELL HOUSING
188
SCREW PLUG
191
DETENT TRANSMISSION CASE
191
DETENT , Replaced By: A0002601873
191
STOP , Replaced By: A0002600273
194
COVER LATERAL
197
GASKET LATERAL
197
GASKET , Replaced By: A0002685580
200
SCREW BRACKET TO TAIL LAMP BRACKET
203
SPRING WASHER ALTERNATOR CONNECTION D+
215
PIN
218
GASKET VALVE TO TRANSMISSION
218
GASKET , Replaced By: A0002685080
221
SLOTTED GATE
224
SCREW CLAMP TO BRACKET AND TO PIPE
227
SPRING WASHER , Replaced By: N000137008212
227
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
233
SEAL RING IDLE POSITION SWITCH TO TRANSMISSION CASE COVER, AS REQUIRED 0.80 MM,4 291253
233
SEAL RING IDLE POSITION SWITCH TO TRANSMISSION CASE COVER, AS REQUIRED 1.40 MM,4 291253
233
SEAL RING IDLE POSITION SWITCH TO TRANSMISSION CASE COVER, AS REQUIRED 1.20 MM,4 291253
233
SEAL RING NEUTRAL POSITION
233
SEAL RING NEUTRAL POSITION SWITCH,4 920019
233
SEAL RING IDLE POSITION SWITCH TO TRANSMISSION CASE COVER, AS REQUIRED 1.60 MM,4 291253
233
SEAL RING SWITCH TO CASE COVER
233
SEAL RING , Replaced By: N007603018100
236
SWITCH , Replaced By: A0015458214
236
SWITCH , Replaced By: A0015455709
236
SWITCH
236
SWITCH
