Поз.
Артикул
Описание

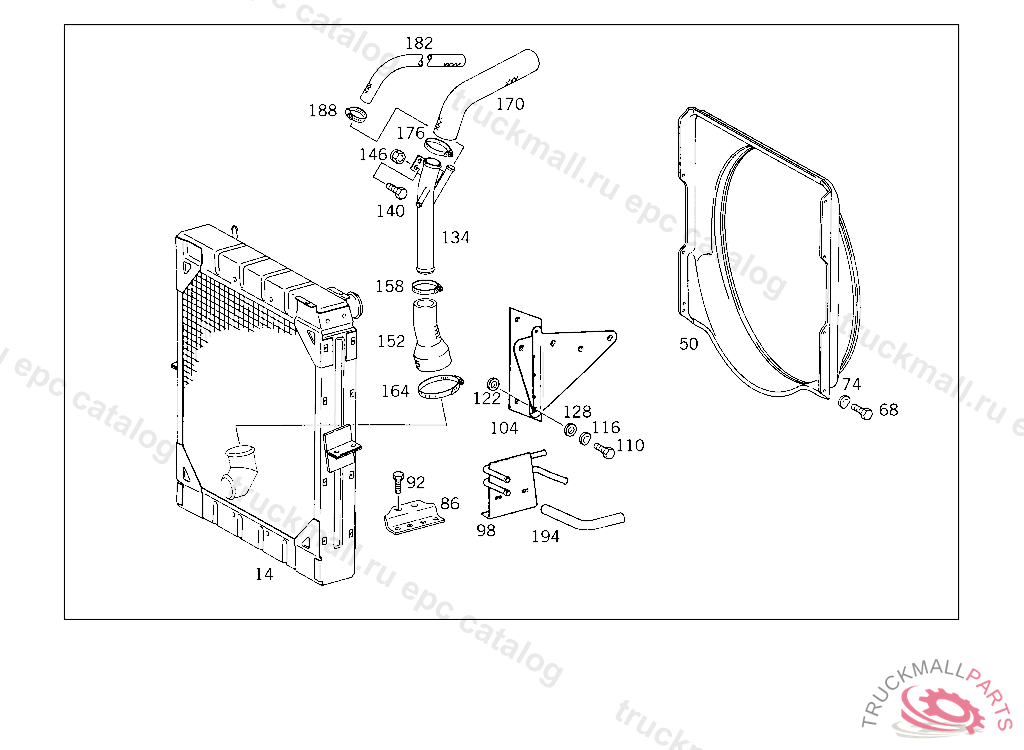

14
RADIATOR LESS TANK
50
FAN SHROUD RADIATOR
68
SCREW , Replaced By: N304017006018
68
SCREW COVER PLATE TO COVER PLATE M 6 X 12
74
SPRING WASHER LICENSE PLATE TO BRACKET
86
SUPPORT RADIATOR
92
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
92
SCREW , Replaced By: N304017010028
98
LINE HEATING, TO CAB,4 829878
104
BRACKET OIL DIPSTICK TO RADIATOR
110
SCREW , Replaced By: N304017006020
110
SCREW LICENSE PLATE TO BRACKET
116
SPRING WASHER LICENSE PLATE TO BRACKET
122
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
128
WASHER COMPRESSED AIR LINE TO BRACKET
128
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
134
LINE COOLING WATER PIPE,4 829878
140
SCREW END PIECE TO EXHAUST PIPE M 10X25
146
NUT , Replaced By: N910113010000
146
NUT STRAP TO BRACKET
152
HOSE FROM RADIATOR TO OIL COOLER
158
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
158
CLAMP , Replaced By: N000000000671
164
CLAMP , Replaced By: N000000000674
164
CLAMP HOSE 70-90X13 MM
170
HOSE FROM COOLING WATER LINE TO WATER PUMP,4 829878
176
CLAMP , Replaced By: N000000000671
176
CLAMP SUCTION LINE TO OIL PUMP 40-60X13 MM
182
HOSE FROM WATER PUMP TO EXPANSION TANK 28X37X80,5 022370 ORDER BY THE METER
188
CLAMP , Replaced By: N000000000670
188
CLAMP
194
HOSE HEATING FEED,4 829878
999
RADIATOR OIL,5 360279
999
TUBE FEED AND RETURN LINES TO OIL COOLER, LENGTH AVAILABLE 3000 MM
999
SCREW PLUG OIL COOLER,5 360280
999
RADIATOR OIL,5 360280
999
SEAL CONE LINE MOUNTING
999
ELBOW FITTING LINE CONNECTION
999
FITTING OIL LINE TO TRANSMISSION
999
FITTING OIL LINE TO RADIATOR
999
SEAL RING OIL LINES TO TRANSMISSION
999
FITTING OIL FILTER, UP TO IDENT NO. 5 274831 EXCEPT FOR 5 264779, 5 268469
999
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
999
RADIATOR STRUT RADIATOR, 352.00/1,353,358 UP TO CHASSIS 676464 EXCEPT FOR 500001-599999,TYP 360 UP TO CHASSIS 676464 352.00/1,353,358 UP TO CHASSIS 4 153178 EXCEPT FOR 515187-599999,TYP 360 UP TO CHASSIS 4 153178 FROM CHASSIS SEE SA 16880
999
SUPPORT
999
HOSE FROM RADIATOR OUTLET TO WATER PUMP
999
HOSE RADIATOR, ORDER BY THE METER
999
RADIATOR ,4 830413
999
HOSE RETURN TO OIL FILTER
999
HOSE RETURN TO OIL FILTER
999
CLAMP FEED LINE TO THERMOSTAT
999
FILTER OIL FILTER
999
FILTER , Replaced By: A3762700498
999
COVER , Replaced By: A3762700098
999
BRACKET LINE TO SIDE MEMBER
999
BRACKET OIL LINE TO ENGINE SUPPORT
999
BRACKET LINE TO CAB CONSOLE
999
BRACKET OIL LINE TO OIL COOLER
999
BRACKET COMPRESSED AIR LINE TO LEFT SIDE MEMBER
999
BRACKET OIL FILTER
999
RADIATOR
999
RADIATOR ,4 428845
999
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK
999
HOSE DE-AERATION LINE TO HEATER AND TO RADIATOR
999
HOSE LOWER COOLING WATER LINE TO RADIATOR & OIL COOLER,4 829879 ODER ADDITIONALLY: 676 501 00 81
999
BRACKET COOLING WATER PIPE TO SIDE MEMBER,4 829879
999
FAN SHROUD
999
SCREW BRACKET TO TRANSMISSION,5 360279
999
HOSE OIL LINE CONNECTION
999
HOSE FEED AND RETURN
999
RADIATOR , Replaced By: A3875002903
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO.: 5 141771, Replaced By: A4010100940
999
BRACKET OIL DIPSTICK TO RADIATOR
999
WASHER HIGH PRESSURE HOSE TO BRACKET
999
SCREW PLUG , Replaced By: N000908014009
999
SCREW PLUGTO 000 553 03 05,000 553 18 05,
999
SCREW PLUG , Replaced By: N000908026008
999
SCREW PLUG , Replaced By: A0009973532
999
SCREW COVER PLATE TO BRACKET
999
SCREW , Replaced By: N304017006016
999
SCREW , Replaced By: N304017008021
999
SCREW , Replaced By: N304017008034
999
SCREW , Replaced By: N304017008016
999
SCREW BRACKET TO FRAME SIDE MEMBER
999
GLAND , Replaced By: A0019901167
999
SEAL RING FUEL LINE TO FEED PUMP
999
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
999
SCREW PUMP TO BRACKET
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
SCREW PIPE CLAMP
999
SPRING WASHER SHIFTING CYLINDER TO YOKE
999
LOCK WASHER FITTING TO BRACKET
999
NUT END PIECE TO EXHAUST PIPE
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
UNION NUT LINE MOUNTING
