Поз.
Артикул
Описание

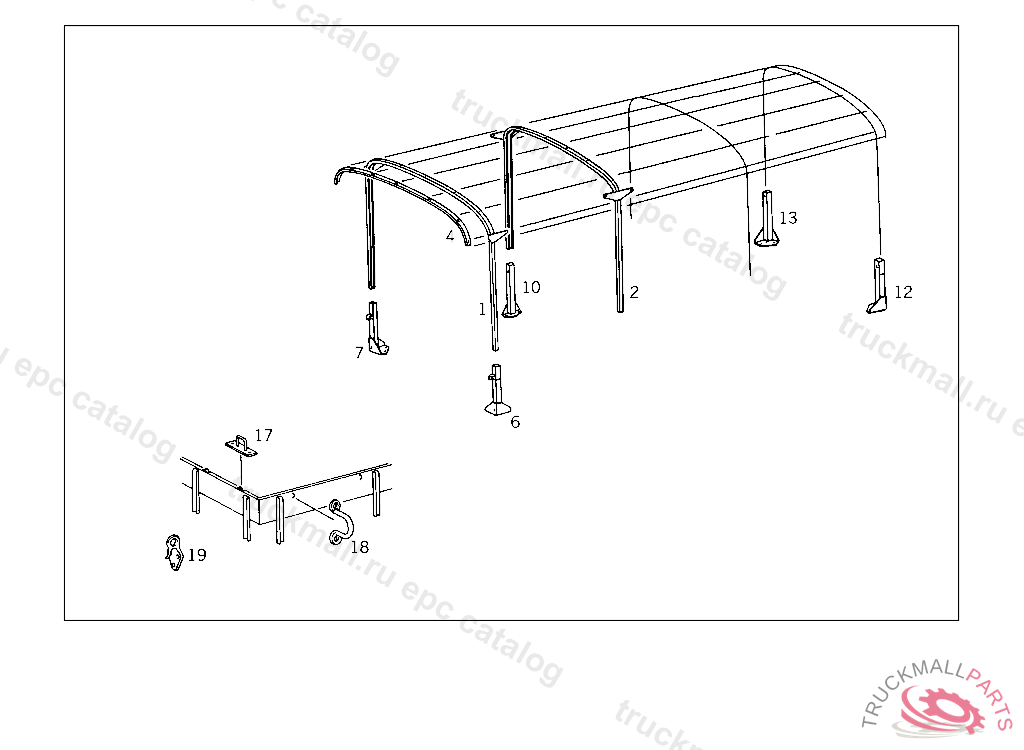

1
CLAMP , Replaced By: A3527900230
1
CLAMP FRONT AND REAR
2
CLAMP FRONT AND REAR
4
CLAMP AT TARPAULIN LATHS FRONT AND REAR
6
FOOT
7
FOOT
10
FOOT
12
FOOT
13
FOOT
17
CRAMP , Replaced By: A4047780032
17
CRAMP ON PLATFORM FRONT PANEL
18
CRAMP PLATFORM SIDE AND REAR PANELS, 600329
19
EYE
999
CRAMP , Replaced By: A0009880083
999
CRAMP , Replaced By: A0009880383
999
CLAMP CENTRAL
999
CLAMP , Replaced By: A3527900130
999
TARPAULIN BOW , Replaced By: A3527900230
999
TARPAULIN BOW , Replaced By: A3527900130
999
FOOT , Replaced By: A3127900232
999
FOOT , PART NUMBER HAS BEEN CONVERTED TO THE NEW MODE OF WRITING, Replaced By: A3127900532
999
FOOT , Replaced By: A3127900632
999
WOOD SCREW CRAMP TO FRONT PANEL
999
WOOD SCREW BINDING RAIL TO PLATFORM FRONT PANEL,604332
999
WASHER END BOW TO TARPAULIN FRAME
999
WASHER TARPAULIN PLATE TO TARPAULIN BOW
999
WASHER HIGH PRESSURE HOSE TO BRACKET
999
SCREW BRACKET TO CAB, NOT USED
999
SCREW CLAMP MOUNTING M 6X45
999
SCREW REAR SIDE PANEL M8X50
999
SCREW TARPAULIN BOW FOOT TO PLATFORM
999
SCREW , Replaced By: N304017010030
999
SCREW , Replaced By: N304017010053
999
SCREW PIPE ELBOW TO BRACKET M 10X50
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
NUT PUMP TO BRACKET
999
NUT , Replaced By: N913004006001
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
