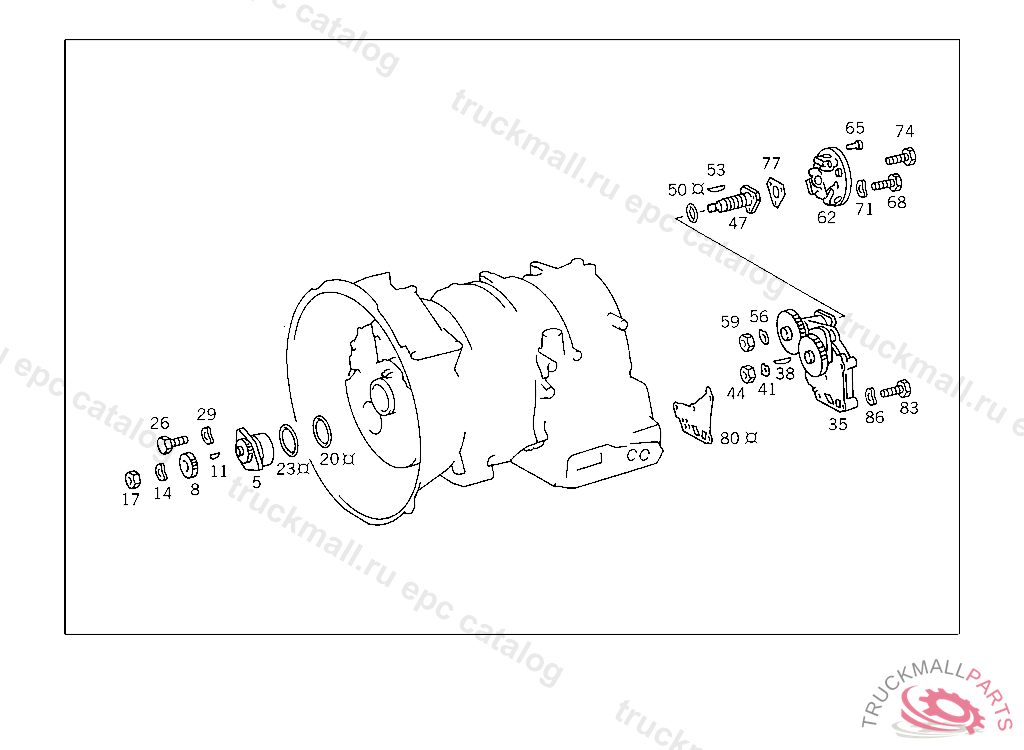

Поз.
Артикул
Описание
5
OIL PUMP PRIMARY, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
GEAR OIL PUMP
11
WOODRUFF KEY PRIMARY PUMP TO CONVERTER HOUSING
14
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
14
SPRING WASHER , Replaced By: N000137008212
17
NUT PRIMARY PUMP TO CONVERTER HOUSING
20
SEAL RING PRIMARY PUMP 77 MM
20
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3059970345
23
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A3059970245
23
SEAL RING PRIMARY PUMP 82 MM
26
SCREW , Replaced By: N304017008027
26
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
29
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
29
SPRING WASHER , Replaced By: N000137008212
35
OIL PUMP , Replaced By: A3072700297
35
OIL PUMP SECONDARY, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
38
WOODRUFF KEY PRIMARY PUMP TO CONVERTER HOUSING
41
LOCK GOVERNOR
44
NUT PRIMARY PUMP TO CONVERTER HOUSING
47
DRIVE SHAFT GOVERNOR
50
SEAL RING , Replaced By: A3072720555
50
SEAL RING OUTPUT SHAFT,FRONT 26 MM
53
WOODRUFF KEY GOVERNOR
56
LOCK GOVERNOR
59
NUT FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
62
GOVERNOR SECONDARY PUMP
65
FILTER
68
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
71
SPRING WASHER LICENSE PLATE TO BRACKET
74
SCREW BRACKET TO CROSS CONNECTION STRUT
74
SCREW , Replaced By: N304017008034
77
LOCK GOVERNOR TO GOVERNOR SHAFT
80
GASKET , Replaced By: A3052771780
80
GASKET SECONDARY PUMP TO TRANSMISSION CASE
83
SCREW FLEXIBLE METAL TUBE TO CONNECTOR AND TO COLLAR
83
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
86
SPRING WASHER , Replaced By: N000137008212
86
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
