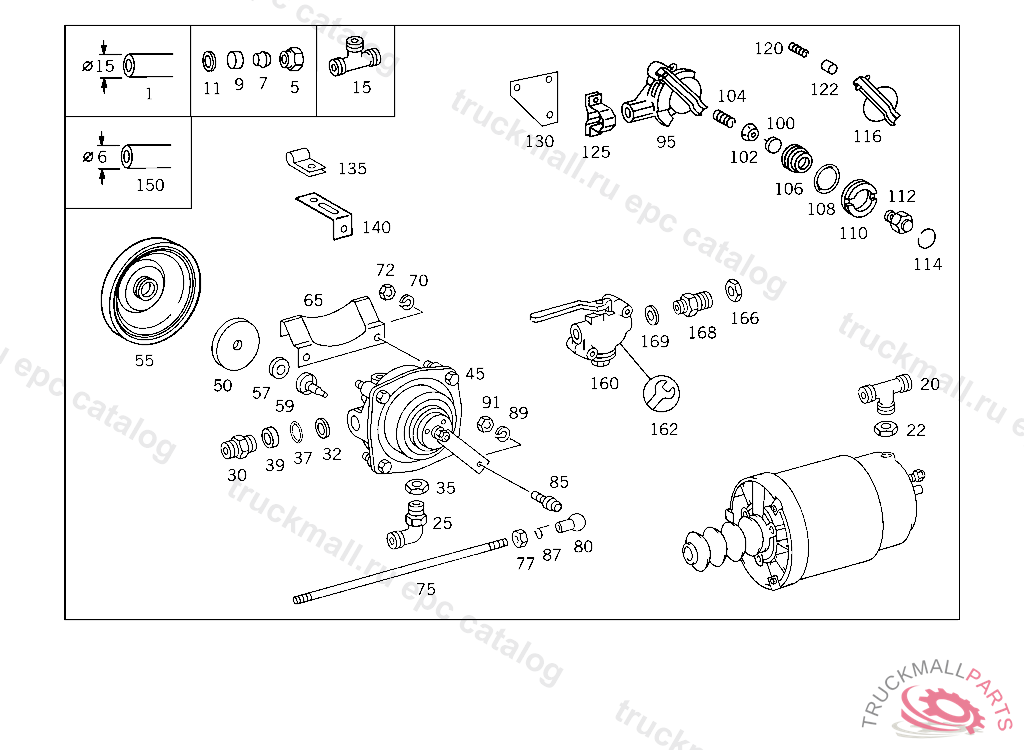

Поз.
Артикул
Описание
1
TUBE FROM HIGH PRESSURE HOSE TO STEERING, LENGTH AVAILABLE: 3000 MM
1
LINE , Replaced By: A0005516256
5
UNION NUT AIR COMPRESSOR LINE CONNECTION
5
UNION NUT LINE CONNECTION
5
UNION NUT BUTT SCREW CONNECTION
7
GLAND LINE CONNECTION
9
THRUST RING BUTT SCREW CONNECTION
11
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
11
SEAL RING , Replaced By: N007603012121
15
T-FITTING , Replaced By: A0009902370
15
T-FITTING BETWEEN THE LINES
15
T-FITTING BETWEEN THE LINES
20
THREADED UNION BRAKE CYLINDER
22
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
25
ELBOW FITTING CHECK VALVE TO AIR RESERVOIR
30
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
32
SEAL RING LINE CONNECTION
35
NUT CHECK VALVE TO AIR RESERVOIR
37
O-RING CHECK VALVE TO AIR RESERVOIR
39
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
39
THRUST RING CHECK VALVE TO AIR RESERVOIR
45
BRAKE VALVE TRAILER BRAKE VALVE, 673429
45
BRAKE VALVE TRAILER BRAKE VALVE, 673429
45
BRAKE VALVE TRAILER BRAKE VALVE, 673429
45
BRAKE VALVE TRAILER BRAKE VALVE, 673429
45
BRAKE VALVE TRAILER BRAKE VALVE, 673429
45
BRAKE VALVE TRAILER BRAKE VALVE, 673429
45
BRAKE VALVE TRAILER BRAKE VALVE, 673429
45
BRAKE VALVEBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
45
BRAKE VALVE TRAILER BRAKE VALVE, 673429
45
BRAKE VALVEBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
45
BRAKE VALVEBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
45
BRAKE VALVEBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
50
CUPBOSCH
55
CUPBOSCH
55
CUPBOSCH
55
CUPBOSCH
57
WASHER
57
WASHER
57
WASHER
59
VALVE DISCTO 000 429 48 30
65
BRACKET TRAILER BRAKE VALVE
65
BRACKET TRAILER BRAKE VALVE
70
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
72
NUT BRACKET TO SUPPORT AND TO END PIECE
75
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
75
PULL ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT, TO BE ADAPTED DURING ASSEMBLY
75
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
75
PULL ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
77
NUT
77
NUT
80
ANGLE JOINT DUMPER PUMP
80
ANGLE JOINT DUMPER PUMP
85
BALL SOCKET ROD TO BALL PIVOT
85
BALL SOCKET ROD TO BALL PIVOT
87
SECURING CLIP. CIRCLIP
87
SECURING CLIP. CIRCLIP
89
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
89
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
91
NUT
91
NUT
95
BRAKE LINE COUPLING AT REAR CROSS MENBER
95
BRAKE LINE COUPLING AT REAR CROSS MENBER
95
BRAKE LINE COUPLING , Replaced By: A0004297530
95
BRAKE LINE COUPLING AT REAR CROSS MENBER
100
VALVE DISCTO 000 429 48 30
100
VALVE DISCTO 000 429 48 30
102
VALVE DISCTO 000 429 48 30
102
VALVE DISCTO 000 429 48 30
104
SPRINGTO 000 429 16 30
104
SPRINGTO 000 429 16 30
106
VALVE PARTTO 000 429 16 30
106
VALVE PARTTO 000 429 16 30
108
GASKETTO 000 429 16 30
108
GASKETTO 000 429 16 30
110
NUTTO 000 429 16 30
110
NUTTO 000 429 16 30
112
VALVE TAPPETTO 000 429 16 30
112
VALVE TAPPETTO 000 429 16 30
114
SNAP RINGTO 000 429 16 30
114
SNAP RINGTO 000 429 16 30
116
COVERTO 000 429 16 30,BOSCH
116
COVERTO 000 429 16 30,BOSCH
120
SPRINGTO 000 429 16 30
120
SPRINGTO 000 429 16 30
122
SPRING CAPSULETO 000 429 16 30
125
BRACKET
130
BRACKET
135
CLAMP , Replaced By: N916016011202
135
CLAMP AT BRACKET
140
BRACKET , Replaced By: A3184280240
140
BRACKET LINE MOUNTING
150
LINE , Replaced By: A0004296201
150
LINE BRAKES 6X0.7 MM, LENGTH AVAILABLE 25000 MM
160
SHUT-OFF COCK
160
SHUT-OFF COCK
162
REPAIR KITTO 000 429 14 31,5 116581
166
FITTING LINE MOUNTING
168
DOUBLE FITTING BETWEEN THE LINES, BUTT CONNECTION
169
SEAL RING LINE CONNECTION
999
LOCK WASHER FITTING TO BRACKET
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
SCREW END PIECE TO EXHAUST PIPE M 12X30
999
SCREW PIPE CLAMP
999
SNAP RING
999
BALL STUD. BALL PIVOT PULL ROD TO BRACKET
999
SCREW AT BRACKET, 674068-875476
999
NUT STRAP TO SUPPORT,5 149419
999
NUT BALL PIVOT TO LEVER
999
SCREW BRACKET TO FRAME SIDE MEMBER
999
SCREW , Replaced By: N304017012020
999
SCREW BRACKET TO SIDE MEMBER
999
SCREW , Replaced By: N304017008021
999
SCREWM 8X40
999
RIVETTO 000 429 75 30
999
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
999
COTTER PINTO 000 429 16 30
999
COTTER PIN STRAP TO SUPPORT
999
SCREW PROTECTION PLATE TO BRACKET
999
SCREW FROM TRAILER BRAKE VALVE TO SHUT-OFF COCK
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
CLAMP , Replaced By: A6739950001
999
CLAMP LINE MOUNTING
999
ANGLE LINE MOUNTING
999
PIN INTERMEDIATE LEVER
999
PIN PULL ROD TO BRAKE LEVER,REAR AXLE
999
BRACKET
999
SEAL RINGTO 000 429 16 31,4 940458
999
SEAL RINGBOSCH
999
SEAL RINGTO 000 429 16 30
999
REPAIR KITWABCO
999
SEAL RINGTO 000 429 16 30
999
HANDLETO 000 429 16 31,4 940458
999
CUPBOSCH
999
REPAIR KITKNORR
999
BRAKE LINE COUPLING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004296730
999
SEAL RINGTO 000 429 16 31,4 940458
999
SPRINGTO 000 429 16 31,4 940458
999
SPRINGTO 000 429 16 31,4 940458
999
COVERWABCO
999
VALVETO 000 429 48 30,4 393552
999
COVERTO 000 429 48 30
999
VALVE CONEBOSCH
999
VALVE CONE , Replaced By: A0004290391
999
SEAL RINGTO 000 429 75 30
999
GROMMET FITTING, 807793
999
THRUST RING
999
PIN
