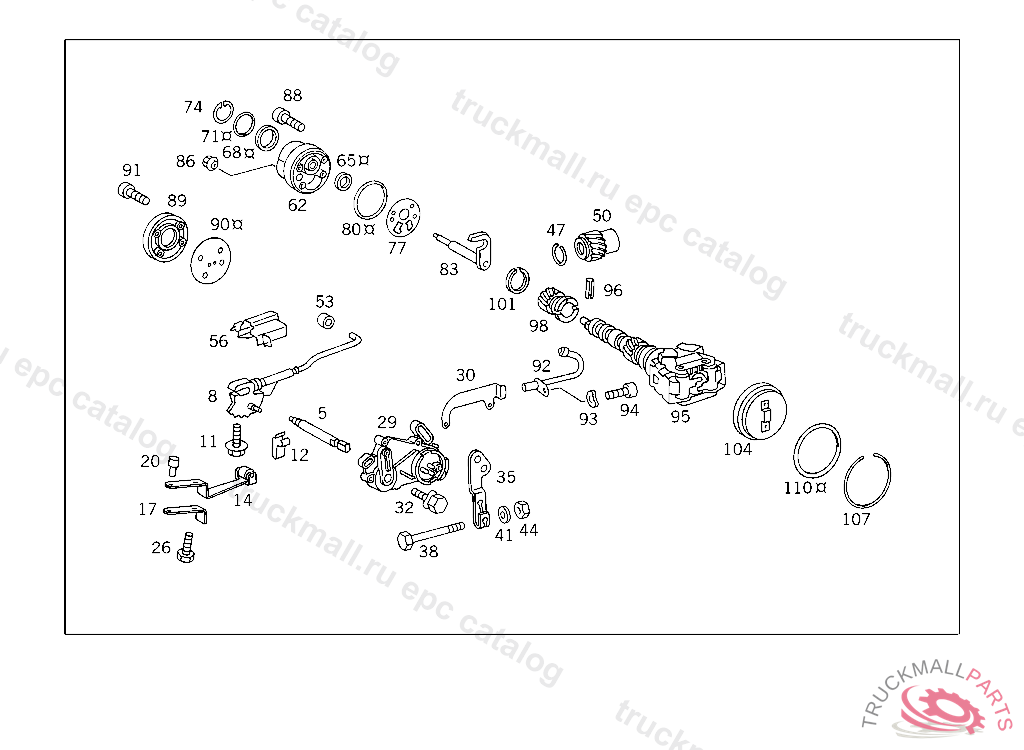

Поз.
Артикул
Описание
5
CONTROL SHAFT RANGE SELECTOR
8
DETENT
11
COMBINATION BOLT , Replaced By: N000912006018, +001N000137006204
12
SHIM AS REQUIRED 1.2 MM,SCHWARZ
14
SPRING DETENT-PLATE LEAF SPRING
17
BRACKET DETENT-PLATE LEAF SPRING
20
PIN DETENT-PLATE LEAF SPRING
26
SCREW LICENSE PLATE TO BRACKET
26
SCREW , Replaced By: N304017006020
29
SWITCH STARTER LOCK-OUT AND BACK-UP LIGHT SWITCH AND RANGE CONTACT TRANSMITTER
32
COMBINATION BOLT BATTERY FRAME TO CONSOLE, TOP
35
LEVER RANGE SELECTOR
38
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
38
SCREW , Replaced By: N304017006012
41
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
41
WASHER COMPRESSED AIR LINE TO BRACKET
44
NUT BALL PIVOT TO LEVER
47
SNAP RING OUTPUT SHAFT
50
HELICAL GEAR DRIVING
53
ROLLER PARKING INTERLOCK
56
GUIDE PARKING INTERLOCK
62
OIL PUMP SECONDARY PUMP
65
SEAL RING
68
SEAL RING
71
SEAL RING
74
LOCK RING FIRST BRAKE
77
INTERMEDIATE PLATE
80
SEAL RING SECONDARY PUMP
83
LEVER
86
NUT
88
SCREW CONTROL SHAFT TO ENGINE
88
SCREW , Replaced By: N000912006170
95
GOVERNOR , Replaced By: A6012700074
95
GOVERNOR CENTRIFUGAL GOVERNOR
96
CLAMPING SLEEVE
98
HELICAL GEAR CENTRIFUGAL GOVERNOR
101
SNAP RING
104
COVER CENTRIFUGAL GOVERNOR
107
SNAP RING CENTRIFUGAL GOVERNOR COVER
110
SEAL RING CENTRIFUGAL GOVERNOR COVER
