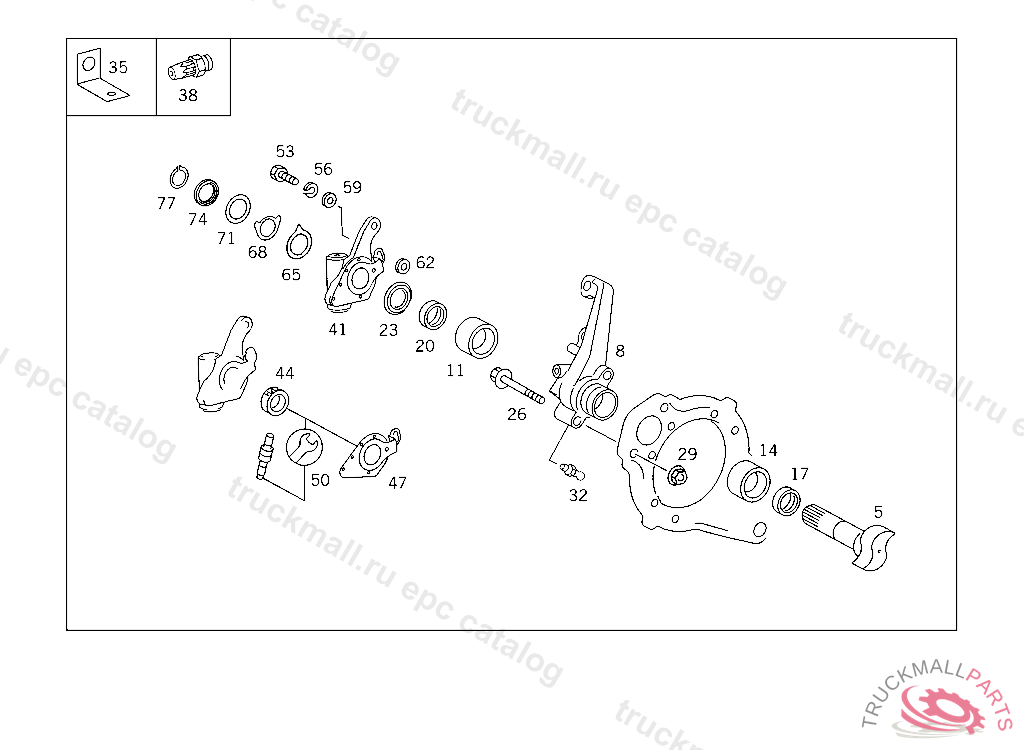

Поз.
Артикул
Описание
5
BRAKE CAMSHAFT WITH LUBRICATING BORE,LEFT
5
BRAKE CAMSHAFT WITH LUBRICATING BORE,RIGHT
5
BRAKE CAMSHAFT , Replaced By: A6234210236
5
BRAKE CAMSHAFT , Replaced By: A6234210136
8
BEARING BRACKET , Replaced By: A6524211206
8
BEARING BRACKET , Replaced By: A6234202078
8
BEARING BRACKET
8
BEARING BRACKET , Replaced By: A6524201078
8
BEARING BRACKET , Replaced By: A6524200978
8
BEARING BRACKET , Replaced By: A6234202078
8
BEARING BRACKET , Replaced By: A6524200578
8
BRAKE ANCHOR RIGHT
8
BEARING BRACKET LEFT
11
BUSHING OUTSIDE
14
BUSHING INSIDE
17
SEAL RING INSIDE BEARING BRACKET
17
SEAL RING INSIDE BEARING BRACKET
17
SEAL RING , Replaced By: A0129974147
17
SEAL RING INSIDE BEARING BRACKET
17
SEAL RING , Replaced By: A0149972247
20
SEAL RING , Replaced By: A0129973647
20
SEAL RING , Replaced By: A0129973747
20
SEAL RING OUTSIDE BEARING BRACKET
20
SEAL RING OUTSIDE BEARING BRACKET
20
SEAL RING OUTSIDE BEARING BRACKET
23
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT
26
SCREW BEARING BRACKET TO BRAKE ANCHOR
29
NUT BEARING BRACKET TO BRAKE ANCHOR
29
NUT , Replaced By: A0009905750
32
GREASE NIPPLE
41
ADJUSTER SLACK ADJUSTER
44
WORM GEAR"SAB"
47
CONTROL UNIT
50
REPAIR KIT , Replaced By: A0004200092
50
REPAIR KIT SLACK ADJUSTER "SAB"
53
HEXAGON HEAD BOLT CONTROL ARM, LINKAGE ADJUSTER ON BEARING BRACKET M8X12
56
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
59
WASHER EXHAUST MUFFLER TO STRAP
59
WASHER , Replaced By: N000125008443
65
STOP WASHER SLACK ADJUSTER TO BRAKE SHAFT
71
SPACER WASHER ADJUSTER,AS REQUIRED 2.50 MM
71
SPACER WASHER ADJUSTER,AS REQUIRED 2.00 MM
71
SPACER WASHER ADJUSTER,AS REQUIRED 0.50 MM
71
SPACER WASHER ADJUSTER,AS REQUIRED 1.50 MM
74
SPACER WASHER ADJUSTER TO BRAKE CAMSHAFT
77
LOCK RING CLUTCH LEVER TO PEDAL SHAFT
