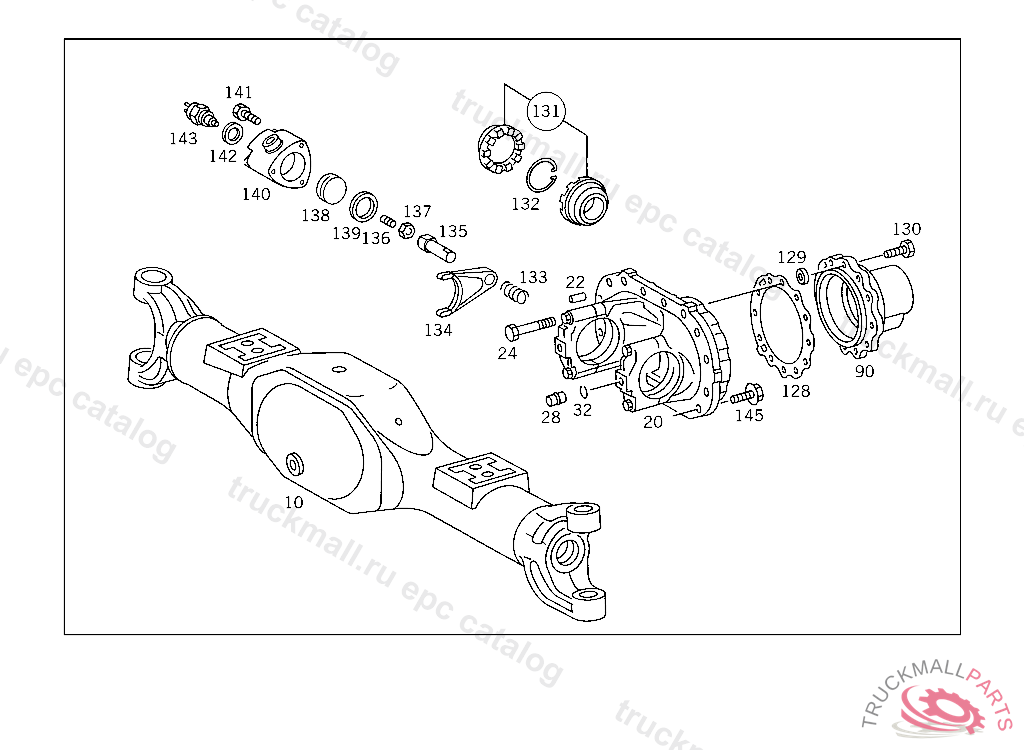

Поз.
Артикул
Описание
10
AXLE CASING FRONT AXLE
20
AXLE HOUSING
22
CYLINDRICAL PIN , Replaced By: N000007008101
24
SCREW BEARING COVER TO AXLE HOUSING
28
PIN AXLE HOUSING
32
SNAP RING25X1.2 MM, MAN AXLE
90
HOUSING , Replaced By: A3553530807, +001N000906020003
90
HOUSING. OIL COLLECTOR (PINION HOUSING)
128
SPACER WASHER PINION HOUSING,AS REQUIRED 1.00 MM, NOT USED
128
SPACER WASHER PINION HOUSING,AS REQUIRED 0.10 MM, NOT USED
128
SPACER WASHER PINION HOUSING,AS REQUIRED 0.15 MM
128
SPACER WASHER DIFFERENTIAL HOUSING,AS REQUIRED 0.50 MM
129
SEAL RING PINION HOUSING TO AXLE HOUSING
130
SCREW , Replaced By: A9429901304
130
SCREW APPARATUS SUPPORT TO FRAME
131
DIFFERENTIAL LOCK PARTS KIT
132
LOCK FOLLOWER
133
SPRING SHIFTING FORK
134
SHIFTING FORK DIFFERENTIAL LOCK
135
SHAFT SHIFTING ROD,232175
136
HEADLESS SETSCREW TRANSVERSE DIFFERENTIAL LOCK
137
NUT
138
PISTON TRANSVERSE DIFFERENTIAL LOCK
139
SEAL RING SHIFTING CYLINDER
140
CYLINDER TRANSVERSE DIFFERENTIAL LOCK
140
CYLINDER , Replaced By: A3463530655
141
SCREW BRACKET TO BEARING BRACKET
142
SEAL RING SWITCH TO CASE COVER
143
SWITCH
143
SWITCH , Replaced By: A0015455709
145
SCREW BRACKET TO BRACKET
145
SCREW REAR AXLE HOUSING TO AXLE CASING M 12X35
145
SCREW , Replaced By: A0069908101
999
SEAL RING
999
SEAL RING
999
NEEDLE BEARING KINGPIN,TOP AND BOTTOM 50.00 MM
999
SEAL RING DRIVE SHAFT,AXLE HOUSING SIDE,V 199554
999
REPAIR KIT (PARTS KIT),STEERING KNUCKLE BEARING, BOTTOM,V 492664
999
JOINT , Replaced By: A3813370511
999
KINGPIN , Replaced By: A3463300219
999
BUSHING DRIVE SHAFT UNIVERSAL JOINT CROSS TO 3463300435,V199554
999
SCREW UNIVERSAL JOINT,OUTSIDE LEFT AND RIGHT, FROM FRONT AXLE V233747 ALSO INSTALLED ON V235670,V235671,V236075,V236076
999
FOLLOWER DRIVE SHAFT UNIVERSAL JOINT CROSS
999
LOCK UNIVERSAL JOINT,AS REQUIRED 1.950 MM
999
LOCK UNIVERSAL JOINT,AS REQUIRED 1.975 MM,V199554
999
LOCK UNIVERSAL JOINT,AS REQUIRED 2.000 MM,V199554
999
LOCK UNIVERSAL JOINT,AS REQUIRED 2.025 MM,V199554
999
LOCK UNIVERSAL JOINT,AS REQUIRED 2.050 MM
999
LOCK UNIVERSAL JOINT,AS REQUIRED 2.075 MM,V199554
999
LOCK UNIVERSAL JOINT,AS REQUIRED 2.100 MM, FROM FRONT AXLE V233747 ALSO INSTALLED ON V235670,V235671,V236075,V236076
999
SCREW PLUG
999
SCREW PLUG 4/2-WAY VALVE
999
SCREW PLUG AIR DEHYDRATOR
999
GREASE NIPPLE PROTECTIVE TUBE
999
GREASE NIPPLE
999
SEAL RING SHUT-OFF VALVE,CONNECTION: "40"
