Поз.
Артикул
Описание

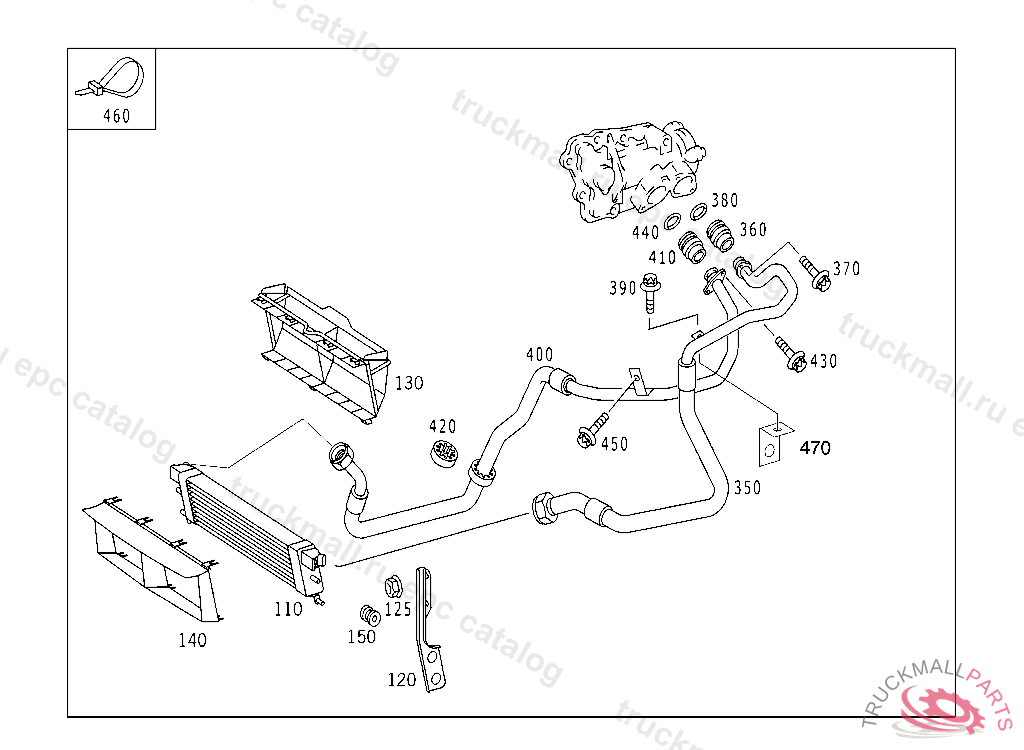

110
OIL COOLER ENGINE OIL COOLER
120
BRACKET OIL COOLER TO RADIATOR REST CROSS MEMBER
125
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
125
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
130
AIR BAFFLE TO OIL COOLER
140
AIR BAFFLE TO OIL COOLER
150
GROMMET OIL COOLER TO BRACKET
350
OIL LINE FEED
360
FITTING
370
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
380
SEAL RING OIL LINE TO OIL FILTER
390
HEXAGON HEAD BOLT LINE MOUNTING M6X10
400
OIL LINE RETURN LINE TO HEAT EXCHANGER
410
FITTING
420
RUBBER RING
430
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
440
SEAL RING OIL LINE TO OIL FILTER
450
BOLT BRACKET FASTENING STARTER WIRING HARNESS M7X16
460
CABLE TIE IONIC EXCHANGER 380X7.8MM
470
BRACKET COMPRESSOR TOP FRONT TO TIMING CASE
