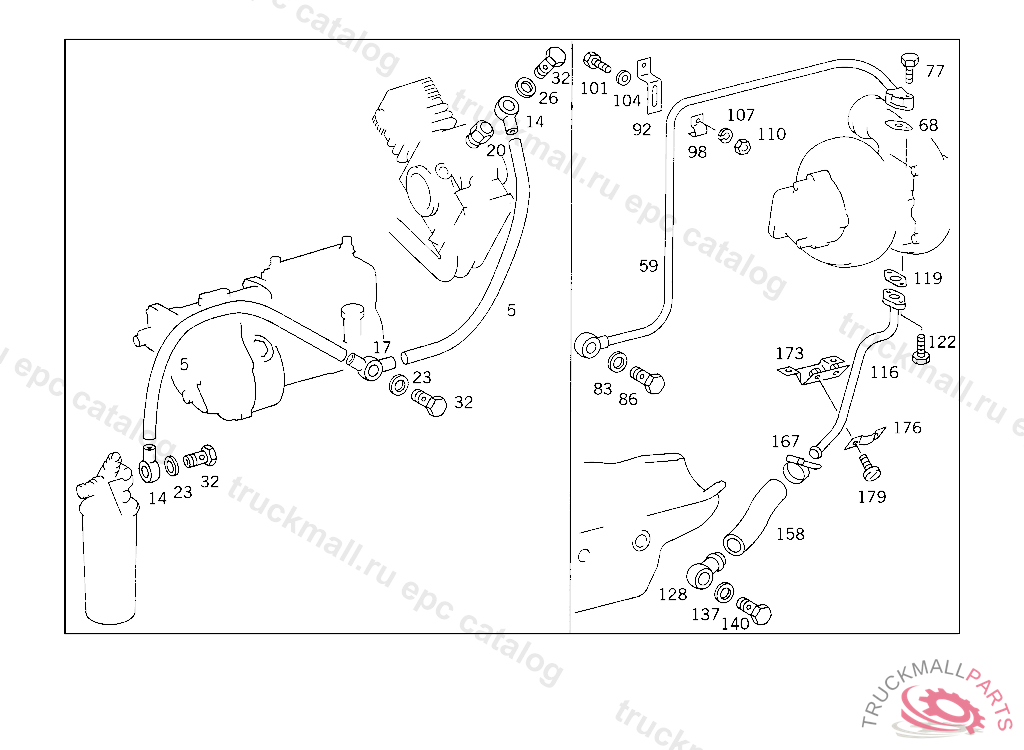

Поз.
Артикул
Описание
5
HOSE FROM FUEL TANK TO HEATER 4X8 MM, ORDER BY THE METER
14
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
17
BANJO UNION HOSE WIDTH, / I.D., 4/4/10 MM
17
DISTRIBUTOR HOSE WIDTH, 6 MM
20
THREADED UNION OIL LINE TO CONNECTOR
23
SEAL RING , Replaced By: N007603010110
23
SEAL RING PNEUMATIC VALVE
26
SEAL RING BRAKE CYLINDER STROKE INDICATOR
32
HOLLOW SCREW LINE CONNECTION
59
OIL LINE TURBOCHARGER OIL DELIVERY LINE,707767 UP TO ENGINE 351138 YEAR OF MANUFACTURE 1994
68
GASKET FLANGE TO TURBOCHARGER
77
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
77
SCREW , Replaced By: N304017008033
83
SEAL RING FUEL LINE TO FEED PUMP
86
HOLLOW SCREW FUEL LINE TO FEED PUMP
92
BRACKET FIXTURE OF OIL DELIVERY LINE TO 352 180 69 20
98
BEFESTIGUNGSSCHELLE. CLAMP LINES TO ENGINE
101
SCREW COVER PLATE TO BRACKET
104
WASHER COMPRESSED AIR LINE TO BRACKET
104
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
107
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
110
NUT BALL PIVOT TO LEVER
116
OIL LINE RETURN
119
GASKET OIL RETURN LINE TO TURBOCHARGER
122
SCREW STOP TO BATTERY CASE
128
OIL LINE SUCTION LINE TO OIL PUMP
137
SEAL RING FROM PIPE ELBOW TO AIR COMPRESSOR
140
HOLLOW SCREW AIR COMPRESSOR,CONNECTION: "2"
158
HOSE FUEL COMPENSATING, ORDER BY THE METER
167
CLAMP25-40X13 MM
167
CLAMP , Replaced By: A0069970490
167
LOOM TIE , Replaced By: N000000000668
173
BRACKET OIL RETURN LINE
176
CLAMP
179
SCREW
