Mercedes N900331008419 - ТЯГА

OM 362 LA 362.909

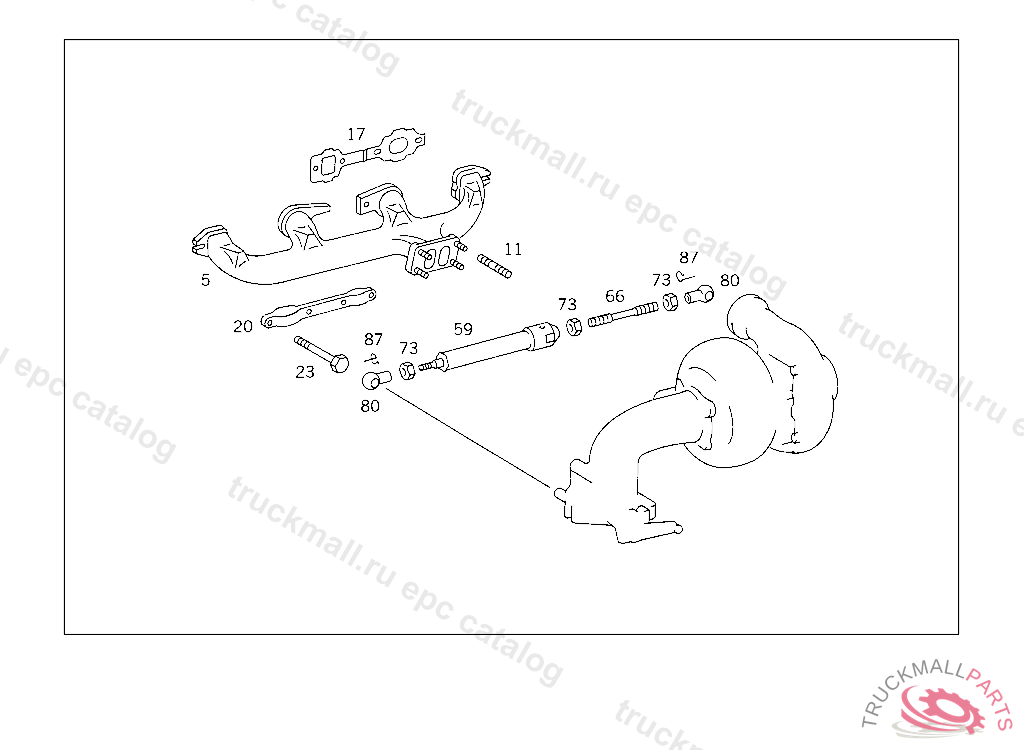

14 INTAKE AND EXHAUST MANIFOLDS - 030 EXHAUST MANIFOLD

Поз.
Артикул
Описание
5
A3521404909
EXHAUST MANIFOLD WITH STUDS
11
A0009906005
STUD CONNECTING PIPE TO EXHAUST MANIFOLD
17
A3521420480
GASKET EXHAUST MANIFOLD
20
A3521420912
CLAMPING PIECE
23
A0079900401
SCREW BRACKET TO INTAKE MANIFOLD, NOT USED
23
N000931010154
SCREW
23
N000931010346
SCREW PRESSURE LIMIT VALVE TO BRACKET M 10X115
59
A0004301326
CYLINDER LOCKING MECHANISM
66
N900331008419
PULL ROD BRAKE POWER REGULATOR CONTROL 200 MM, TO BE ADAPTED DURING ASSEMBLY
73
N304035008001
NUT
80
N071805013203
BALL SOCKET ROD TO BALL PIVOT
87
N071805013402
SECURING CLIP. CIRCLIP
