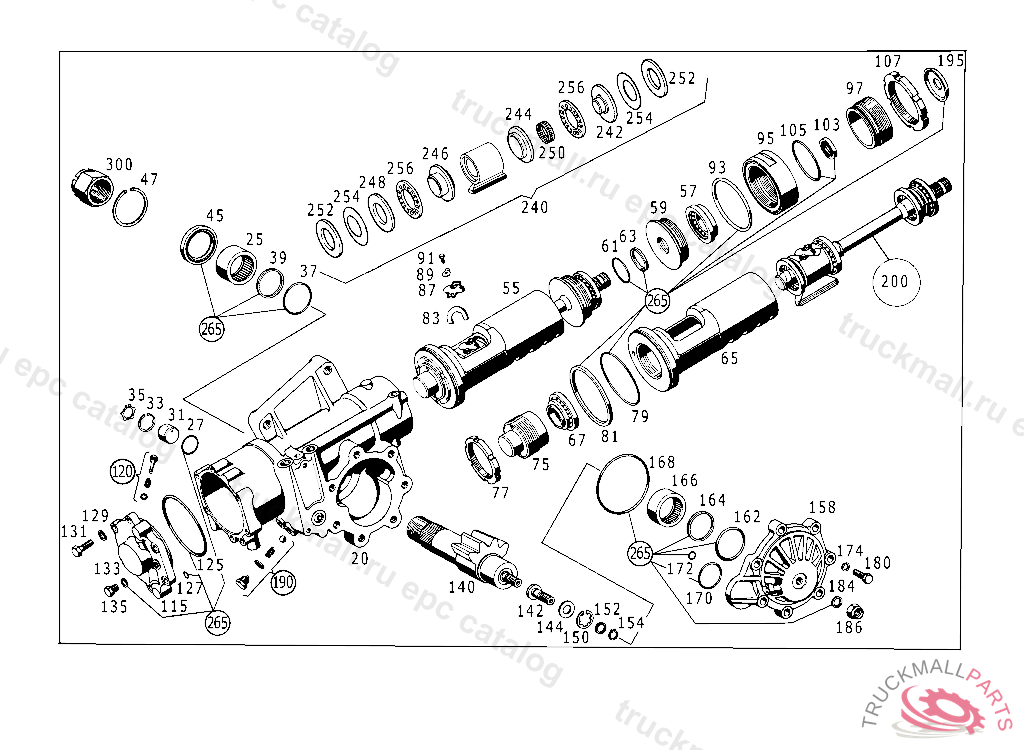

Поз.
Артикул
Описание
20
STEERING BOX WITH SLEEVE VALVE, 451,452,454,461,462,464 FROM STEERING 035681
25
NEEDLE BEARING STEERING SHAFT BEARING, 738939 WAS PART OF SA'S 19075 AND 31193 UP TO CHASSIS 738938
27
SEAL RING VALVE HOUSING SEALING 28X3 MM
31
COVER VALVE HOUSING SEALING, 10/50 FROM STEERING 0-716,20/60 FROM STEERUNG 1-875
31
COVER VALVE HOUSING SEALING, 10/50 FROM STEERING 036695,20/60 FROM STEERING 042412 10/50 UP TO STEERING 0-715,20/60 UP TO STEERING 1-874
31
COVER VALVE HOUSING SEALING, 10/50 FROM STEERING 036695,20/60 FROM STEERING 042412 10/50 UP TO STEERING 0-715,20/60 UP TO STEERING 1-874
33
LOCK VALVE HOUSING SEALING
35
LOCK VALVE HOUSING SEALING
37
SEAL RING STEERING WORM SECTOR SHAFT SEALING
39
SEAL RING STEERING WORM SECTOR SHAFT SEALING
45
SEAL RING STEERING WORM SECTOR SHAFT SEALING
47
LOCK RING DISC SUPPORT
55
PISTON WITH STEERING WORM AND STEERING NUT
57
ANGULAR CONTACT BEARING STEERING WORM
59
SCREW COLLAR INSIDE
61
SEAL RING INTERMEDIATE SPEED STOP
63
SEAL RING STEERING NUT BEARING
65
PISTON , 738939 WAS PART OF SA'S 19075 AND 31193 UP TO CHASSIS 738938
67
ANGULAR CONTACT BEARING STEERING NUT BEARING
75
COVER STEERING NUT BEARING
77
NUT STEERING NUT BEARING
79
SEAL RING STEERING NUT BEARING 102X3.5 MM
81
SEAL RING STEERING NUT BEARING
83
BALL GUIDE , 738939 WAS PART OF SA'S 19075 AND 31193 UP TO CHASSIS 738938 ALSO INCLUED IN REPAIR KIT 366 586 52 46
87
CLAMP BALL GUIDE TO PISTON, 738939 WAS PART OF SA'S 19075 AND 31193 UP TO CHASSIS 738938 ALSO INCLUED IN REPAIR KIT 366 586 52 46
89
LOCK BALL GUIDE TO PISTON
91
SCREW BALL GUIDE TO PISTON
93
SEAL RING STEERING NUT BEARING
95
SCREW COLLAR STEERING NUT BEARING
97
SCREW COLLAR OUTSIDE
103
SEAL RING STEERING NUT BEARING
103
SEAL RING , Replaced By: A0149976947
105
SEAL RING STEERING NUT BEARING 75X3 MM
107
GROOVED NUT STEERING NUT BEARING
107
NUT , Replaced By: A6173560026
115
STEERING BOX COVER BOTTOM
115
STEERING BOX COVER BOTTOM
120
REPAIR KIT CHECK VALVE IN BEARING COVER
125
SEAL RING STEERING NUT BEARING
127
SEAL RING BOX COVER 9X2.5 MM
129
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
131
SCREW ANGLE TO CROSS MEMBER M 10X30
133
SEAL RING LINE CONNECTION
135
SCREW PLUGM 12X1.5
135
SCREW PLUG , Replaced By: N000910012000
140
STEERG. WORM SECTOR SHAFT WITH SET SCREW
142
SCREW STEERING WORM SECTOR SHAFT, 738939 WAS PART OF SA'S 19075 AND 31193 UP TO CHASSIS 738938
144
SPACER WASHER AS REQUIRED 2.75 MM
144
SPACER WASHER AS REQUIRED 2.80 MM
144
SPACER WASHER AS REQUIRED 2.85 MM
144
SPACER WASHER AS REQUIRED 2.9 MM
144
SPACER WASHER AS REQUIRED 2.95 MM
144
SPACER WASHER AS REQUIRED 3.0 MM
144
SPACER WASHER AS REQUIRED 3.05 MM
150
LOCK STEERING SHAFT BEARING IN COVER
150
LOCK , Replaced By: A0049949441
152
THRUST WASHER STEERING SHAFT BEARING IN COVER
154
LOCK RING SHIFT LEVER TO PIVOT PIN
158
STEERING BOX COVER STEERING WORM SECTOR SHAFT,035455
162
SEAL RING STEERING WORM SECTOR SHAFT SEALING
164
SEAL RING STEERING WORM SECTOR SHAFT SEALING
166
NEEDLE BEARING STEERING SHAFT BEARING
168
SEAL RING COVER TO BOX, 738939 WAS PART OF SA'S 19075 AND 31193 UP TO CHASSIS 738938 ALSO INCLUDED IN GASKET KIT 366 586 54 46
170
SEAL RING STEERING WORM SECTOR SHAFT SEALING 41X3 MM
172
SEAL RING BOX COVER 9X2.5 MM
174
LOCK WASHER FITTING TO BRACKET
180
SCREW STRUT TO CROSS MEMBER
184
SEAL RING FUEL LINE TO FEED PUMP
186
NUT STEERING WORM SECTOR SHAFT TO COVER, 738939 WAS PART OF SA'S 19075 AND 31193 UP TO CHASSIS 738938
190
REPAIR KIT CHECK VALVE IN BOX
195
BOOT
195
BOOT , Replaced By: A3014620196
200
REPAIR KIT STEERING WORM WITH NUT
240
INSTALLATION KIT CONICAL SPRING WASHER CUSHIONING
242
BEARING RING
244
BEARING RING
246
BEARING RING
248
WASHER
250
NEEDLE BEARING
252
DISC SPRING
254
DISC SPRING
256
ROLLER BEARING
265
REPAIR KIT (GASKET KIT)
300
NUT PITMAN ARM TO STEERING BOX ASSEMBLY,5 386585
300
NUT , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 4 760470 THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0029905051
999
CAP , Replaced By: A0004642131
999
SEALING CORD , Replaced By: A0059970848
999
SCREW , Replaced By: N000000001149
999
SEAL RING , Replaced By: A0119977246
999
SEAL RING , Replaced By: A0119978046
999
SEAL RING , Replaced By: A0119977246
999
SEAL RING , Replaced By: A0119978046
999
COVER VALVE HOUSING SEALING, 10/50 UP TO STEERING 036694,20/60 UP TO STEERING 042411
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
STOP
999
BRACKET , Replaced By: A3142030084
999
LINE , Replaced By: A3634601124
999
GASKET , Replaced By: A0029970047
999
LINE FROM OIL PUMP TO STEERING
999
STEERING COLUMN BRACKET
999
LINE FROM OIL TANK TO PUMP 22 MM
999
LINE FROM OIL PUMP TO STEERING
999
LINE FROM OIL PUMP TO STEERING
999
STEERING SUPPORT
999
PITMAN ARM
999
BRACKET DELIVERY AND SUCTION LINES
999
STEERING BOX COVER STEERING WORM SECTOR SHAFT,035454
999
STEERING BOX ASSEMBLY
999
STEERING BOX COVER STEERING WORM SECTOR SHAFT, FROM STEERING 030000
999
STEERING BOX , 451,452,454,461,462,464 UP TO STEERING 035680, Replaced By: A3664607902, +001A3664607214
999
BALL GUIDE
999
HEXALOBULAR BOLT WIRE CABLE TO BRACKET
999
SCREW , Replaced By: A0029903712
999
COTTER PIN CYLINDER TO BRACKET
999
COTTER PINROCKINGER TYP 260 G140
999
COTTER PINROCKINGER,TYP 260 G150,260 G140
999
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
999
SCREW MOUNTING AND RAIL TO LEAF SPRING
999
SCREW BRACKET TO FRAME SIDE MEMBER
999
NUT BALL PIVOT TO LEVER
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
NUT BRACKET TO SIDE MEMBER
999
SCREW , Replaced By: N308676014013
999
SCREW STEERING BRACKET TO FRAME
999
SHEET METAL SCREW BRACKET TO CAB,5 906887
999
SCREW ROD TO TRANSFER CASE M 14X65
999
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
999
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
