Mercedes N000000001571 - БОЛТ М10

VL 4/55 D - 7,5 739.541

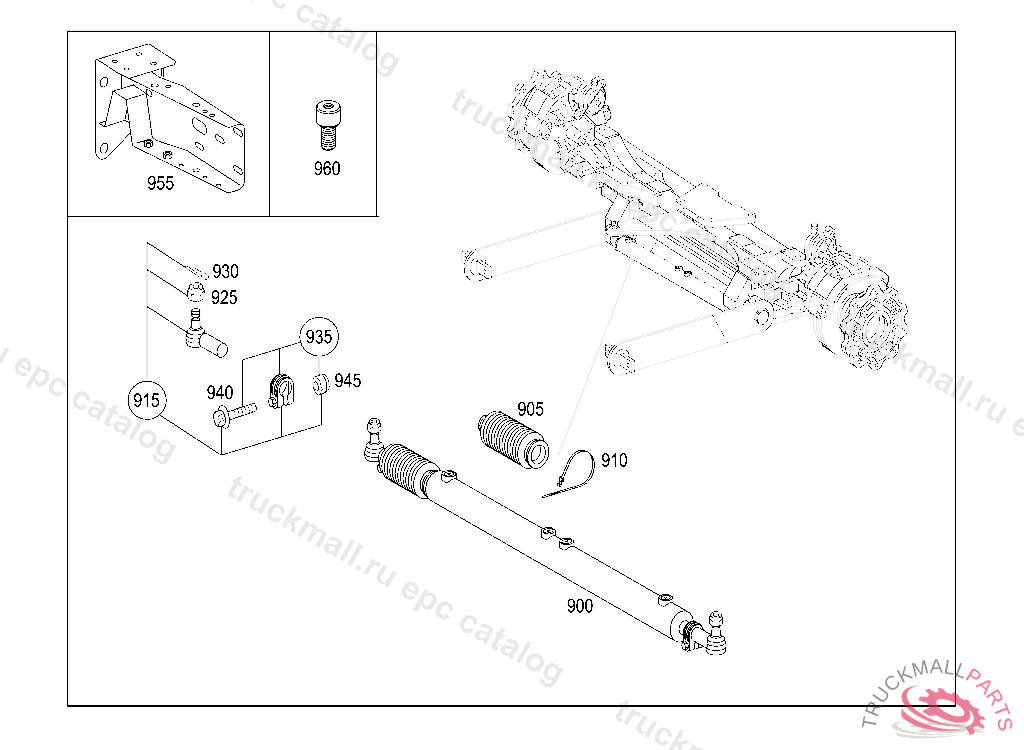

33 FRONT AXLE - 001 STEERED TRAILING AXLE, MAKE PAUL IL.12

Поз.
Артикул
Описание
900
A6294660192
CYLINDER (POWER CYLINDER) TRAILING AXLE
905
A0004632396
BOOT POWER CYLINDER
910
A0059971090
LOOM TIE BOOT 295X3.6MM
915
A0014606948
DRAG LINK END LONG 90MM
915
A0014607048
DRAG LINK END SHORT 80 MM
925
N000935024000
NUT CYLINDER TO BEARING BRACKET AND PITMAN ARM M24X1.5
930
N000094005045
COTTER PIN DRAG LINK TO STEERING ARM AND PITMAN ARM
935
A0004660677
CLAMP DRAG LINK END
940
N000000001571
HEXALOBULAR BOLT CLAMP MOUNTING M10X55
945
N304032010003
NUT BATTERY CABLE
955
QP15323100
REINFORCEMENT ENTRANCE, LEFT FRONT, TO BE ORDERED ONLY FROM MESSRS FA.PAUL-NUTZFAHRZEUGE GMBH&CO.KGD-94036 PASSAU DANZIGERSTRASSE 49
960
A0005401574
CONNECTOR ADAPTER
