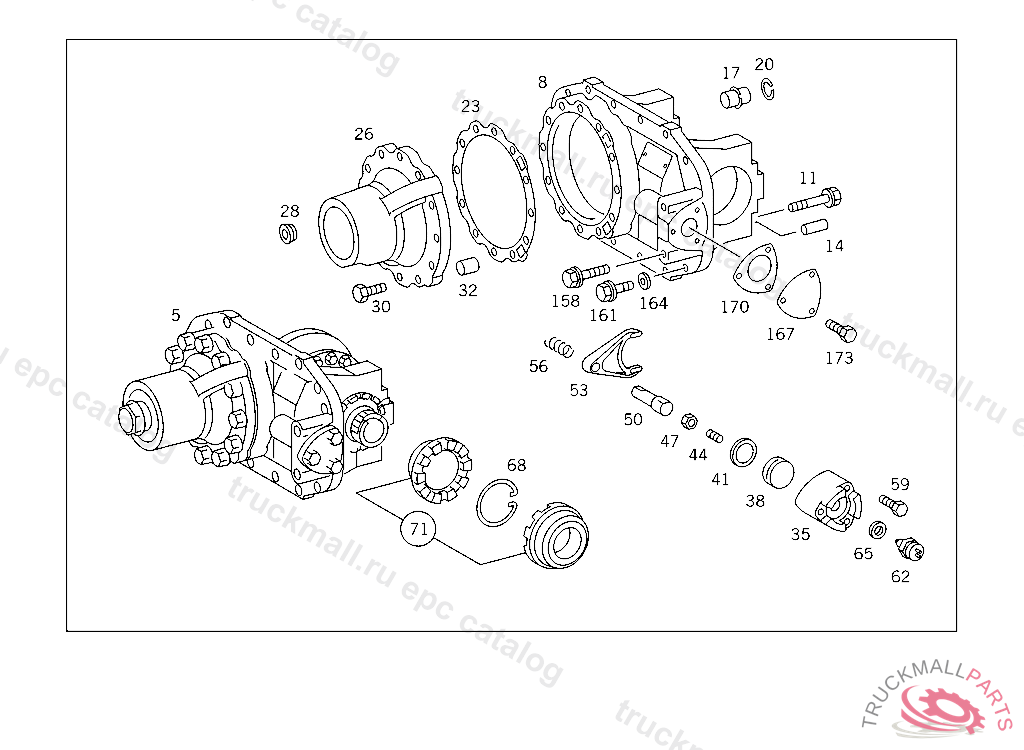

Поз.
Артикул
Описание
5
AXLE HOUSING LESS FLANGE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
AXLE HOUSING , Replaced By: A9423500603
8
AXLE HOUSING WITH BEARING CAP
8
AXLE HOUSING WITH BEARING CAP
11
SCREW BEARING COVER TO AXLE HOUSING
14
CYLINDRICAL PIN , Replaced By: N000007008101
14
CYLINDRICAL PIN
17
PIN AXLE HOUSING
20
SNAP RING
23
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.35 MM
23
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 1.00 MM
23
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 1.50 MM
23
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.50 MM
23
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.15 MM
23
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.20 MM
23
SPACER WASHER DIFFERENTIAL GEAR,AS REQUIRED 0.10 MM
26
HOUSING PINION HOUSING
30
SCREW , Replaced By: A9429901304
30
SCREW APPARATUS SUPPORT TO FRAME
32
SEAL RING PINION HOUSING TO AXLE HOUSING
158
WASHER DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, IN REQUIRED 4.69 MM
158
SCREW BRACKET TO BRACKET
161
SCREW , Replaced By: A3559900704
161
SCREW , Replaced By: A0069908301
161
HEXAGON HEAD BOLT COVER TO DIFFERENTIAL CASE M12X1.5X85
164
SEAL RING STEERING ARM TO STEERING KNUCKLE
167
COVER
170
GASKET SHIFTING CYLINDER TO INTERMEDIATE FLANGE
173
SCREW PIPE CLAMP
