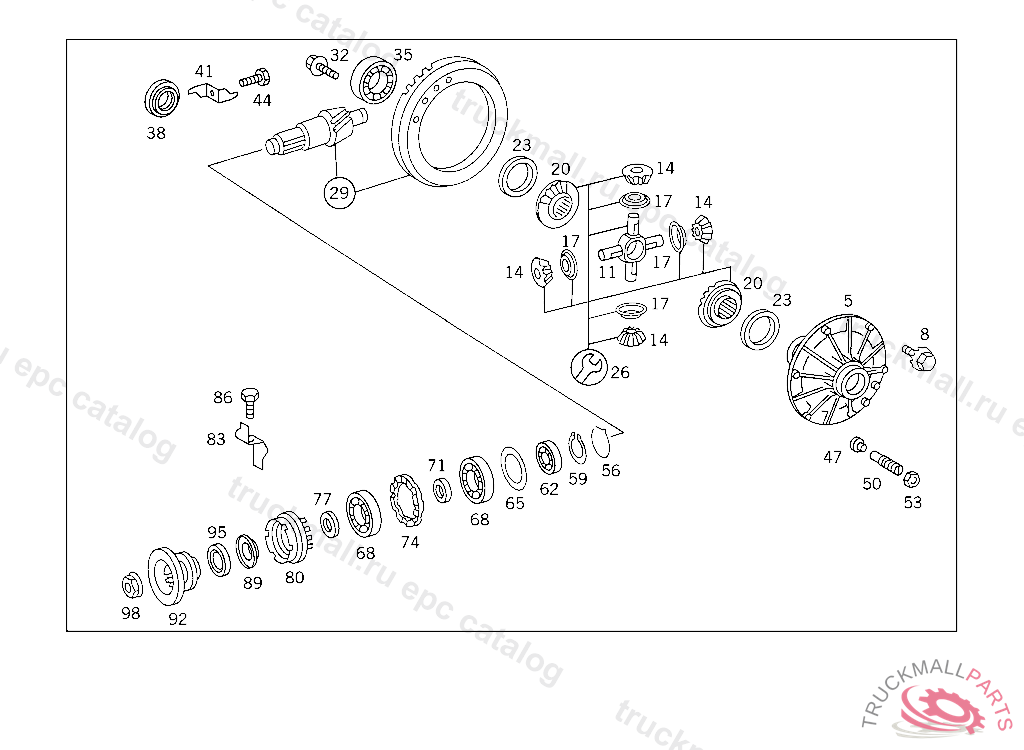

Поз.
Артикул
Описание
5
DIFFERENTIAL GEAR
8
SCREW COVER TO DIFFERENTIAL CASE M 14X45
8
SCREW COVER TO DIFFERENTIAL CASE M 14X55
11
DIFFERENTIAL SPIDER DIFFERENTIAL GEAR
14
DIFFERENTIAL PINION
17
SPHERICAL WASHER
20
SIDE GEAR
23
THRUST WASHER1,95 MM
26
REPAIR KIT DIFFERENTIAL GEAR
29
RING GEAR AND PINION RATIO: 40:11
29
RING GEAR AND PINION43:11
29
RING GEAR AND PINION43:11
32
SCREW RING GEAR TO DIFFERENTIAL CASE TO 318 350 02 27, UP TO REAR AXLE 154947, FROM REAR AXLE,SEE UNIT MICROFICHE 816,MODEL 743.4
32
SCREW RING GEAR TO DIFFERENTIAL CASE,2 135404
35
TAPERED ROLLER BEARING
35
TAPERED ROLLER BEARING
35
TAPERED ROLLER BEARING
38
SCREW COLLAR
41
LOCK , UP TO REAR AXLE 154947, FROM REAR AXLE,SEE UNIT MICROFICHE 816,MODEL 743.4
41
LOCK SCREW COLLAR
44
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
47
SLIDE
50
SET SCREW , UP TO REAR AXLE 321.0/1-058524 OR UP TO CHASSIS 002010 AND FOOTNOTE 8
53
NUT , Replaced By: N308675022001
53
HEXAGON NUT RING GEAR CHECK M22X1.5
56
SNAP RING
59
LOCK RING
62
CYLINDR. ROLLER BEARING
62
CYLINDR. ROLLER BEARING , 309.370-391 FROM CHASSIS 012169,309.4 FROM CHASSIS 085136
62
CYLINDR. ROLLER BEARING , 309.370-391 FROM CHASSIS 012169,309.4 FROM CHASSIS 085136
62
CYLINDR. ROLLER BEARING , 309.370-391 FROM CHASSIS 012169,309.4 FROM CHASSIS 085136
62
CYLINDR. ROLLER BEARING DRIVE PINION BEARING
65
SPACER WASHER0.10 MM
65
SPACER WASHER0.20 MM
65
SPACER WASHER0.50 MM
65
SPACER WASHER , Replaced By: A3143536652
68
TAPERED ROLLER BEARING
68
TAPERED ROLLER BEARING DRIVE PINION BEARING
71
SPACER RING
74
SPACER RING8.96 MM
74
SPACER RING DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, FRONT,AS REQUIRED 8.98 MM
74
SPACER RING9.00 MM
74
SPACER RING DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, IN REQUIRED 9.02 MM
74
SPACER RING9.04 MM
74
SPACER RING DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, IN REQUIRED 9.06 MM
74
SPACER RING9.08 MM
74
SPACER RING DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, IN REQUIRED 9.10 MM
74
SPACER RING9.12 MM
74
SPACER RING DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, IN REQUIRED 9.14 MM
74
SPACER RING9.16 MM
74
SPACER RING DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, FRONT,AS REQUIRED 9.18 MM
74
SPACER RING9.20 MM
74
SPACER RING9.22 MM
74
SPACER RING9.24 MM
74
SPACER RING DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, IN REQUIRED 9.26 MM
74
SPACER RING9.28 MM
74
SPACER RING DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, IN REQUIRED 9.30 MM
74
SPACER RING9.32 MM
74
SPACER RING DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, IN REQUIRED 9.34 MM
74
SPACER RING9.36 MM
74
SPACER RING DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, IN REQUIRED 9.38 MM
74
SPACER RING9.40 MM
74
SPACER RING DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, IN REQUIRED 9.42 MM
74
SPACER RING9.44 MM
74
SPACER RING DRIVE SHAFT BEVEL GEAR/CROWN WHEEL, FRONT,AS REQUIRED 9.46 MM
74
SPACER RING9.48 MM
74
SPACER RING9.50 MM
74
SPACER RING9.52 MM
74
SPACER RING9.54 MM
74
SPACER RING9.56 MM
77
SPACER RING
80
SCREW COLLAR
83
LOCK
86
SCREW PROTECTIVE PLATE TO EXHAUST PIPE
89
SEAL RING
92
FLANGE DRIVE
95
PROTECTIVE PLATE
98
NUT
