HL 4/038 D-10
745.780
35 REAR AXLE

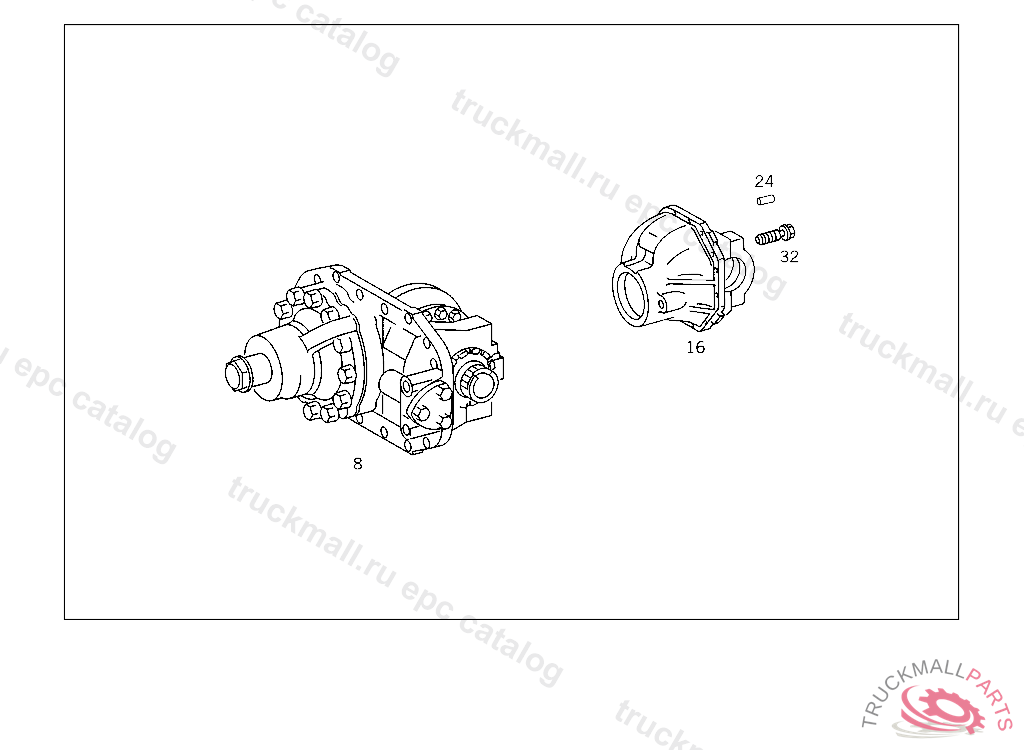

001 REAR AXLE RING GEAR AND PINION ASSEMBLY IL.1

Mercedes N007603020103 - КОЛЬЦО

HL 4/038 D-10 745.780

35 REAR AXLE - 001 REAR AXLE RING GEAR AND PINION ASSEMBLY IL.1

Поз.
Артикул
Описание
8
A3013500003
AXLE HOUSING , Replaced By: A6753509220
8
A3013500103
AXLE HOUSING , Replaced By: A6753508620
8
A3013500203
AXLE HOUSING , Replaced By: A6753508720
8
A3013500303
AXLE HOUSING , Replaced By: A6753509420
8
A3013500403
AXLE HOUSING , Replaced By: A6753509620
8
A3013500503
AXLE HOUSING , Replaced By: A6753508620
8
A3013500603
AXLE HOUSING , Replaced By: A6753509220
8
A3013500703
AXLE HOUSING , Replaced By: A6753509320
8
A3013500803
AXLE HOUSING , Replaced By: A6753508720
8
A3013500903
AXLE HOUSING , Replaced By: A6753508620
8
A3013501003
AXLE HOUSING , Replaced By: A6753509220
8
A3013501103
AXLE HOUSING , Replaced By: A6753509320
8
A3013501203
AXLE HOUSING , Replaced By: A6753508720
8
A3013501303
AXLE HOUSING , Replaced By: A6753508620
8
A3013501403
AXLE HOUSING , Replaced By: A6753509220
8
A3013501503
AXLE HOUSING , Replaced By: A6753508720
8
A3563500003
AXLE HOUSING , Replaced By: A6753509320
8
A3963501403
AXLE HOUSING , Replaced By: A6753508920
8
A6523501603
AXLE HOUSING , Replaced By: A6773500203
8
A6523501703
AXLE HOUSING , Replaced By: A6753509020
8
A6523501803
AXLE HOUSING , Replaced By: A6753509120
8
A6523502003
AXLE HOUSING , Replaced By: A6753508820
8
A6523502103
AXLE HOUSING , Replaced By: A6753508520
8
A6523502203
AXLE HOUSING , Replaced By: A6753509220
8
A6523502303
AXLE HOUSING , Replaced By: A6753509020
8
A6523502403
AXLE HOUSING , Replaced By: A6753509120
8
A6523502503
AXLE HOUSING , Replaced By: A6753508920
8
A6523502603
AXLE HOUSING , Replaced By: A6753508820, +001A3733500045
8
A6523502703
AXLE HOUSING , Replaced By: A6753508520, +001A3733500045
8
A6523502803
AXLE HOUSING , Replaced By: A6753509820
8
A6523502903
AXLE HOUSING , Replaced By: A6753509020
8
A6523503003
AXLE HOUSING , Replaced By: A6753509120
8
A6523503103
AXLE HOUSING , Replaced By: A6753508920, +001A6773500145
8
A6523503203
AXLE HOUSING , Replaced By: A6753508820, +001A6773500145
8
A6523503303
AXLE HOUSING , Replaced By: A6753508520, +001A6773500145
8
A6523503403
AXLE HOUSING , Replaced By: A6753509820
8
A6523505403
AXLE HOUSING , Replaced By: A6753509720
8
A6523505503
AXLE HOUSING , Replaced By: A6753509720
8
A6753508520
DIFFERENTIAL GEAR LESS TROUGH DRIVE AND FLANGE,RATIO: 38:8
8
A6753508620
DIFFERENTIAL GEAR. AXLE HOUSING LESS FLANGE 43:10
8
A6753508720
DIFFERENTIAL GEAR LESS FLANGE 47:12
8
A6753508820
DIFFERENTIAL GEAR LESS FLANGE 47:9
8
A6753508920
DIFFERENTIAL GEAR LESS FLANGE 41:7
8
A6753509020
DIFFERENTIAL GEAR LESS FLANGE 48:7
8
A6753509120
DIFFERENTIAL GEAR LESS FLANGE 43:7
8
A6753509220
DIFFERENTIAL GEAR LESS FLANGE 44:12
8
A6753509320
DIFFERENTIAL GEAR. AXLE HOUSING LESS FLANGE 40:12
8
A6753509420
DIFFERENTIAL GEAR LESS FLANGE 46:15
8
A6753509520
DIFFERENTIAL GEAR LESS FLANGE 40:12
8
A6753509620
DIFFERENTIAL GEAR LESS FLANGE 38:8
8
A6753509720
DIFFERENTIAL GEAR. AXLE HOUSING LESS FLANGE
8
A6753509820
DIFFERENTIAL GEAR LESS FLANGE 47:12
8
A6773500003
AXLE HOUSING , Replaced By: A6753509720
16
A3003500003
AXLE HOUSING WITH BEARING CAP
16
A6523500803
AXLE HOUSING WITH BEARING CAP
24
N000007010202
CYLINDRICAL PIN INTERMEDIATE GEAR
32
A6529902404
SCREW BEARING COVER TO AXLE HOUSING
999
A1539970230
SCREW PLUG OIL PASSAGE,REAR
999
A6523530191
PROTECTIVE PLATE SEAL
999
N007603020103
SEAL RING TEMPERATURE GAUGE SENDER UNIT
