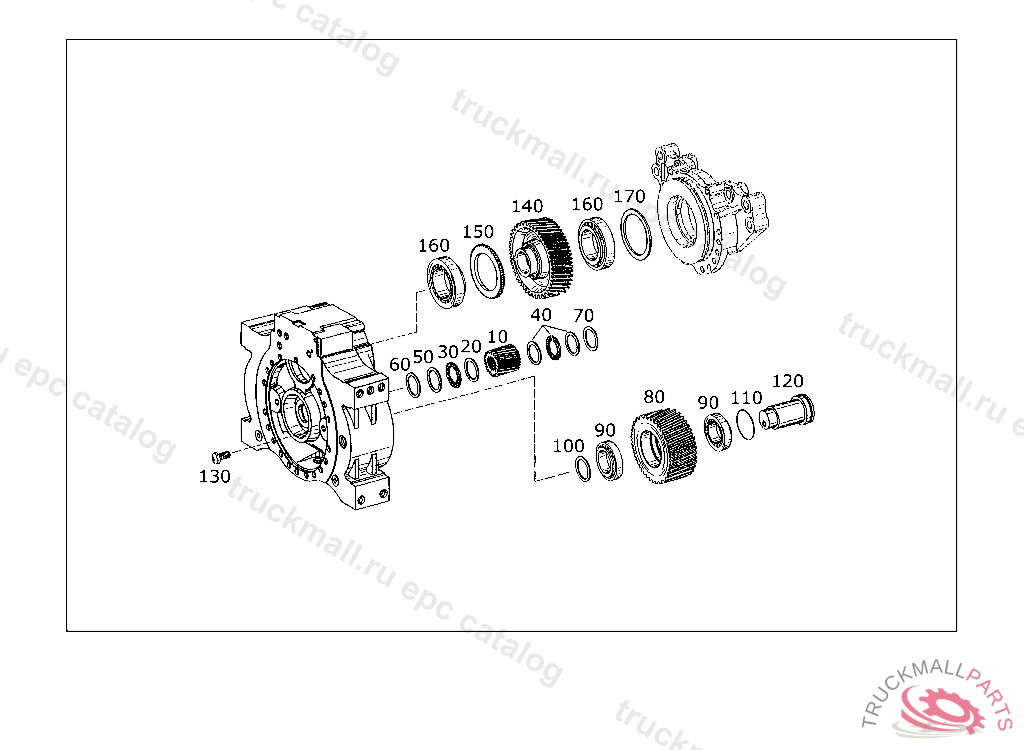

Поз.
Артикул
Описание
10
DRIVE GEAR NUMBER OF TEETH: 21,31430
10
DRIVE GEAR NUMBER OF TEETH: 21,31431
20
WASHER DRIVE GEAR
30
ROLLER ASSEMBLY DRIVE GEAR
30
ROLLER ASSEMBLY DRIVE GEAR
40
CYLINDR. ROLLER BEARING DRIVE GEAR
40
CYLINDR. ROLLER BEARING , Replaced By: A0109810001
50
WASHER DRIVE GEAR
50
WASHER DRIVE GEAR
60
DISC SPRING DRIVE GEAR
70
DISC SPRING DRIVE GEAR
80
INTERMEDIATE GEAR NUMBER OF TEETH: 61
90
TAPERED ROLLER BEARING REAR FLANGE
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 2.10 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 3.05 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 2.15 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 3.20 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 2.20 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 3.15 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 2.50 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 2.95 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 3.40 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 3.45 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 3.35 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 2.05 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 3.65 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 3.60 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 1.95 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 2.40 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 2.35 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 2.25 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 1.90 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 3.25 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 2.75 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 3.70 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 2.00 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 2.30 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 3.10 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 2.60 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 2.45 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 2.55 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 2.90 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 2.80 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 3.00 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 2.65 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 2.85 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 3.30 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 3.50 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 2.70 MM
100
WASHER INTERMEDIATE GEAR,AS REQUIRED 3.55 MM
110
SEAL RING PIVOT PIN
120
PIN INTERMEDIATE GEAR BEARING
130
SCREW PIN TO HOUSING M14X35
130
SCREW REINFORCEMENT TO REAR PART
140
DRIVEN GEAR , Replaced By: A0003531115
140
DRIVEN GEAR PORTAL DRIVE
150
SENDER UNIT (MEASURING RING) ANTI-LOCK BRAKING SYSTEM
160
CYLINDR. ROLLER BEARING OUTPUT GEAR MOUNTING
170
WASHER DRIVEN GEAR,AS REQUIRED 1.73 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.97 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.43 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.70 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 2.03 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.34 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.67 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 2.06 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.88 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.31 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.22 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.91 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.49 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.94 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.76 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.58 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.28 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.52 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.25 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.61 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.40 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 2.09 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.82 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 2.00 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 2.21 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.64 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.79 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.37 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 2.12 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 2.15 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.55 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.46 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.19 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 2.18 MM
170
WASHER DRIVEN GEAR,AS REQUIRED 1.85 MM
999
WASHER DRIVE GEAR
999
TAPERED ROLLER BEARING INTERMEDIATE GEAR BEARING
