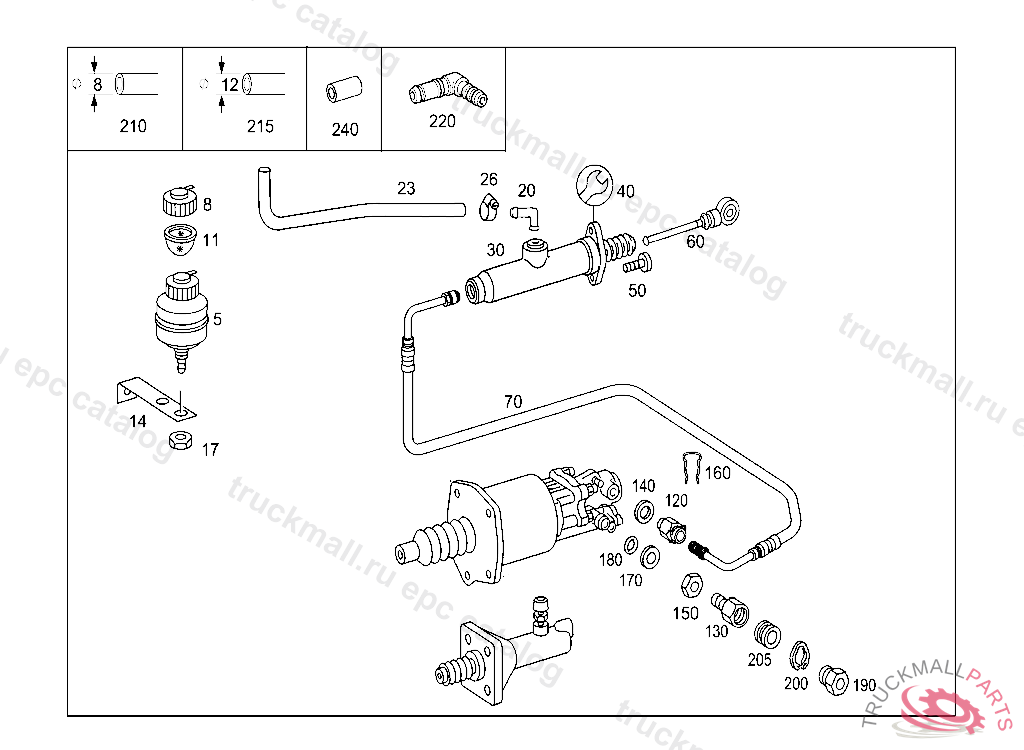

Поз.
Артикул
Описание
5
RESERVOIR FLUID RESERVOIR
5
RESERVOIR (RESERVOIR)
8
FILLER CAP
11
STRAINER
14
BRACKET
17
NUT BRACKET TO SIDE MEMBER
20
INTERMEDIATE PIECE , Replaced By: A0002950036
23
BRAKE HOSE , Replaced By: A6889978282
23
HOSE FROM RESERVOIR TO MASTER CYLINDER, ORDER BY THE METER
26
CLAMP LINE CONNECTION
30
MASTER CYLINDER CLUTCH M14X1,D 561822
30
CLUTCH MASTER CYLINDER QUICK-RELEASE
40
REPAIR KIT CLUTCH MASTER CYLINDER TO 388 295 72 06
50
HEXALOBULAR BOLT CLAMP ON BRACKET M6X30
50
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
60
ROD CLUTCH MASTER CYLINDER TO CLUTCH PEDAL,D 561822
60
ROD CLUTCH MASTER CYLINDER TO CLUTCH PEDAL,D 561822
70
CLUTCH HOSE MASTER CYLINDER TO CLUTCH BOOSTER 10100 MM
70
HOSE MASTER CYLINDER TO CLUTCH BOOSTER 9850 MM, Replaced By: A3682951035
120
FITTING PARTS KIT
120
FITTING CLUTCH HOSE M14X1 MM
130
FITTING QUICK-RELEASE VALVE
140
SEALING RING
140
SEAL RINGTO 000 553 03 05,000 553 18 05,
150
NUT WEAR INDICATOR
160
LOCK CLUTCH HOSE
170
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
170
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
170
THRUST RING LOCKING VALVE
180
SEAL RING22.00X2.00 MM,TO 000 260 68 57,
180
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
190
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
190
SCREW. UNION SCREW , Replaced By: A0009973734
200
LOCK , Replaced By: A0009945448
205
SEAL RING , Replaced By: A0009940747
210
PLASTIC PIPE8X6 MM, ORDER BY THE METER
215
PLASTIC PIPE FRONT AXLE PNEUMATIC SUSPENSION 12X9 MM, ORDER BY THE METER
220
ELBOW FITTING , Replaced By: A0049905371
220
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16, 9 MM, VOSS 232
240
INSULATING HOSE
240
INSULATING HOSE , ORDER BY THE METER
