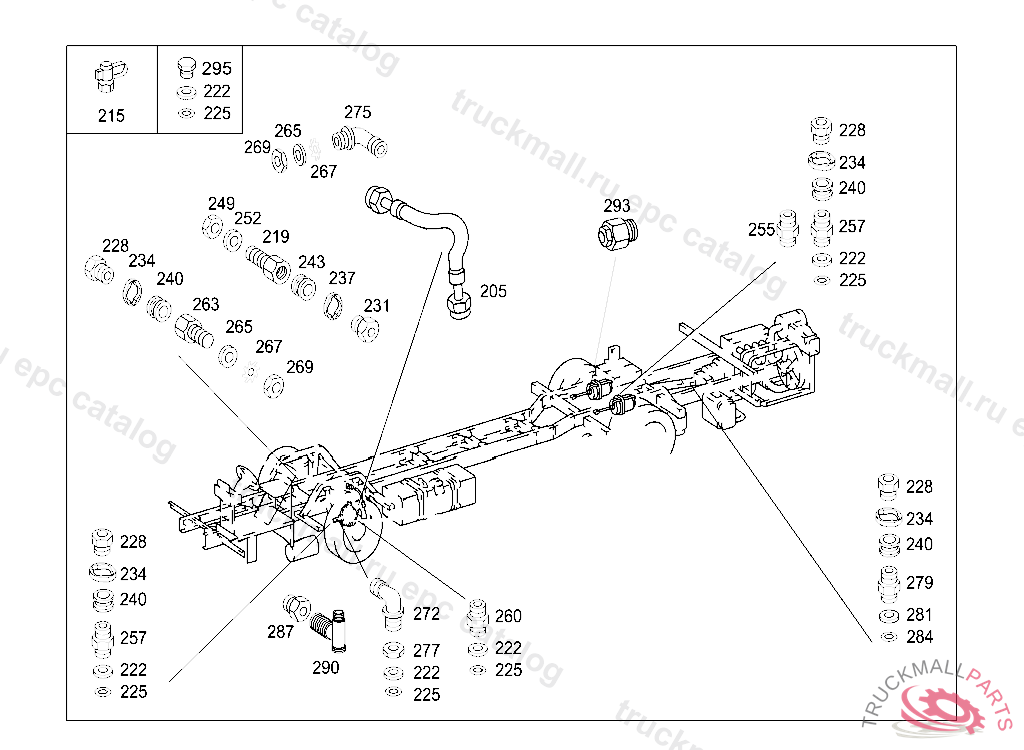

Поз.
Артикул
Описание
205
BRAKE HOSE AT TRISTOP CYLINDER
215
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
215
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
215
TEST CONNECTION
215
TEST CONNECTION TIRE INFLATING CONNECTION KNORR
219
ADAPTER FITTING TEST CONNECTION
222
THRUST RING LOCKING VALVE
222
THRUST RING LOCKING VALVE TO TRAILER CONTROL VALVE,CONNECTION: "42"
222
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
225
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
228
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M 22, VOSS 232
228
SCREW. UNION SCREW LINE CONNECTION
231
UNION SCREW COMPRESSED-AIR-LINE PLUG-CONNECTION M16 ,VOSS 232
231
SCREW. UNION SCREW , Replaced By: A0009973734
234
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
237
LOCK , Replaced By: A0009945448
240
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
243
SEAL RING , Replaced By: A0009940747
249
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
249
NUT ,D 091466
252
WASHER SUPPORT TO FRAME,D 127794
255
CONNECTOR LEFT AND RIGHT COMBINATION CYLINDERS, CONNECTION: "11,12"
257
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
260
FITTING QUICK BREATHER VALVE,REAR, CONNECTION: "23"
260
FITTING DELIVERY LINE TO PUMP
260
SCREW-IN FITTING OIL LINE CONNECTION
263
ADAPTER FITTING LINE CONNECTION TO ENGINE
265
WASHER COILED TUBE TO BRAKE LINE COUPLING SUPPORT
265
WASHER PULLEY TO AIR COMPRESSOR, FROM ENGINE 238226 YEAR OF MANUFACTURE 1992
267
TOOTHED WASHER SENDER UNIT TO BRACKET
269
NUT BRACKET TO SIDE MEMBER
272
ELBOW FITTING DIAPHRAGM CYLINDER,CONNECTION: "1,11"
277
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
279
FITTING LINE CONNECTION
279
FITTING AIR RESERVOIR,CONNECTION: "15",5 433280
281
O-RING CHECK VALVE TO AIR RESERVOIR
284
THRUST RING CHECK VALVE TO AIR RESERVOIR
287
FITTING 2/2-WAY VALVE TO BRACKET
290
T-FITTING DIAPHRAGM CYLINDER,CONNECTION: "11",5 272559
