Поз.
Артикул
Описание
5

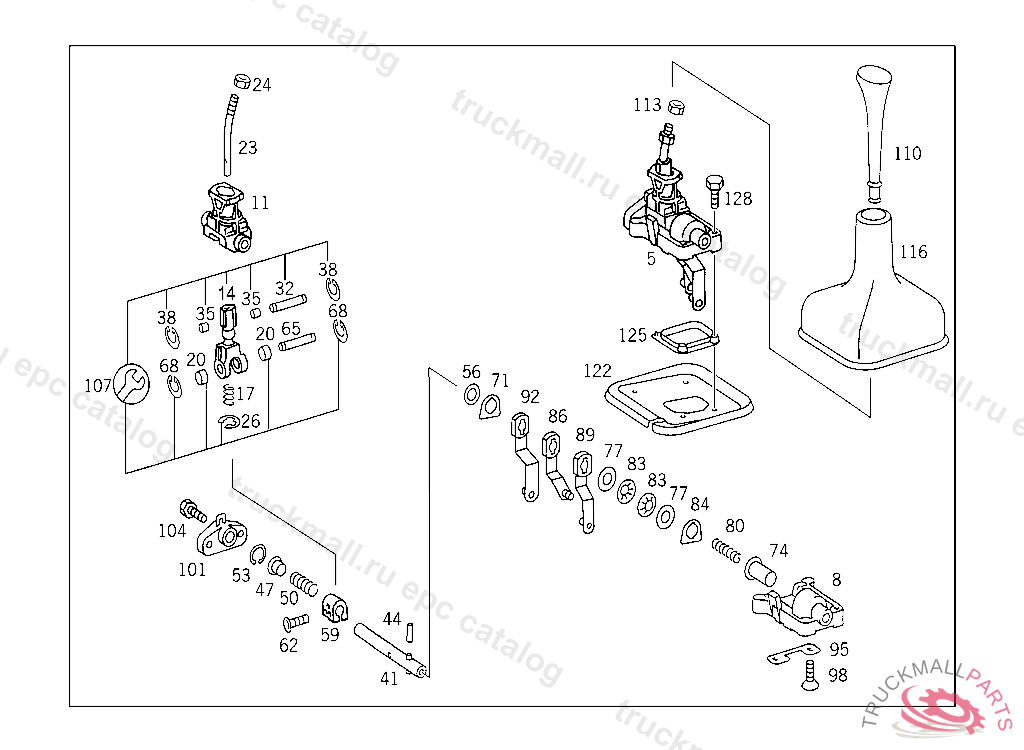

SHIFT MECHANISM
5
SHIFT MECHANISM
8
BEARING BRACKET ,B 236460
8
BEARING BRACKET
11
BRACKET
11
BRACKET , Replaced By: A2022670161
14
YOKE , NO LONGER AVAILABLE INDIVIDUALLY,BUT ONLY IN REPAIR KIT
17
SPRING SHIFT LEVER
20
BUSHING
20
BUSHING , Replaced By: A1402670450
23
SHIFT LEVER
23
SHIFT LEVER , USED WITH TRANSMISSION: GL 76/27, 717.443,445
24
NUT
26
LOCK PLATE PUSH ROD TO CLUTCH PEDAL
32
PIN
35
BUSHING
38
LOCK PLATE
41
SHIFTING TUBE FOUR-GATE SHIFT, 124.0,124.1 : F 063053 124.2,124.3 : F 079077
41
SHIFTING TUBE
44
PIN
47
WASHER SHIFTING TUBE
50
SPRING SHIFTING TUBE
50
SPRING
53
SNAP RING SHIFTING TUBE
56
SPACER WASHER , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A6732670052
59
STOP
62
SCREW
65
PIN
68
LOCK
71
WASHER , 124.0,124.1 : F 063053 124.2,124.3 : F 079077
71
WASHER , 124.0,124.1 : A 658915 124.2,124.3 : A 775522 ALSO INSTALLED ON : A 775938,A 776648,A 776991
74
BUSHING , Replaced By: A1292670050
74
BUSHING , 124.0,124.1 : F 063053 124.2,124.3 : F 079077
77
SPACER WASHER , 124.0,124.1 : F 063053 124.2,124.3 : F 079077
77
SPACER WASHER , Replaced By: A1292670052
80
SPRING , 124.0,124.1 : F 063053 124.2,124.3 : F 079077
80
SPRING
83
DISC SPRING
83
DISC SPRING , Replaced By: A1299930126
84
WASHER , 124.0,124.1 : F 063053 124.2,124.3 : F 079077
86
LEVER 1ST AND 2ND SPEED, 124.0,124.1 : F 063053 124.2,124.3 : F 079077
86
LEVER 2ND AND 3RD SPEED
89
LEVER 4TH AND 5TH SPEED
89
LEVER 3RD AND 4TH SPEED, 124.0,124.1 : F 063053 124.2,124.3 : F 079077
92
LEVER 5TH SPEED AND REVERSE
92
LEVER 1ST SPEED AND REVERSE, USED WITH TRANSMISSION: G1/18, 711.116,117
95
SLOTTED GATE , Replaced By: A2022670347
95
SLOTTED GATE , Replaced By: A2022670947
95
SLOTTED GATE
95
SLOTTED GATE
98
SCREW
101
BEARING
101
BEARING , Replaced By: A2022670005
104
SCREW , Replaced By: N910106006000, +001N000125006421
104
SCREW
107
REPAIR KIT SHIFT LEVER
107
REPAIR KIT SHIFT LEVER
110
HANDLE
110
HANDLE ,F 188132
113
NUT
116
BOOT OPENING DOWNWARDS 180 MM, 030047 900768
122
PLATE
125
GASKET
128
SCREW BEARING BRACKET TO TUNNEL
