Главная
›
Mercedes
›
CROSS-COUNTRY VEHICLE
›
G 55 AMG
›
463.246 TO CHASSIS 144225
›
52 SHEET METAL,AIR INTAKE
›
070 UNDERRUN PROTECTION
Mercedes N000125010532 - Диск

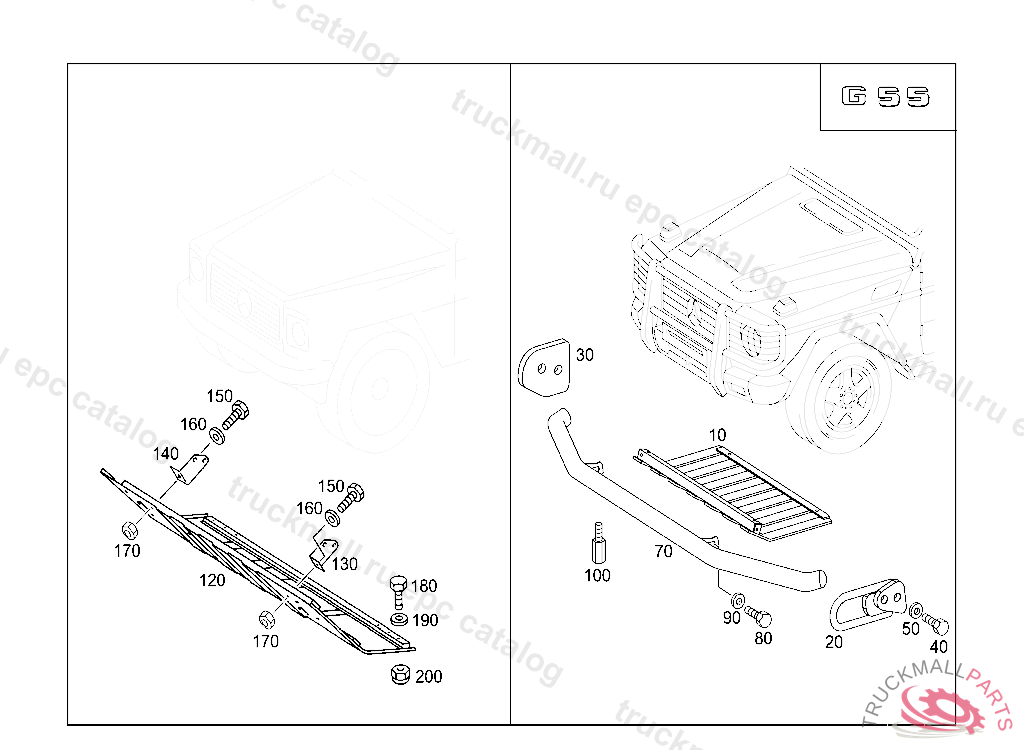

G 55 AMG 463.246 TO CHASSIS 144225
52 SHEET METAL,AIR INTAKE - 070 UNDERRUN PROTECTION
Поз.
Артикул
Описание
10
A4635240301
PROTECTIVE PLATE UNDERRUN PROTECTION
20
A4633150161
TOWING EYE
30
A4633150021
PLATE TOWING EYE, X 20407720121031
40
N304017012013
SCREW RUBBER MOUNTING TO ENGINE M 12X35
50
N000125013008
WASHER
70
A4635240401
PROTECTIVE PLATE
80
N910106010025
HEXAGON HEAD BOLTM10X20
90
N000125010532
WASHER RADIATOR TO RUBBER MOUNTING
100
A0009900016
THREADED PIN ATTACHMENT FOR UNDERRIDE PROTECTION
130
A4635240010
ANGLE. MOUNTING ANGLE LEFT
140
A4635240110
ANGLE. MOUNTING ANGLE RIGHT
150
N304017008034
SCREW BRACKET TO CROSS CONNECTION STRUT
160
N000125008443
WASHER EXHAUST MUFFLER TO STRAP
170
N910113008003
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
180
N304017010019
SCREW CLAMP TO EXHAUST PIPE
190
N000125010532
WASHER RADIATOR TO RUBBER MOUNTING
200
N910113010000
NUT STRAP TO BRACKET
