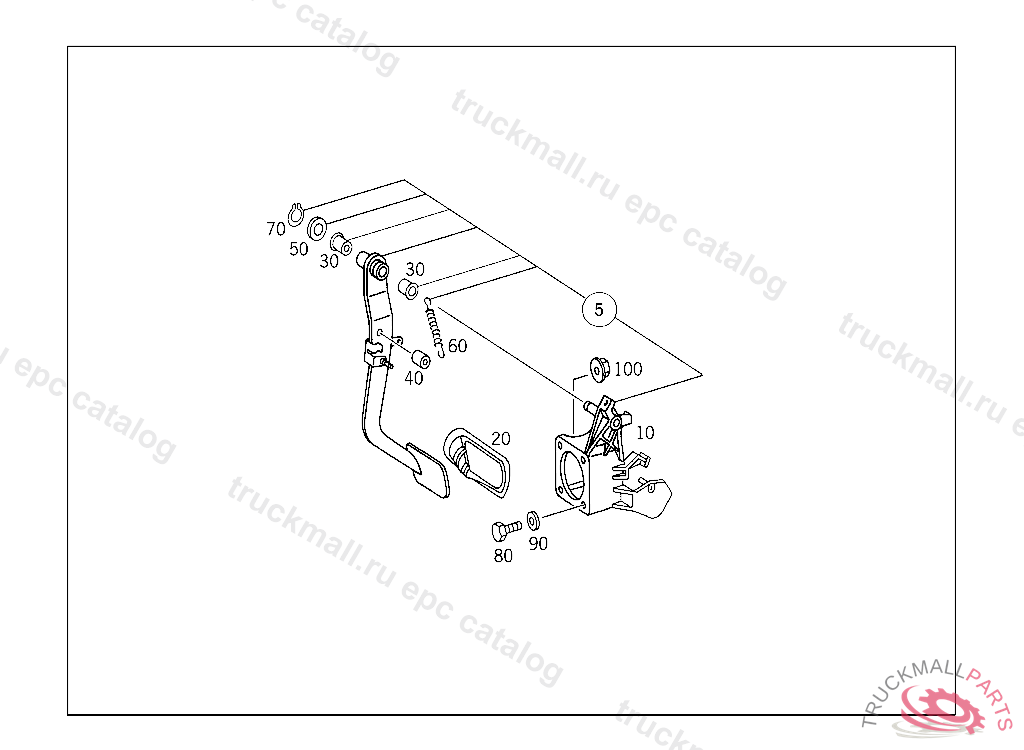

G 55 AMG - 463.246 TO CHASSIS 144225 - 29 PEDAL ASSEMBLY
Поз.
Артикул
Описание
5
PEDAL PEDAL ASSEMBLY
10
BEARING BRACKET , A 809595 F 894084 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE TO A 809594, F 894083 WITH CODE 800
20
PAD BRAKE PEDAL
30
BUSHING BRAKE PEDAL
40
BUSHING
50
WASHER PEDALS TO PIVOT PINS
60
SPRING BRAKE PEDAL RELEASE SPRING
70
LOCK STOP TO BEARING BRACKET
80
SCREW BRACKET TO CROSS CONNECTION STRUT
90
WASHER EXHAUST MUFFLER TO STRAP
100
NUT HORN TO BRACKET M8
