Mercedes N304017006018 - Болт

G 400 CDI 463.309 TO CHASSIS 144225

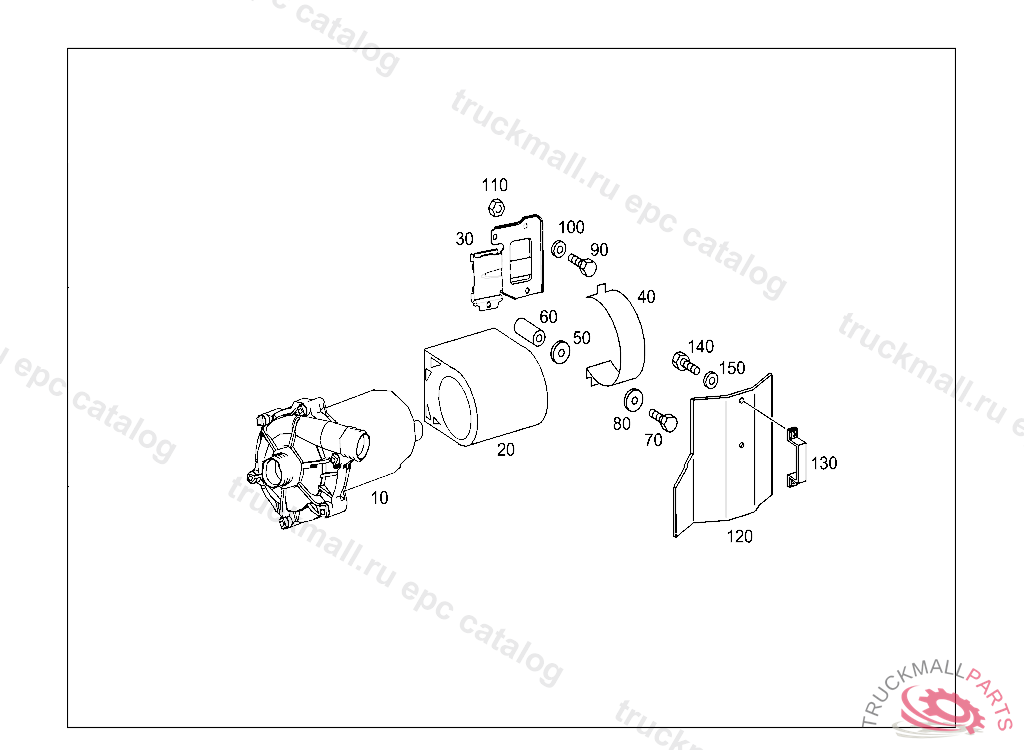

50 RADIATOR - 190 AIR PUMP,WATER PUMP AND DETACHABLE BODY COMPONENTS

Поз.
Артикул
Описание
10
A0005504883
WATER PUMP , Replaced By: A0005000386
20
A2209972881
GROMMET
30
A2205040640
BRACKET TO RIGHT RADIATOR
40
A2205040740
BRACKET
50
A4609900840
WASHER FEED & RETURN LINES TO TUNNEL
60
A1801550053
SPACER TUBE FRONT AXLE REGULATING SOLENOID VALVE
70
N304017006018
SCREW COVER PLATE TO COVER PLATE M 6 X 12
80
N000125006421
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
80
N000125006449
WASHER COMPRESSED AIR LINE TO BRACKET
90
N000933006123
SCREW OIL LINE TO CRANKCASE
100
N009021006208
WASHER COMPRESSED AIR LINE TO BRACKET
110
N913023006001
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
