Поз.
Артикул
Описание
5

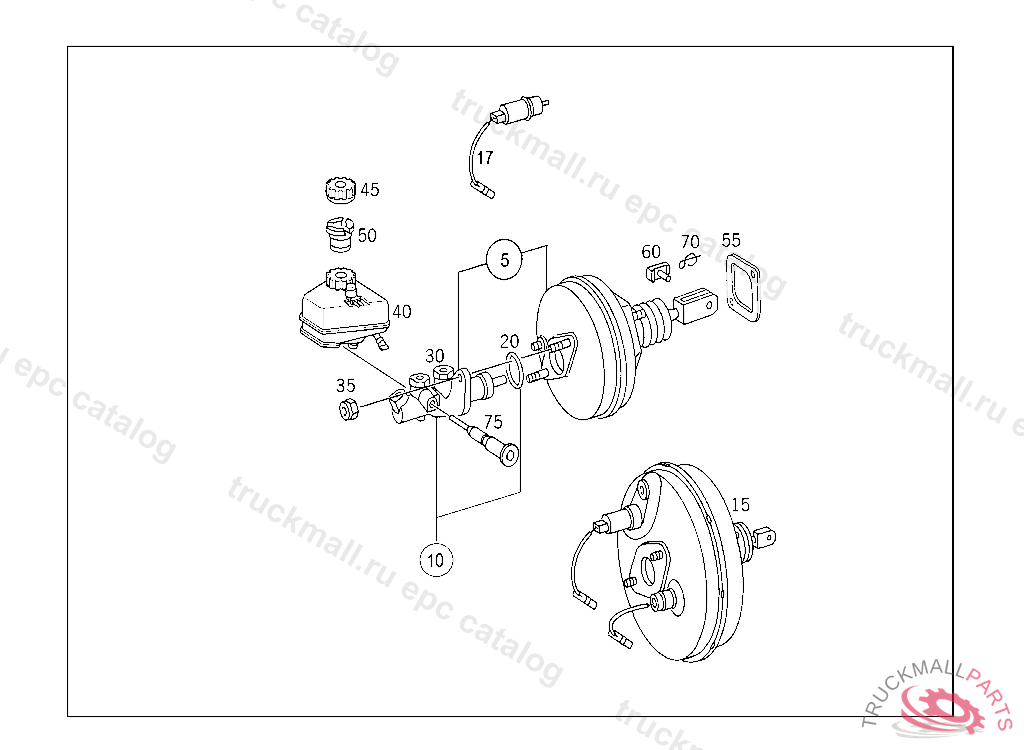

BRAKE BOOSTER ASSEMBLY , 127356
10
BRAKE MASTER CYLINDER
15
BRAKE BOOSTER ASSEMBLY PARTS KIT,F 187941 EXEPT FOR VEHICULES WITH CODE 800 ALSO INSTALLED IN VEHICLE FROM F 187942 WITH CODE 809
17
SENDER UNIT DIAPHRAGM POSITION SENSOR,BAS
20
SEAL RING
30
BUSHING
35
NUT
40
RESERVOIR , A 358833 ALSO INSTALLED ON A 331465 - A 358832 WITH CODE 057 ORDER WHEN USING CASE OR STRAINER
45
COVER , Replaced By: A2024300014
45
COVER
50
STRAINER
55
GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL TO 004 430 00 30/08 30
60
PIN BRAKE PEDAL TO BRAKE BOOSTER, B 843549
70
LOCK ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
75
TRUNNION SCREW. SCREW TWO-WAY VALVE,CONNECTION "1.1",4 428564
