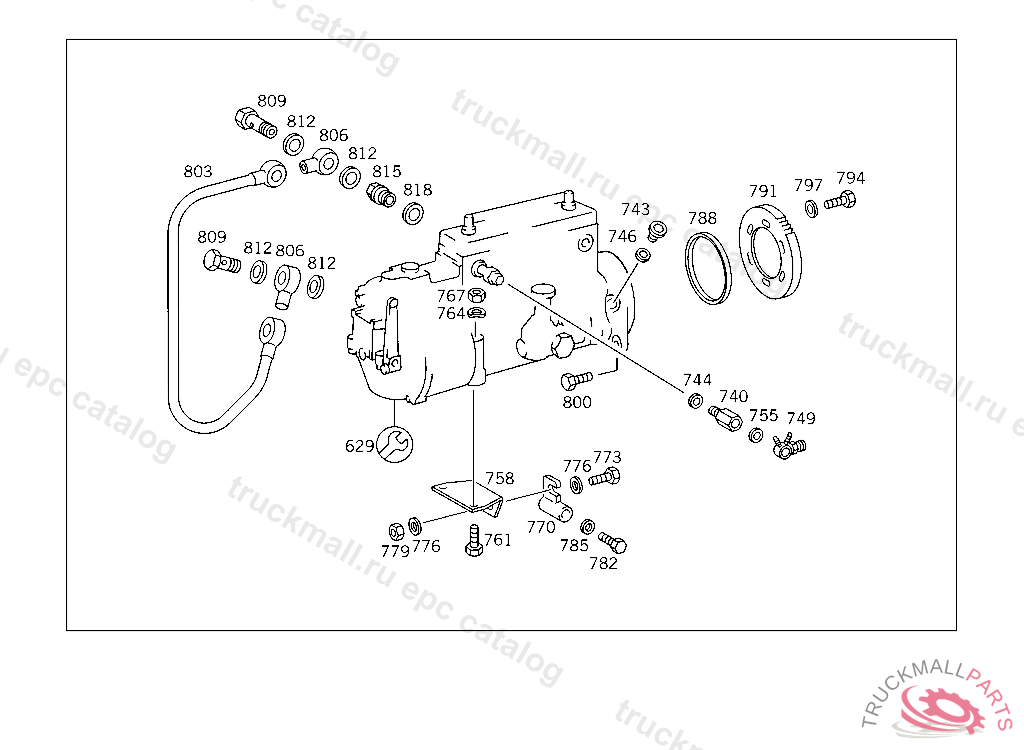

Поз.
Артикул
Описание
740
INTERMEDIATE PIECE EXTENSIBLE BRAKE VALVE,CONNECTIONS: "10,20"
743
SCREW PLUG OIL PASSAGE PLUG
744
SEAL RING INJECTION PUMP
746
SEAL RING INJECTION PUMP
749
INTERMEDIATE PIECE ,687750
755
SEAL RING VALVE TO VALVE,K 025179
758
BRACKET
761
SCREW BRACKET TO REAR CROSS MEMBER
764
SPRING WASHER RETAINING ANGLE TO INJECTION PUMP
767
NUT , 005,006,007,011,012,021,031,106,108,FROM CHASSIS A 012137,014,016,018 FROM CHASSIS A 007627
770
BRACKET INJECTION PUMP
770
BRACKET AT INJECTION PUMP
773
SCREW BEARING BRACKET TO SIDE MEMBER
776
WASHER BRACKET TO FRAME
779
HEX. NUT M 12 DIN 934-5 S. NUT , Replaced By: N000934012021
782
SCREW , Replaced By: A0029903804
785
WASHER BRACKET TO FRAME
788
SEAL RING EXPANSION PLUG TO CYLINDER CRANKCASE
791
DRIVE GEAR INJECTION PUMP
794
SCREW
797
WASHER , Replaced By: A4449905140
797
WASHER FROM TERMINAL BOX TO CHARGING AIR PIPE
800
SCREW ANGLE TO CROSS MEMBER M 10X30
803
LINE (CONNECTING PIPE) 10X2 MM
806
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
809
BANJO BOLT. HOLLOW SCREW
812
SEAL RING
815
CONNECTING PIPE CONNECTING PIPE TO INTAKE PIPE
818
SEAL RINGTO 376 131 74 01
999
EXPANSION PLUG
