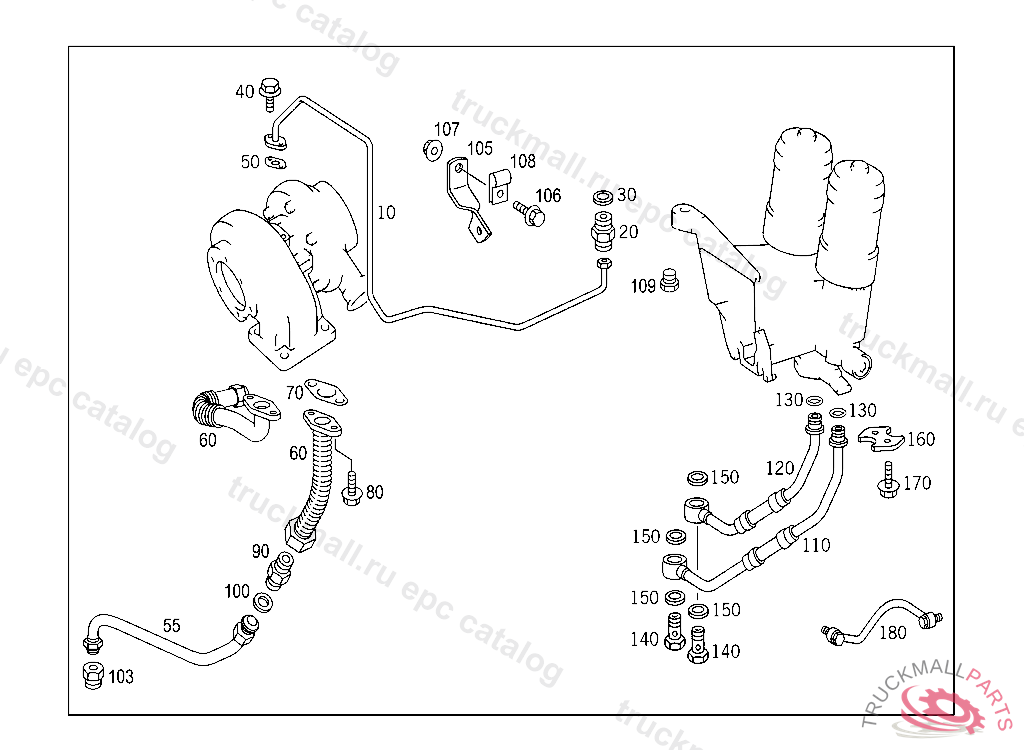

Поз.
Артикул
Описание
10
OIL LINE TURBOCHARGER OIL FEED,885665
10
OIL LINE TURBOCHARGER OIL FEED,885664
10
OIL LINE , FIRST EXHAUST STOCK OF OLD PARTS UP TO ENGINE 750334, Replaced By: A4471800520
20
FITTING FUEL FILTER TO SUPPORT
30
SEALING RING
40
HEXAGON HEAD BOLT CLAMP AT SUPPORTING RAIL M 8X30
50
GASKET FLANGE TO TURBOCHARGER
60
OIL LINE TURBOCHARGER OIL RETURN,885664
60
OIL LINE TURBOCHARGER OIL RETURN,885665
70
GASKET OIL RETURN LINE TO TURBOCHARGER
70
GASKET OIL RETURN LINE TO TURBOCHARGER
80
SCREW STOP TO BATTERY CASE
90
FITTING OIL RETURN LINE TO CYLINDER CRANKCASE
90
FITTING TURBOCHARGER OIL RETURN,955759
100
SEAL RING
110
OIL LINE FEED TO FILTER
120
OIL LINE RETURN TO OIL FILTER
130
SEAL RING
140
HOLLOW SCREW RADIATOR
150
SEALING RING ,760252
160
THRUST PIECE OIL LINE TO OIL COOLER
170
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
180
OIL LINE DRAINAGE OF OIL FILTER
